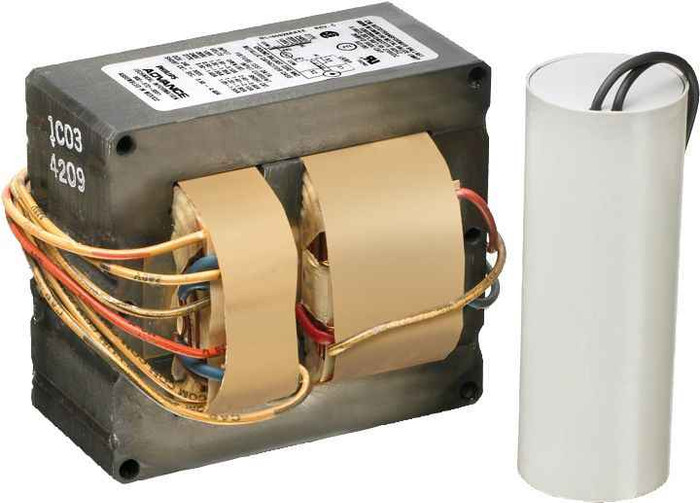

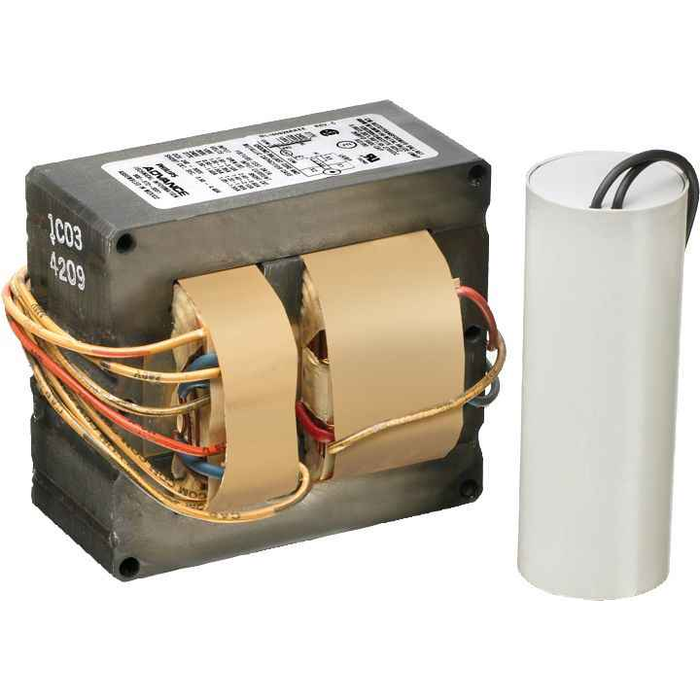

Advance Magnetic HID Ballast 250W HPS S50 ANSI Quad Kit with Pulse Start

Advance Magnetic HID Ballast 250W HPS S50 ANSI Quad Kit with Pulse Start

(No reviews yet) Write a Review

Model: 71A8271001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$423.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Magnetic HID Ballast 250W HPS S50 ANSI Quad Kit with Pulse Start

Professional HPS lighting ballast for reliable luminaire performance

The Advance Magnetic HID Ballast delivers dependable 250W HPS lamp operation with S50 ANSI code compatibility and pulse start technology. This quad kit features multi-voltage capability (120/208/240/277V) at 60Hz frequency, Class P thermal protection, and 0.9 power factor for efficient lighting system performance in professional applications.

Professional Features & Benefits

  • 250W Power Rating: Optimized for standard HPS lamp operation with consistent light output and energy efficiency.
  • Multi-Voltage Design (120/208/240/277V): Versatile installation compatibility across various electrical systems and applications.
  • S50 ANSI Code: Ensures proper lamp compatibility and standardized performance specifications.
  • Pulse Start Technology: Provides reliable lamp ignition and extended lamp life compared to probe start systems.
  • Class P Thermal Protection: Built-in safety feature prevents overheating and extends ballast service life.
  • 0.9 Power Factor: High efficiency operation reduces energy consumption and electrical system loading.
  • UL Listed & CSA Certified: Meets rigorous safety standards for professional lighting installations.

Technical Specifications

  • Ansi Code: S50
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: HPS
  • Microfarad: 35 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 250 WTT
  • Product Height: 4.2500 IN
  • Product Length: 4.7500 IN
  • Product Type: Magnetic HID
  • Product Wattage: 250 W
  • Product Weight: 12.500 Lbs
  • Product Width: 3.5000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PULSE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Commercial and Industrial Lighting Systems
  • Warehouse and Manufacturing Facilities
  • Parking Lot and Area Lighting
  • Street and Roadway Illumination
  • Security and Perimeter Lighting
  • Retrofit and Replacement Projects
  • Professional Lighting Maintenance

Why Choose Advance Quality?

Advance ballasts provide reliable performance with UL and CSA certifications, Class P thermal protection, and RoHS compliance. Made in USA with professional-grade construction, this magnetic HID ballast delivers consistent operation and long service life for demanding lighting applications.

Manufacturer Resources

Product Specs

Ansi Code:
S50
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
HPS
Microfarad:
35 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
250 WTT
Product Height:
4.2500 IN
Product Length:
4.7500 IN
Product Type:
Magnetic HID
Product Wattage:
250 W
Product Weight:
12.500 Lbs
Product Width:
3.5000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A8271001D – Frequently Asked Questions

1) What comes in the kit, and do I need a separate capacitor?
It's a quad kit, meaning the core-and-coil ballast plus the 35 MFD capacitor sized for this circuit. If you're replacing a kit piecemeal, the capacitor value to match is 35 MFD; a mismatched microfarad rating will pull the lamp off its rated operating point.
2) Will this magnetic ballast fit inside my existing pole-top or wall-pack ballast tray?
The core and coil measures 4.75 x 4.25 x 3.5 inches and weighs 12.5 pounds. Check the tray clearance against those three numbers before ordering, and confirm the mounting tray or housing is rated for the weight, which is typical for a 250W magnetic core-and-coil.
3) Can I dim this magnetic HID ballast with a standard dimmer?
No. The Advance 250W HPS magnetic ballast is not dimmable. For step-dimming or controlled area lighting you need an electronic HID ballast rated for dimming or a different fixture platform. Switching it on a dimmer will not control output and risks the gear.
4) What does pulse start mean on an HPS ballast, and is it different from probe start?
Pulse start uses a high-voltage igniter pulse to strike the arc rather than a probe electrode, which is standard practice for high pressure sodium. It gives more dependable ignition on cold starts and restrikes. Probe start is a metal halide arrangement, so a probe start MH ballast is not a substitute here.
5) Does this ballast meet the safety listings my facility inspector will ask for?
It is UL recognized and CSA certificated, and RoHS compliant. Thermal protection is Class P, the built-in cutout that opens on overtemperature, which is what most commercial fixture specs call for on an enclosed magnetic HID ballast. Built in the USA.
6) I'm standardizing ballast stock for a parking lot and warehouse retrofit. Is one part number enough?
For 250W HPS fixtures, yes, provided the lamps are S50. The quad-voltage taps mean one shelf item covers 120, 208, 240 and 277V fixtures across a site, which cuts the number of SKUs a maintenance crew has to carry. Order the Advance 71A8271001D and specify the tap at each fixture.
7) How much current will a 250W HPS ballast draw on my lighting circuit?
Power factor is 0.9, so it's a high power factor ballast and draws close to the lamp's real power rather than the inflated current of a normal power factor unit. For panel loading, plan on the 250W lamp load plus ballast losses at 0.9 PF on whichever tap you use, 120 through 277V.
