Advance 350W Metal Halide Magnetic Ballast M131 ANSI Quad Kit with Pulse Start

Advance 350W Metal Halide Magnetic Ballast M131 ANSI Quad Kit with Pulse Start

(No reviews yet) Write a Review

Model: 71A5993001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$495.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 350W Metal Halide Magnetic Ballast M131 ANSI Quad Kit with Pulse Start

Professional magnetic HID ballast for reliable metal halide lighting applications

The Advance 350W Metal Halide Magnetic Ballast delivers dependable performance for professional lighting installations. This M131 ANSI-rated ballast features pulse start technology and multi-voltage capability (120/208/240/277V) at 60Hz, making it suitable for diverse commercial and outdoor lighting applications. With UL listing, CSA certification, and RoHS compliance, this magnetic HID ballast provides the reliability professionals demand.

Professional Features & Benefits

  • 350W Power Rating: Optimized for high-intensity metal halide lamps delivering consistent illumination output
  • Multi-Voltage Operation (120/208/240/277V): Versatile installation compatibility across various electrical systems
  • Pulse Start Technology: Enhanced lamp starting performance and extended lamp life compared to probe start systems
  • M131 ANSI Code: Industry-standard compatibility ensuring proper lamp matching and performance
  • Class P Thermal Protection: Built-in safety protection prevents overheating and extends ballast service life
  • UL Listed & CSA Certified: Meets rigorous safety standards for professional installations
  • Outdoor Suitable Design: Weather-resistant construction for exterior lighting applications

Technical Specifications

  • Ansi Code: M131
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 22.5 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 350 WTT
  • Product Height: 4.2500 IN
  • Product Length: 4.7500 IN
  • Product Type: Magnetic HID
  • Product Wattage: 350 W
  • Product Weight: 12.550 Lbs
  • Product Width: 4.3000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PULSE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Commercial Building Exterior Lighting
  • Industrial Facility High Bay Lighting
  • Parking Structure Illumination
  • Sports Facility Lighting Systems
  • Warehouse and Distribution Centers
  • Retail Exterior Security Lighting
  • Municipal Street and Area Lighting

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL listing, CSA certification, and RoHS compliance. The robust magnetic design with Class P thermal protection ensures long-term performance in demanding commercial and outdoor environments, backed by USA manufacturing quality standards.

Manufacturer Resources

Product Specs

Ansi Code:
M131
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
22.5 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
350 WTT
Product Height:
4.2500 IN
Product Length:
4.7500 IN
Product Type:
Magnetic HID
Product Wattage:
350 W
Product Weight:
12.550 Lbs
Product Width:
4.3000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A5993001D – Frequently Asked Questions

1) Will the Advance 71A5993001D ballast run my 350W pulse start metal halide lamp?
It will run a single 350W pulse start metal halide lamp carrying the M131 ANSI code. Match the lamp's ANSI code on the lamp end stamp or carton before installing. An M131 ballast will not correctly start or run a probe start lamp of the same wattage, and it drives one lamp only.
2) Will this ballast physically fit inside my existing HID fixture housing?
The assembly measures 4.75 x 4.30 x 4.25 inches and weighs 12.55 lbs. Check the clear space in your ballast tray or pole base against those numbers, and make sure the mounting surface will carry 12.55 lbs, because on a pole-mounted shoebox that weight is usually the limiting factor rather than the footprint.
3) Can I use this 350W ballast on a 400W metal halide fixture?
No. A ballast has to match the lamp wattage and ANSI code, and this one is a 350W M131 unit for a single lamp. A 400W lamp on it will be underdriven and will not reach its rated color or life. For a 400W fixture you need the ballast matching that lamp's ANSI designation.

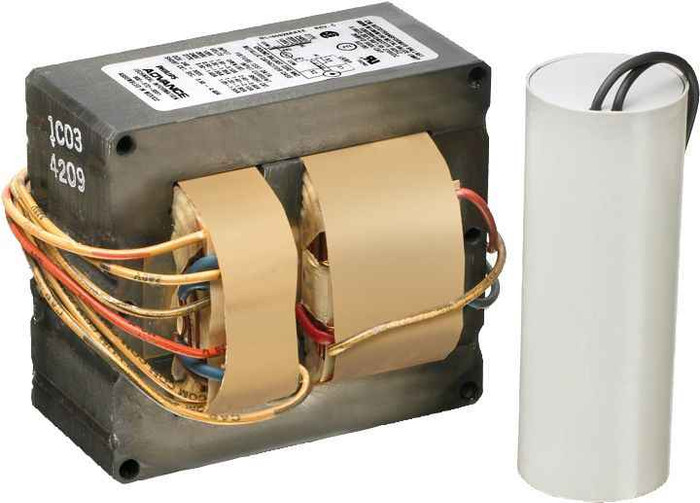

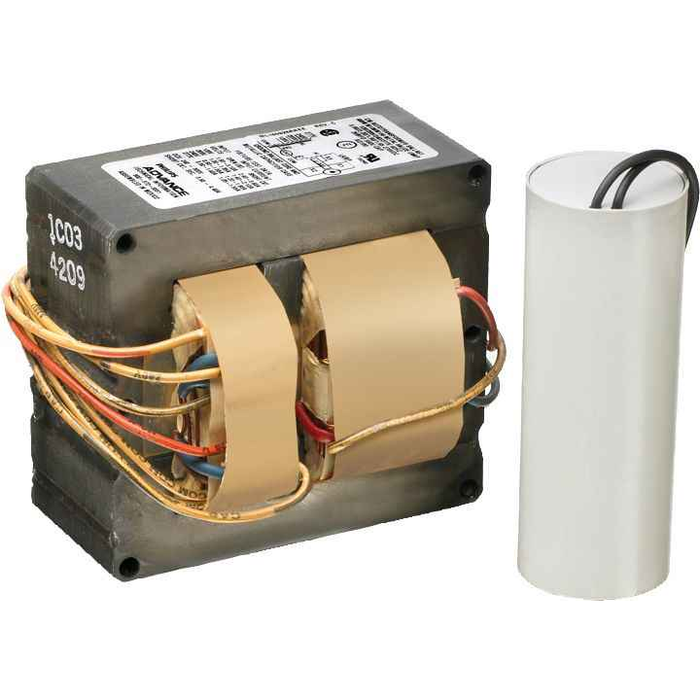

4) What comes in the Advance M131 quad kit, or do I need to buy the capacitor separately?
The kit is supplied as a ballast core-and-coil with the capacitor, rated at 22.5 MFD, as part of the assembly. If you are replacing only a failed capacitor on an existing 350W pulse start fixture, match that 22.5 MFD value rather than buying the full kit.
5) Can I put this metal halide ballast on a dimmer or occupancy sensor for energy savings?
No. This is a non-dimming magnetic HID ballast, and metal halide lamps also need a restrike cooldown after any interruption, so switching it off a motion sensor leaves an area dark for several minutes. If the facility wants dimming or instant restrike on a lighting retrofit, that is an LED conversion decision, not a ballast selection.
6) Is this Advance ballast rated for outdoor pole and wall pack fixtures?
Yes, it is built for exterior use and carries Class P thermal protection, which opens the circuit if the windings overheat and resets when they cool. That is what lets it sit in a sealed pole base or wall pack enclosure through summer heat. The ballast itself still has to be installed inside a suitable fixture enclosure, not exposed.
7) Does this ballast meet the UL and RoHS requirements our specs call for?
The Advance 350W M131 ballast is UL recognized, holds a CSA certificate for Canadian jobs, and is RoHS compliant. It is also made in the USA, which matters on public work where domestic sourcing is written into the bid.
8) Will lamp output drop if I swap in this ballast?
No loss from the ballast side. It runs a ballast factor of 1, meaning the lamp is driven to its full rated lumen output, with a 0.9 power factor on the line side. On a high-power-factor system like this, the circuit draws less current than a low-power-factor ballast at the same wattage, which is worth knowing if you are counting fixtures on a branch circuit.
