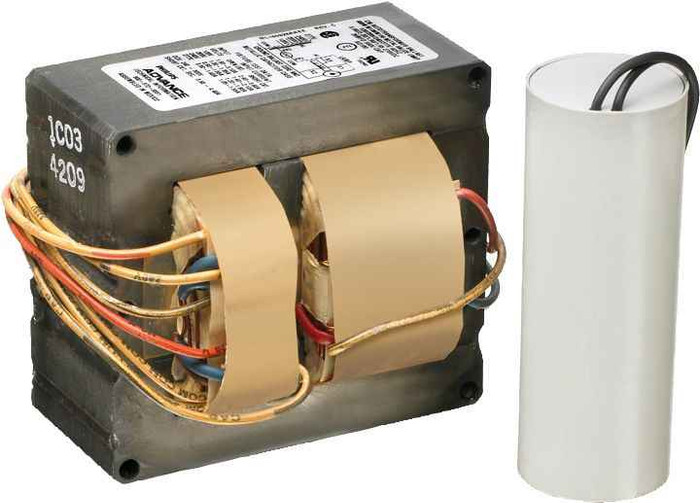

Advance 100W Metal Halide Magnetic Ballast M90/140 QUAD Kit with Pulse Start

Advance 100W Metal Halide Magnetic Ballast M90/140 QUAD Kit with Pulse Start

(No reviews yet) Write a Review

Model: 71A5390001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$275.71
$237.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 100W Metal Halide Magnetic Ballast M90/140 QUAD Kit with Pulse Start

Professional magnetic ballast solution for reliable metal halide lighting applications

The Advance 100W Metal Halide Magnetic Ballast delivers dependable performance for professional lighting installations. This QUAD kit features pulse start technology and supports M90/140 ANSI codes with multi-voltage operation at 120/208/240/277V. Built with Class P thermal protection and UL Listed certification, this magnetic HID ballast provides reliable operation for outdoor and indoor metal halide lighting systems.

Professional Features & Benefits

  • 100W Power Rating: Optimized for standard metal halide lamps with consistent power delivery and reliable lamp operation.
  • Multi-Voltage Operation (120/208/240/277V): Versatile installation compatibility across various electrical systems and applications.
  • Pulse Start Technology: Enhanced lamp starting performance with improved lamp life and faster warm-up times.
  • Class P Thermal Protection: Built-in safety protection prevents overheating and extends ballast service life.
  • M90/140 ANSI Code Compatibility: Designed for specific metal halide lamp types ensuring proper electrical matching.
  • UL Listed & CSA Certified: Meets rigorous safety standards for professional installation confidence.
  • 0.9 Power Factor: High power factor operation for efficient electrical performance and reduced system losses.

Technical Specifications

  • Ansi Code: M90/140
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 12 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 100 WTT
  • Product Height: 2.8100 IN
  • Product Length: 3.9400 IN
  • Product Type: Magnetic HID
  • Product Wattage: 100 W
  • Product Weight: 6.300 Lbs
  • Product Width: 2.8000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PULSE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Outdoor Area Lighting
  • Commercial Parking Lots
  • Industrial Facilities
  • Warehouse Lighting
  • Security Lighting Systems
  • Sports Facilities
  • Retail Exterior Lighting

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL Listed and CSA certification ensuring professional installation confidence. The Class P thermal protection and RoHS compliance demonstrate commitment to safety and environmental responsibility, while USA manufacturing supports quality construction and dependable long-term performance.

Manufacturer Resources

Product Specs

Ansi Code:
M90/140
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
12 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
100 WTT
Product Height:
2.8100 IN
Product Length:
3.9400 IN
Product Type:
Magnetic HID
Product Wattage:
100 W
Product Weight:
6.300 Lbs
Product Width:
2.8000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A5390001D – Frequently Asked Questions

1) Will the Advance 71A5390001D ballast run my 100W metal halide lamp?
It runs one 100W metal halide lamp with an ANSI code of M90 or M140. Match the code printed on the lamp: if your lamp is a different ANSI designation, this ballast is the wrong match even at 100 watts. It is a single lamp ballast, so one lamp per unit.
2) Can I wire this Advance metal halide ballast on 277V, or is it 120V only?
It is a quad-volt ballast, tapped for 120, 208, 240 and 277V at 60 Hz. You pick the tap at install, so the same unit covers a 120V single family service or a 277V commercial lighting panel. Nothing in the kit changes between voltages.
3) Is this a pulse start or probe start ballast?
Pulse start. It needs a pulse start lamp and an igniter circuit, so it will not correctly operate a probe start (M90 probe style) lamp. If the existing fixture uses probe start lamps, swapping in this ballast means swapping the lamp too.
4) Will this ballast kit fit inside my existing pole head or wallpack housing?
The core and coil measures 3.94 inches long by 2.81 inches high by 2.80 inches wide and the assembly weighs 6.3 pounds. Measure the ballast tray clearance in the housing against those figures before ordering, and make sure the tray and pole bracket are rated for the added weight, since magnetic units are heavier than electronic replacements.
5) What capacitor comes with this Advance 100W quad kit?
The kit is built around a 12 MFD capacitor paired with the core and coil, which is what brings the assembly to a 0.9 power factor. Do not substitute a different microfarad rating from a spare bin; the capacitor value is matched to this ballast and the wrong one changes lamp current.
6) Is this metal halide ballast UL listed for a commercial facility?
It carries UL recognition and a CSA certificate and is RoHS compliant, with Class P thermal protection built in so the winding opens the circuit if it overheats. That combination is what most institutional and MRO specs ask for on HID gear in warehouses, parking areas and security lighting.
7) How do I order the right replacement, and where is this ballast made?
Order by the Advance model number 71A5390001D. It is manufactured in the USA, which matters on public works and government jobs carrying domestic sourcing requirements.
