Advance 1500W Metal Halide Magnetic Ballast M48 ANSI Quad Kit

Advance 1500W Metal Halide Magnetic Ballast M48 ANSI Quad Kit

(No reviews yet) Write a Review

Model: 71A6772001
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$656.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 1500W Metal Halide Magnetic Ballast M48 ANSI Quad Kit

Professional magnetic ballast for high-intensity metal halide lighting applications

The Advance 1500W Metal Halide Magnetic Ballast delivers reliable power management for single metal halide lamps in commercial and industrial lighting systems. This magnetic HID ballast features M48 ANSI code compatibility, multi-voltage operation at 120/208/240/277V, and Class P thermal protection for dependable performance in demanding environments.

Professional Features & Benefits

  • 1500W Power Rating: Provides robust power delivery for high-intensity metal halide lamps requiring maximum light output
  • Multi-Voltage Operation (120/208/240/277V): Offers installation flexibility across various electrical systems and reduces inventory requirements
  • M48 ANSI Code: Ensures proper lamp compatibility and optimal performance with standardized metal halide fixtures
  • Class P Thermal Protection: Automatically protects against overheating conditions to extend ballast life and ensure safe operation
  • 0.9 Power Factor: Delivers efficient power utilization and reduces electrical system losses for cost-effective operation
  • Probe Start Type: Provides reliable lamp ignition and consistent starting performance in metal halide applications
  • UL Listed & CSA Certified: Meets rigorous safety standards for professional installation and code compliance

Technical Specifications

  • Ansi Code: M48
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 32 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 1500 WTT
  • Product Height: 4.2500 IN
  • Product Length: 6.0000 IN
  • Product Type: Magnetic HID
  • Product Wattage: 1500 W
  • Product Weight: 31.710 Lbs
  • Product Width: 6.1000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PROBE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Industrial High Bay Lighting
  • Commercial Warehouse Facilities
  • Sports Complex Illumination
  • Manufacturing Plant Lighting
  • Retail Store High-Intensity Areas
  • Parking Structure Lighting
  • Outdoor Area Lighting Systems

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL and CSA certifications, Class P thermal protection, and RoHS compliance. Built in the USA with robust magnetic construction, this ballast provides dependable service life in demanding commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Ansi Code:
M48
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
32 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
1500 WTT
Product Height:
4.2500 IN
Product Length:
6.0000 IN
Product Type:
Magnetic HID
Product Wattage:
1500 W
Product Weight:
31.710 Lbs
Product Width:
6.1000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PROBE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A6772001 – Frequently Asked Questions

1) Will the Advance 71A6772001 ballast run a 1500W pulse start metal halide lamp?
No. The Advance 71A6772001 is a probe start ballast built for M48 ANSI code lamps only. A pulse start 1500W lamp carries a different ANSI designation and needs a pulse start ballast with an igniter, which this one does not have. Match the ANSI code printed on the lamp to M48 before you wire it in.
2) Can I use this 1500W metal halide ballast on 480V?
No. The 71A6772001 is a quad-voltage core and coil kit wired for 120, 208, 240 or 277V at 60 Hz. There is no 480V tap, so a 480V service needs a separate 480V ballast or a step-down transformer.
3) What comes in the Advance M48 quad kit, and do I need anything else to finish the install?

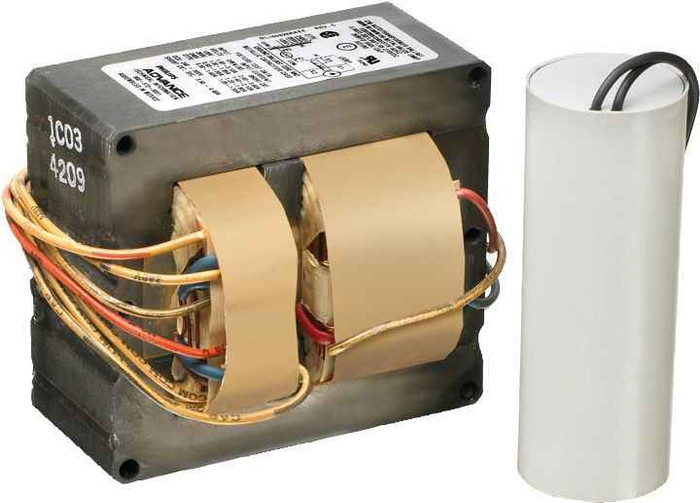

It is a kit for a single 1500W metal halide lamp: core and coil transformer plus the 32 MFD capacitor that sets the lamp current. You still supply the fixture housing, mounting hardware, wire, lamp socket and the M48 lamp itself. If you are replacing only a failed capacitor in an existing fixture, buy the capacitor on its own rather than the whole kit.
4) Can this 1500W metal halide ballast be dimmed or tied into a lighting control system?
No dimming. The 71A6772001 is a fixed-output magnetic ballast with a ballast factor of 1, so the lamp runs at full rated lumens whenever it is energized. Control is on/off only, through a contactor or relay. Metal halide also needs a restrike cooldown after power drops, so it is a poor fit for occupancy-sensor or daylight-harvesting schemes.
5) What circuit size should I figure for a 1500W metal halide ballast?
Size the branch circuit off the lamp wattage plus ballast losses, not the 1500W alone. With a 0.9 power factor the input current is meaningfully higher than a unity-PF calculation would suggest, so a single 1500W fixture on 120V draws heavily and is usually fed at 277V on commercial jobs to keep the amperage and wire size down. The ballast accepts 120, 208, 240 or 277V, so pick the highest voltage available on the site.
6) I need to order a replacement ballast for a 1500W metal halide sports field fixture. What part number do I ask for?
Advance 71A6772001, the 1500W M48 quad-voltage probe start metal halide kit. That is the manufacturer part number to put on the PO. Confirm the existing ballast label reads M48 and that the fixture is fed at 120, 208, 240 or 277V.
7) Should I repair a 1500W metal halide fixture with a magnetic ballast or convert it to LED?
Repair makes sense when the fixture housing, lens and reflector are sound and you need the opening back in service now, or when you are keeping a fleet of identical fixtures standardized so one spare covers every pole. The 71A6772001 keeps the lamp at full rated output with a ballast factor of 1. Where you want dimming, instant restrike or a control system tie-in, this magnetic core and coil will not give you any of it, and a conversion is the better call.
