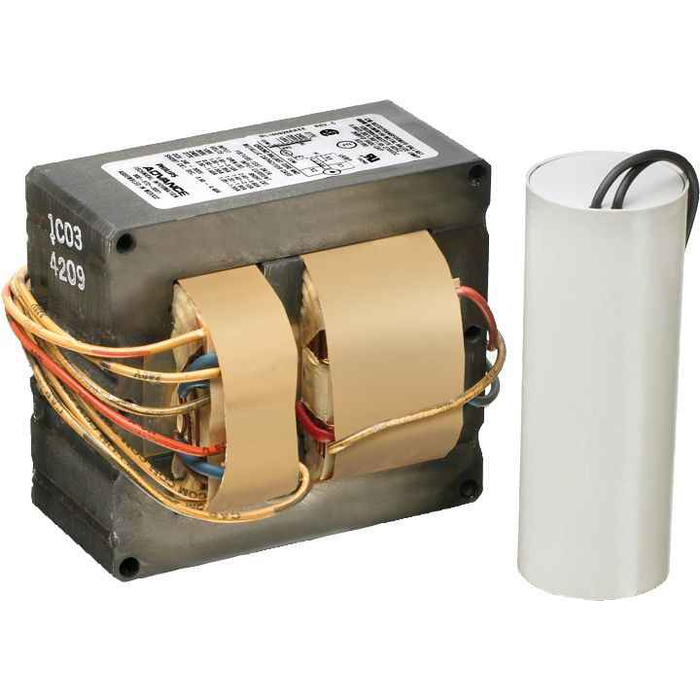

Advance 250W Metal Halide Magnetic Ballast M138/M153 ANSI Quad Kit
Professional magnetic ballast solution for 250W metal halide lighting applications
The Advance 250W Metal Halide Magnetic Ballast delivers reliable performance for professional lighting installations with M138/M153 ANSI compatibility. This magnetic HID ballast operates on multi-tap voltage (120/208/240/277V) at 60Hz frequency with Class P thermal protection and pulse start technology. UL Listed and CSA certified with RoHS compliance, this outdoor-suitable ballast provides consistent 250W power output with 0.9 power factor and ballast factor of 1 for optimal lamp performance.
Professional Features & Benefits
- 250W Power Rating: Delivers consistent power output for reliable metal halide lamp operation and optimal light output performance.
- Multi-Tap Voltage (120/208/240/277V): Provides installation flexibility across various electrical systems and reduces inventory requirements.
- M138/M153 ANSI Compatibility: Ensures proper lamp matching and reliable ignition with standard metal halide lamps.
- Class P Thermal Protection: Automatically protects against overheating conditions to extend ballast life and ensure safe operation.
- Pulse Start Technology: Provides faster lamp ignition and improved lamp life compared to probe start systems.
- UL Listed & CSA Certified: Meets rigorous safety standards for professional installation and code compliance.
- Outdoor Suitable Design: Built for reliable performance in demanding environmental conditions with appropriate protection.
Technical Specifications
- Ansi Code: M138/153
- Ballast Factor: 1
- Country Of Origin: USA
- Dimmable: No
- Frequency Rating: 60 Hz
- Lamp Type: METAL HALIDE
- Microfarad: 17 MFD
- Number Of Lamps: 1
- Power Factor: 0.9
- Power Rating: 250 WTT
- Product Height: 4.2500 IN
- Product Length: 4.7500 IN
- Product Type: Magnetic HID
- Product Wattage: 250 W
- Product Weight: 10.800 Lbs
- Product Width: 3.1000 IN
- Standard: ULR;CSA certificate;RoHS Compliant
- Start Type: PULSE
- Thermal Protection: CLASS P
- Voltage Rating: 120/208/240/277 V
Installation & Operation
- Mount the ballast in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Outdoor Area Lighting
- Commercial Parking Lots
- Industrial Facilities
- Warehouse Lighting
- Security Lighting Systems
- Sports Facilities
- Municipal Street Lighting
Why Choose Advance Quality?
Advance ballasts deliver proven reliability with UL Listed and CSA certified construction, RoHS compliance, and Class P thermal protection. Built in the USA with robust magnetic technology, this ballast provides dependable performance for demanding professional lighting applications with comprehensive safety certifications and outdoor-suitable design.
