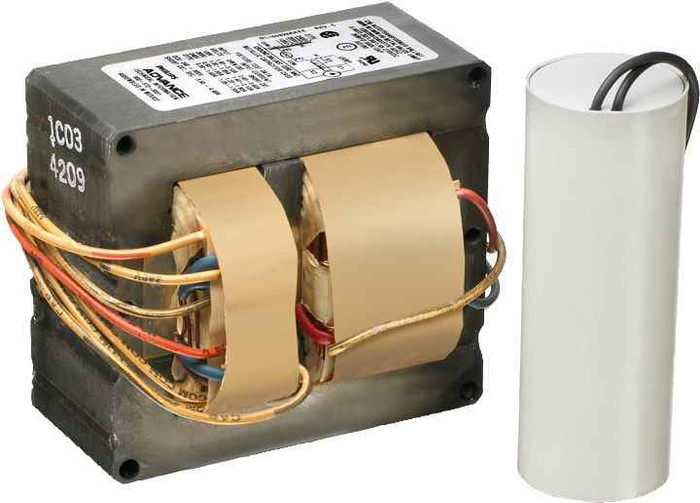

Advance 400W Metal Halide Magnetic Ballast M135/155 ANSI Quad Kit

Advance 400W Metal Halide Magnetic Ballast M135/155 ANSI Quad Kit

(No reviews yet) Write a Review

Model: 71A6092001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$340.44
$304.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 400W Metal Halide Magnetic Ballast M135/155 ANSI Quad Kit

Professional magnetic ballast for reliable 400W metal halide lighting applications

The Advance 400W Metal Halide Magnetic Ballast delivers dependable performance for professional lighting installations. This magnetic HID ballast operates single 400W metal halide lamps with M135/155 ANSI compatibility and multi-voltage operation at 120/208/240/277V. Featuring pulse start technology, Class P thermal protection, and comprehensive certifications including UL Listed and CSA, this ballast provides reliable lighting control for outdoor and commercial applications.

Professional Features & Benefits

  • 400W Power Rating: Optimized for high-intensity metal halide lighting with consistent lamp performance and energy efficiency.
  • Multi-Voltage Operation (120/208/240/277V): Versatile installation compatibility across various electrical systems and applications.
  • M135/155 ANSI Code: Ensures proper lamp compatibility and optimal performance with specified metal halide lamps.
  • Pulse Start Technology: Provides reliable lamp ignition and improved lamp life compared to probe start systems.
  • Class P Thermal Protection: Built-in safety feature prevents overheating and extends ballast service life.
  • UL Listed & CSA Certified: Meets rigorous safety standards for professional installation and code compliance.
  • Outdoor Suitable Design: Engineered for reliable operation in challenging environmental conditions.

Technical Specifications

  • Ansi Code: M135/155
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 26 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 400 WTT
  • Product Height: 4.2500 IN
  • Product Length: 4.7500 IN
  • Product Type: Magnetic HID
  • Product Wattage: 400 W
  • Product Weight: 12.500 Lbs
  • Product Width: 4.3000 IN
  • Standard: ULR;CSA certificate;EISA;RoHS Compliant
  • Start Type: PULSE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Commercial and Industrial Lighting Systems
  • Outdoor Area and Security Lighting
  • Warehouse and Manufacturing Facilities
  • Parking Structure Illumination
  • Sports and Recreation Facilities
  • Retail and Office Building Lighting
  • Municipal and Infrastructure Projects

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with comprehensive safety certifications including UL Listed, CSA, and RoHS compliance. The robust magnetic design with Class P thermal protection ensures dependable operation and extended service life. Made in USA with EISA compliance, this ballast represents professional-grade quality for demanding lighting applications.

Manufacturer Resources

Product Specs

Ansi Code:
M135/155
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
26 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
400 WTT
Product Height:
4.2500 IN
Product Length:
4.7500 IN
Product Type:
Magnetic HID
Product Wattage:
400 W
Product Weight:
12.500 Lbs
Product Width:
4.3000 IN
Standard:
ULR;CSA certificate;EISA;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A6092001D – Frequently Asked Questions

1) Will this ballast fit inside my existing shoebox or wall pack housing?
The core and coil measures 4.75 by 4.30 by 4.25 inches and the kit weighs 12.5 pounds. Check the ballast tray clearance and, just as important, that the fixture and any pole arm can carry the added weight, since magnetic HID gear is heavy compared with electronic.
2) Is this Advance ballast safe for an outdoor pole fixture, and does it have thermal protection?
It carries Class P thermal protection, which opens the ballast on an overtemperature condition and resets when it cools. Listings on the safety side are UL and CSA, plus EISA and RoHS compliance. It still has to live in a fixture rated for the location; the ballast itself is not a weatherproof enclosure.
3) What comes in the Advance quad kit besides the ballast core and coil?
It is a kit, so the 26 MFD capacitor is part of it along with the core and coil. If you are only replacing a failed capacitor on an existing ballast, you want the capacitor alone rather than the full kit.
4) Can I dim this 400W metal halide ballast for a parking garage schedule?
No. The Advance 71A6092001D is a non-dimming magnetic HID ballast. For step-dimming or occupancy-based dimming on a garage, you need an electronic HID ballast rated for dimming or an LED retrofit.
5) What current draw should I size the branch circuit for on a 400W metal halide ballast?
Size from the power factor, not lamp watts alone. This is a high power factor ballast at 0.9, so input VA runs close to the lamp load plus ballast losses. On 277V that is a modest draw, on 120V it is roughly three times higher for the same fixture, which matters when you are counting how many poles land on one circuit.
6) Should I replace a failed 400W metal halide ballast or convert the fixture to LED?
A like-for-like magnetic replacement makes sense when the fixture, lens and pole are sound and you want the lamp, socket and wiring left alone. This one is a pulse start, high power factor, quad-tap unit, so it drops into most existing 400W MH fixtures without rewiring the feed. Go LED instead when you need dimming or controls, since this ballast cannot dim.
7) Do I need to order anything else to standardize 400W metal halide fixtures across a site?
The ballast side is covered by one part number, 71A6092001D, across 120, 208, 240 and 277V, so one stocked kit serves every voltage in the portfolio. What you still need to match per fixture is the lamp: an M135 or M155 coded 400W pulse start lamp with the correct base and burn position for that fixture.
