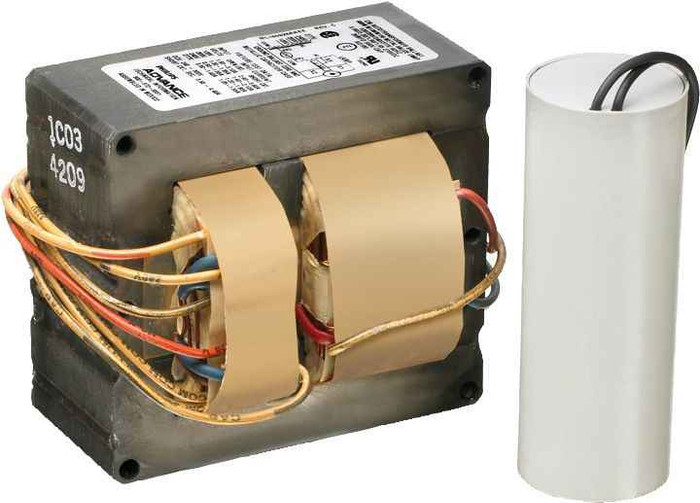

Advance 400W Metal Halide Magnetic Ballast M59 ANSI Quad Kit with Probe Start

Advance 400W Metal Halide Magnetic Ballast M59 ANSI Quad Kit with Probe Start

(No reviews yet) Write a Review

Model: 71A6071001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$274.46
$235.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 400W Metal Halide Magnetic Ballast M59 ANSI Quad Kit with Probe Start

Professional magnetic HID ballast for reliable metal halide lighting applications

The Advance 400W Metal Halide Magnetic Ballast delivers dependable performance for commercial and industrial lighting systems. This UL Listed magnetic HID ballast features M59 ANSI compatibility with probe start technology and multi-voltage operation at 120/208/240/277V. Built with Class P thermal protection and suitable for outdoor applications, this ballast provides reliable metal halide lamp operation with 0.9 power factor efficiency.

Professional Features & Benefits

  • 400W Power Rating: Optimized for high-output metal halide lamps delivering consistent illumination for demanding applications
  • Multi-Voltage Operation (120/208/240/277V): Versatile voltage compatibility reduces inventory requirements and simplifies installation planning
  • M59 ANSI Code: Industry-standard compatibility ensures proper lamp matching and reliable performance
  • Probe Start Technology: Provides reliable lamp ignition and extended lamp life for metal halide applications
  • Class P Thermal Protection: Built-in safety protection prevents overheating and extends ballast service life
  • UL Listed & CSA Certified: Meets rigorous safety standards for commercial and industrial installations
  • Outdoor Suitable Design: Weather-resistant construction enables versatile indoor and outdoor applications

Technical Specifications

  • Ansi Code: M59
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 24 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 400 WTT
  • Product Height: 4.2500 IN
  • Product Length: 4.7500 IN
  • Product Type: Magnetic HID
  • Product Wattage: 400 W
  • Product Weight: 12.600 Lbs
  • Product Width: 4.0000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PROBE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Commercial Building Lighting Systems
  • Industrial Facility High Bay Lighting
  • Warehouse and Distribution Centers
  • Outdoor Area and Security Lighting
  • Retail and Office Building Applications
  • Municipal and Infrastructure Lighting
  • Sports Facility and Recreation Centers

Why Choose Advance Quality?

Advance magnetic ballasts deliver proven reliability with UL Listed and CSA certified construction. The Class P thermal protection and RoHS compliant design ensure safe, environmentally responsible operation. Made in USA with robust magnetic HID technology for long-term dependability in demanding commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Ansi Code:
M59
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
24 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
400 WTT
Product Height:
4.2500 IN
Product Length:
4.7500 IN
Product Type:
Magnetic HID
Product Wattage:
400 W
Product Weight:
12.600 Lbs
Product Width:
4.0000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PROBE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A6071001D – Frequently Asked Questions

1) Will this Advance 400W magnetic ballast run a pulse start metal halide lamp?
No. The Advance 71A6071001D is a probe start ballast with an M59 ANSI code, so it only runs 400W probe start metal halide lamps carrying the M59 designation. A pulse start 400W lamp uses a different ANSI code and needs an igniter-equipped pulse start ballast. Check the ANSI code printed on the lamp you are replacing before ordering.
2) Will this ballast fit in my existing fixture's ballast compartment?
The ballast assembly measures 4.75 x 4.25 x 4.00 inches. Measure the clear space in the existing ballast tray against those three numbers before ordering, since 400W magnetic HID cans vary widely in compartment depth. Its 12.6 pound mass also matters for pole-mounted and pendant fixtures.
3) Can this Advance magnetic HID ballast be used in an outdoor pole or wall pack fixture?
Yes, it is suited to outdoor use as well as indoor, and it carries Class P thermal protection, which shuts the ballast down if internal temperatures climb too high. It is UL recognized and CSA certificated, and RoHS compliant. As with any ballast, it still needs to sit inside the fixture's weather-rated enclosure.
4) What comes in the Advance 400W M59 quad kit, and is anything else needed to finish the install?
It is a kit built around the core-and-coil ballast with the 24 MFD capacitor that a 400W probe start metal halide circuit requires, wired for single lamp operation. You supply the lamp, the socket and the fixture housing. The assembly weighs 12.6 pounds, so confirm the fixture's ballast tray and mounting hardware will carry it before you swap.
5) Can I dim a 400W probe start metal halide ballast for energy savings?
No. This Advance magnetic HID ballast is non-dimming and runs at a ballast factor of 1, so the lamp operates at full rated light output whenever the circuit is energized. If a facility needs dimming or occupancy-based control on high bays, that is an LED retrofit decision, not something this ballast supports.
6) Is this a high power factor ballast for a commercial metal halide circuit?
Yes, it runs at 0.9 power factor, which is the high power factor range utilities and commercial specs generally call for. The practical effect is lower line current per fixture than a low power factor unit, so more fixtures fit on a branch circuit and the utility is less likely to assess a power factor penalty.
7) Is the Advance 71A6071001D made in the USA?
Yes, country of origin is the USA, which matters for government, municipal and institutional jobs carrying domestic sourcing language in the purchase order. The part number to reference on the submittal is 71A6071001D.
