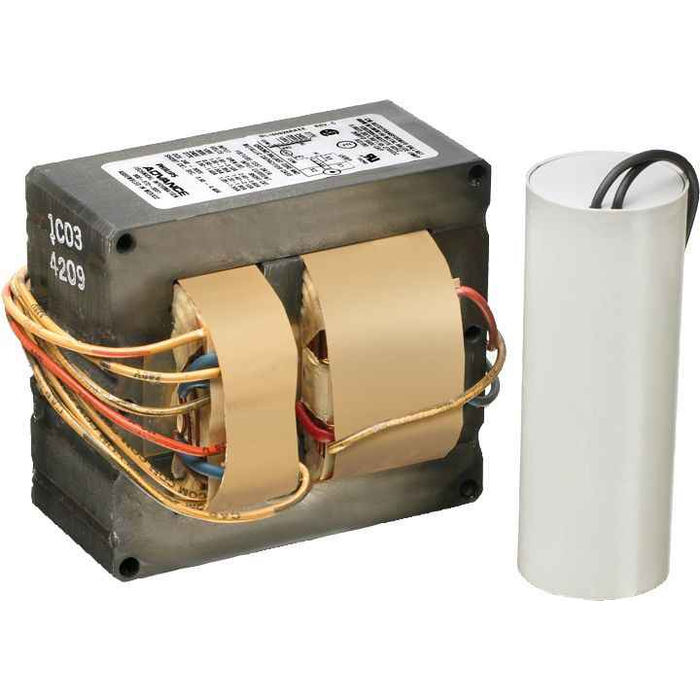

Advance 175W Metal Halide Magnetic Ballast M57 ANSI Quad Kit with Probe Start

Advance 175W Metal Halide Magnetic Ballast M57 ANSI Quad Kit with Probe Start

(No reviews yet) Write a Review

Model: 71A5570001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$235.51
$184.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 175W Metal Halide Magnetic Ballast M57 ANSI Quad Kit with Probe Start

Professional magnetic HID ballast for reliable metal halide lighting applications

The Advance 175W Metal Halide Magnetic Ballast delivers dependable performance for commercial and industrial lighting installations. This magnetic HID ballast features M57 ANSI code compatibility, probe start technology, and multi-voltage operation at 120/208/240/277V with 60Hz frequency rating. Built with Class P thermal protection and UL Listed certification, this quad kit provides professional-grade reliability for metal halide luminaire applications.

Professional Features & Benefits

  • 175W Power Rating: Optimized for single metal halide lamp operation with consistent light output and energy efficiency.
  • Multi-Voltage Operation: 120/208/240/277V compatibility provides installation flexibility across various electrical systems.
  • M57 ANSI Code: Ensures proper lamp compatibility and standardized performance with M57/107 metal halide lamps.
  • Probe Start Technology: Reliable ignition system delivers consistent lamp starting performance and extended lamp life.
  • Class P Thermal Protection: Built-in thermal protection prevents overheating and ensures safe operation under varying load conditions.
  • UL Listed Certification: Meets rigorous safety standards with UL, CSA, and RoHS compliance for professional installations.
  • Compact Design: 3.94" x 2.81" x 2.80" dimensions and 7.55 lbs weight enable versatile mounting in space-constrained luminaires.

Technical Specifications

  • Ansi Code: M57/107
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 10 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 175 WTT
  • Product Height: 2.8100 IN
  • Product Length: 3.9400 IN
  • Product Type: Magnetic HID
  • Product Wattage: 175 W
  • Product Weight: 7.550 Lbs
  • Product Width: 2.8000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PROBE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Commercial Lighting Systems
  • Industrial Facility Illumination
  • Warehouse and Manufacturing Lighting
  • Retail and Office Buildings
  • Outdoor Area and Security Lighting
  • Sports and Recreation Facilities
  • Parking Structure Illumination

Why Choose Advance Quality?

Advance delivers proven reliability with UL Listed, CSA, and RoHS compliant construction. This USA-manufactured magnetic ballast features Class P thermal protection and robust design for dependable metal halide lighting performance in demanding commercial and industrial environments.

Manufacturer Resources

Product Specs

Ansi Code:
M57/107
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
10 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
175 WTT
Product Height:
2.8100 IN
Product Length:
3.9400 IN
Product Type:
Magnetic HID
Product Wattage:
175 W
Product Weight:
7.550 Lbs
Product Width:
2.8000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PROBE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A5570001D – Frequently Asked Questions

1) Can I use this 175W Advance ballast kit on 277 volts in a commercial building?
Yes. The kit is a quad-voltage unit rated 120/208/240/277V at 60 Hz, so the same part covers single phase 120V lighting circuits and 277V commercial panels. You select the voltage by landing the supply on the matching input lead at installation.
2) Will this magnetic HID ballast fit inside my existing fixture housing?
The core-and-coil measures 3.94 x 2.81 x 2.80 inches and weighs 7.55 lbs. That is the ballast body only. Measure the ballast tray in your luminaire against those three numbers, and make sure the mounting surface will carry 7.55 lbs of magnetic core.
3) Is the capacitor included with this Advance quad kit, or do I order it separately?
It ships as a kit with the 10 MFD capacitor specified for the 175W probe start circuit. Use the rated value; substituting a different microfarad rating shifts lamp current and shortens lamp life.
4) Can I dim these 175W metal halide fixtures for an energy code requirement?
No. This is a non-dimming magnetic HID ballast, full output only, with a ballast factor of 1 and 0.9 power factor. If the job calls for dimming or step control on the lighting, a magnetic probe start metal halide ballast will not do it.
5) Does this Advance ballast meet the listings my facility inspector will ask for?
It carries UL recognition, a CSA certificate, and is RoHS compliant, with Class P thermal protection built into the coil so the ballast opens the circuit if it overheats. Class P protection is what most fixture listings and jurisdictions expect on an indoor HID ballast.
6) Will one of these ballasts run two 175W lamps in a twin-lamp fixture?
No. It is a single lamp ballast, one 175W metal halide lamp per unit. A two-lamp luminaire needs two ballasts, and at 7.55 lbs each the tray has to take both.
7) Should I rebalast these 175W metal halide fixtures or replace them with LED?
Rebalasting makes sense when the fixture housing, reflector and socket are sound and you want the opening back in service quickly with lamps you already stock. Order the Advance M57 kit and it drops onto the existing tray with the same 120/208/240/277V feed. Go LED instead if you need dimming or controls, because this magnetic ballast is fixed output only.
8) What part number do I give my distributor for the Advance 175W M57 probe start ballast kit?
Order Advance model 71A5570001D. That is the quad-voltage 175W probe start metal halide kit with the M57/107 ANSI code, made in the USA.
