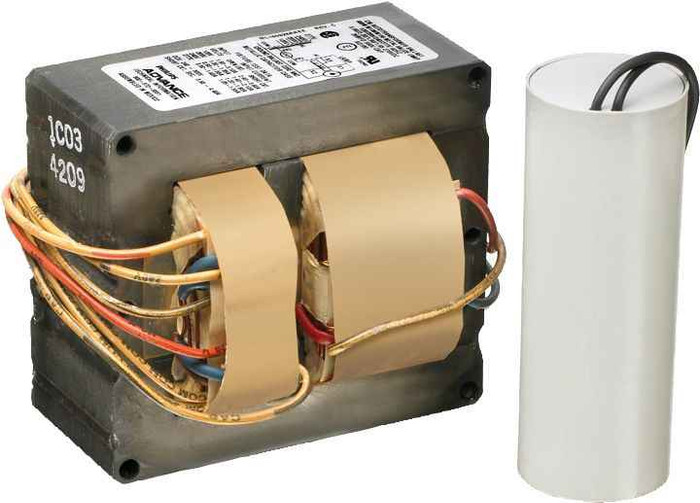

Advance Metal Halide Ballast 175W M137/M152 ANSI Quad Kit with Pulse Start

Advance Metal Halide Ballast 175W M137/M152 ANSI Quad Kit with Pulse Start

(No reviews yet) Write a Review

Model: 71A5593001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$355.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Metal Halide Ballast 175W M137/M152 ANSI Quad Kit with Pulse Start

Professional magnetic HID ballast for reliable metal halide lighting applications

The Advance Metal Halide Ballast delivers dependable 175W power management for M137/M152 ANSI code metal halide lamps with pulse start technology. This magnetic HID ballast features multi-voltage operation at 120/208/240/277V with 60Hz frequency rating and Class P thermal protection for professional outdoor and indoor lighting installations. UL Listed and CSA certified with RoHS compliance ensures reliable performance in demanding commercial and industrial applications.

Professional Features & Benefits

  • 175W Power Rating: Optimized for M137/M152 ANSI metal halide lamps providing consistent light output and energy efficiency
  • Multi-Voltage Operation: 120/208/240/277V compatibility offers flexible installation options across various electrical systems
  • Pulse Start Technology: Enhanced lamp starting performance reduces warm-up time and extends lamp life
  • Class P Thermal Protection: Automatic thermal shutdown prevents overheating and ensures safe operation in all conditions
  • Magnetic HID Design: Proven technology with 0.9 power factor and 11 MFD capacitance for stable performance
  • UL Listed & CSA Certified: Meets rigorous safety standards with RoHS compliance for professional installations
  • Compact Quad Kit: Space-efficient 3.94" x 2.81" x 2.80" design weighing 7.5 lbs for versatile mounting applications

Technical Specifications

  • Ansi Code: M137/152
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: METAL HALIDE
  • Microfarad: 11 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 175 WTT
  • Product Height: 2.8100 IN
  • Product Length: 3.9400 IN
  • Product Type: Magnetic HID
  • Product Wattage: 175 W
  • Product Weight: 7.500 Lbs
  • Product Width: 2.8000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PULSE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Commercial Building Lighting Systems
  • Industrial Facility High Bay Lighting
  • Outdoor Area and Security Lighting
  • Warehouse and Manufacturing Lighting
  • Retail and Office Building Illumination
  • Parking Structure and Canopy Lighting
  • Sports Facility and Recreation Lighting

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL Listed and CSA certified safety standards, RoHS compliance, and Class P thermal protection. Made in USA with Signify Electronics technology, this magnetic HID ballast provides dependable performance for professional lighting applications requiring consistent 175W metal halide operation.

Manufacturer Resources

Product Specs

Ansi Code:
M137/152
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
11 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
175 WTT
Product Height:
2.8100 IN
Product Length:
3.9400 IN
Product Type:
Magnetic HID
Product Wattage:
175 W
Product Weight:
7.500 Lbs
Product Width:
2.8000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A5593001D – Frequently Asked Questions

1) Will this ballast kit fit inside my existing pole-top or high bay fixture housing?
The core-and-coil measures 3.94 x 2.81 x 2.80 inches and the kit weighs 7.5 lbs, which is a compact footprint for a 175W magnetic unit. Because it ships as a quad kit, the capacitor is a separate can that also needs space inside the housing, so measure the full cavity, not just the space the old core occupied.
2) Can I dim this magnetic HID ballast or put it on an occupancy sensor circuit?
No. The 175W Advance magnetic HID ballast is non-dimmable, and HID lamps need a restrike cooldown after power interruption, so it is not suited to occupancy sensing or any dimming control. Use it on straight switched or photocell/contactor-controlled circuits.
3) What capacitor rating does the Advance 175W pulse start quad kit use?
11 MFD. If you are replacing only a failed capacitor in an existing kit, the replacement has to match that microfarad value and the voltage rating stamped on the old can. Substituting a different MFD changes lamp current and shortens lamp life.
4) Is this ballast approved for a commercial facility inspection?
The Advance 175W metal halide ballast is UL Recognized and carries a CSA certificate, and it is RoHS compliant. It also has Class P thermal protection, which shuts the unit down automatically if the winding overheats. That is the protection class inspectors and fixture manufacturers typically look for on an indoor ballast replacement.
5) What exactly do I order to get the complete Advance 175W replacement, and is it made in the USA?
Order model 71A5593001D. It comes as a quad kit, meaning the core-and-coil, the 11 MFD capacitor and the igniter needed for pulse start operation. Country of origin is the USA, which matters on jobs with domestic sourcing requirements.
6) How many lamps will one of these ballasts drive, and will light output drop after the swap?
One lamp per ballast. Ballast factor is 1.0, so a properly matched 175W pulse start lamp puts out its rated lumens with no derating. Power factor is 0.9, which keeps line current reasonable on a multi-fixture branch circuit.
