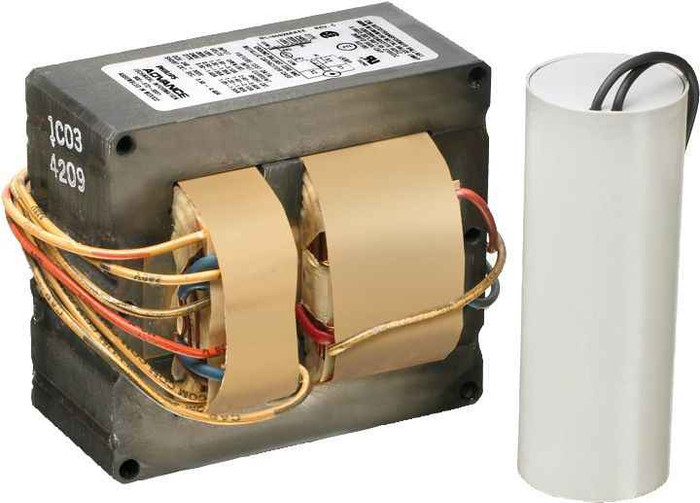

Advance Metal Halide Magnetic Ballast 250W M58 5-Tap Multi-Voltage Kit

Advance Metal Halide Magnetic Ballast 250W M58 5-Tap Multi-Voltage Kit

Professional magnetic ballast for 250W metal halide lighting applications

The Advance Metal Halide Magnetic Ballast delivers reliable performance for 250W metal halide lamps with M58 ANSI code compatibility. This magnetic HID ballast features 5-tap multi-voltage operation supporting 120/208/240/277/480V configurations with Class P thermal protection and probe start technology. UL Listed and CSA certified with RoHS compliance, this outdoor-suitable ballast provides professional-grade lighting control for commercial and industrial applications.

Professional Features & Benefits

• 250W Power Rating: Optimized for standard metal halide lamps with reliable magnetic ballast technology for consistent light output and lamp life.
• 5-Tap Multi-Voltage: Supports 120/208/240/277/480V operation providing installation flexibility across diverse electrical systems and applications.
• M58 ANSI Code: Ensures proper lamp compatibility and optimal performance with standard 250W metal halide lamps in professional lighting systems.
• Class P Thermal Protection: Built-in thermal protection prevents overheating and extends ballast life while maintaining safe operation under varying load conditions.
• Probe Start Technology: Reliable ignition system provides consistent lamp starting performance and extended lamp life in demanding applications.
• UL Listed & CSA Certified: Meets rigorous safety standards for commercial and industrial installations with RoHS environmental compliance.
• Outdoor Suitable Design: Weather-resistant construction enables reliable operation in outdoor lighting applications and harsh environmental conditions.

Technical Specifications

• Ansi Code: M58
• Ballast Factor: 1
• Country Of Origin: USA
• Dimmable: No
• Frequency Rating: 60 Hz
• Lamp Type: METAL HALIDE
• Microfarad: 15 MFD
• Number Of Lamps: 1
• Power Factor: 0.9
• Power Rating: 250 WTT
• Product Height: 4.2500 IN
• Product Length: 4.7500 IN
• Product Type: Magnetic HID
• Product Wattage: 250 W
• Product Weight: 9.000 Lbs
• Product Width: 4.3000 IN
• Standard: ULR;CSA certificate;RoHS Compliant
• Start Type: PROBE
• Thermal Protection: CLASS P
• Voltage Rating: 120/208/240/277/480 V

Installation & Operation

1. Mount the ballast in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Lighting Systems
• Industrial Facility High Bay Lighting
• Outdoor Area and Security Lighting
• Warehouse and Manufacturing Lighting
• Parking Structure Illumination
• Retail and Office Building Lighting
• Municipal and Infrastructure Lighting

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL Listed and CSA certified safety standards, RoHS environmental compliance, and robust Class P thermal protection. Made in USA with professional-grade magnetic HID technology, this ballast provides dependable performance for demanding commercial and industrial lighting applications with multi-voltage flexibility and outdoor-suitable construction.
