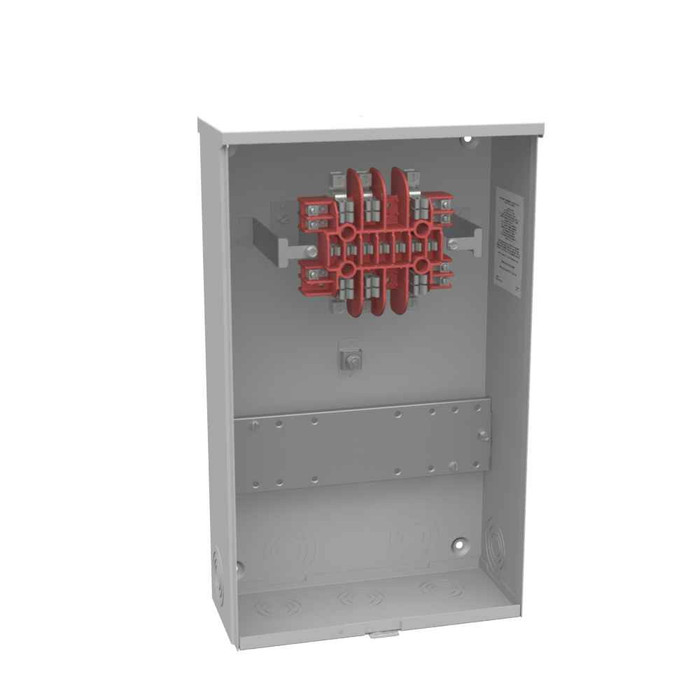

Milbank 13 Terminal Ring Type Meter Socket 20A 600V 3 Phase

Milbank 13 Terminal Ring Type Meter Socket 20A 600V 3 Phase

(No reviews yet) Write a Review

Model: UCSSP3433-O

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,671.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 13 Terminal Ring Type Meter Socket 3 Phase 600V 20A with Test Switch Provision

Professional 3-Phase Metering Solution with Test Switch Capability

The Milbank 13 Terminal Ring Type Meter Socket delivers reliable 3-phase electrical metering for commercial and industrial applications. Engineered with 304 stainless steel construction and powder coat finish, this single-position meter socket provides 600V AC operation at 20 continuous amperes with integrated test switch provision for enhanced service flexibility.

Professional Features & Benefits

  • 20 Continuous Ampere Rating: Provides reliable current handling capacity for consistent metering performance in demanding applications.
  • 3 Phase 600V AC Operation: Supports high-voltage commercial and industrial electrical systems with professional-grade voltage handling.
  • 304 Stainless Steel Construction: Delivers superior corrosion resistance and long-term durability in harsh environmental conditions.
  • 13 Terminal Ring Type Design: Ensures secure electrical connections with professional-grade terminal configuration for reliable service.
  • Test Switch Provision: Enables safe meter testing and maintenance procedures without service interruption.
  • UL Listed Type 3R Rating: Meets stringent safety standards for outdoor installation with weather-resistant protection.
  • Underground Cable Entry: Accommodates underground service connections for clean, professional installations.

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 - 10 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 13 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: CT20
  • Product Height: 20 IN
  • Product Length: 5.125 IN
  • Product Material: 304 Stainless Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 5.125L x 12W x20H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 12 IN

Professional Applications

  • Commercial Building Electrical Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Property Metering
  • Manufacturing Plant Electrical Distribution
  • Warehouse and Distribution Centers
  • Professional Office Buildings
  • Retail and Commercial Establishments

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and premium 304 stainless steel construction with powder coat finish. The robust design ensures long-term performance in demanding commercial and industrial environments, backed by professional-grade materials and manufacturing standards.

Manufacturer Resources

Product Specs

Unspsc Number:
39121102
Amps:
20
Equipment Ground:
Ground Lug
Hub Closing Plate:
Plain Top
Product Mounting:
Surface Mount
Frequency Rating:
60 Hertz
Terminal:
Single Mechanical
Brand Name:
Milbank
Product Subgroup:
Electrical
Bypass Provision:
No Bypass
Product Size:
5.125L x 12W x20H
Number Of Jaws:
13 Terminal
Product Type:
Ring Type Meter Socket
Department:
Electrical
Insulation:
Glass Polyester
Product Family Code:
CT20
Product Width:
12 IN
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Product Height:
20 IN
Phase:
3 Phase
Standards:
UL Listed;Type 3R
Number Of Receptacles:
0
Voltage Rating:
600 Volts Alternating Current
Number Of Meter Positions:
1 Position
Product Length:
5.125 IN
Cable Entry:
Underground
Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Product Group:
Metering & Service Entrance

Milbank UCSSP3433-O – Frequently Asked Questions

1) Does the Milbank UCSS 13 terminal meter socket carry the service current, or is it for CT metering only?
It is rated 20 continuous amperes at 600V AC, which is instrument-transformer (CT) rated metering, not service-rated. The 13 jaw arrangement and 20A rating mean the socket carries only the secondary current from current transformers on a 3 phase service, not the full load. Wire ranges bear this out: both line and load side lugs take 12 to 10 AWG only. If you need the socket in the service conductor path, this is the wrong device.
2) What is the difference between Milbank UCSS3433-O and UCSSP3433-O?
Test switch provision. UCSSP3433-O comes with the test switch, UCSS3433-O without. The test switch lets a meter tech shunt the CT secondaries and isolate the potential leads to test or swap the meter without opening a CT secondary or dropping the customer. Utilities frequently mandate it on CT installations, so check the serving utility's metering spec before picking between the two.
3) Can this Milbank 13 terminal socket be installed outdoors on an exterior wall?
Yes. It is UL Listed and Type 3R rated, so it is built for outdoor rain-tight service, and it is a surface mount enclosure that fastens flat to a wall or backboard. The body is 304 stainless steel with a powder coat finish, which holds up in coastal and industrial air better than painted galvanized.
4) Does the Milbank UCSS3433-O include a bypass or a main breaker?
Neither. It is a no-bypass, no-main-breaker socket with a single meter position and no receptacles. Overcurrent protection and any disconnecting means have to come from separate equipment. If your utility requires a lever bypass on the meter can, specify a different socket.
5) Is the top of this Milbank socket pre-punched for a conduit hub?
No. It ships plain top, with no hub opening, and the cable entry is configured for underground service. If you are coming in overhead with a rigid riser, this enclosure is not set up for it as supplied.
6) Will 10 AWG CT secondary leads land in this socket, and how do I ground it?
Yes, the single mechanical terminals accept 12 to 10 AWG on both line and load sides, which is the usual range for CT secondary and potential conductors. Equipment grounding is handled by a factory ground lug in the enclosure.
7) Is this Milbank socket suitable for a 480Y/277V 3 phase commercial service?
Yes, it is rated 600 volts AC, 60 Hertz, 3 phase, so it covers 480Y/277V and 208Y/120V CT metering installations. The glass polyester insulating base is what carries that 600V rating.
8) Is this a ring type or ringless meter socket?
Ring type. The meter is retained by a sealing ring around the cover collar rather than a ringless lift-off cover. Many utilities specify one or the other, so match the arrangement your serving utility accepts before ordering.
9) What is the UNSPSC code for the Milbank UCSS meter socket for our purchasing system?
UNSPSC 39121102. Milbank also groups it under product family code CT20, which is useful when cross-referencing the CT metering line on a submittal.
