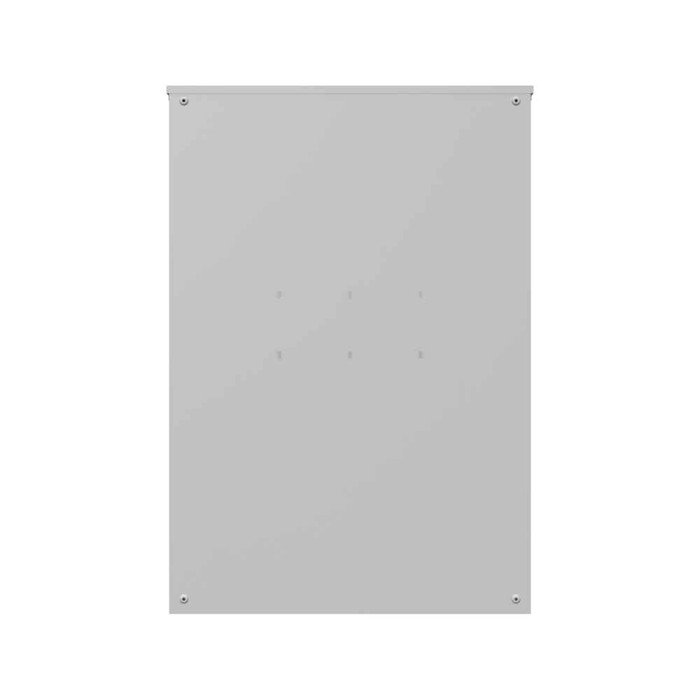

Milbank U3342-O 13 Terminal Ring Type Plain Top Test Switch Provision 36in-52in-11in Painted Steel Double Front Lift Off Screw Cover Current Transformer Rack Provision

Milbank 13 Terminal Ring Type Meter Socket 3 Phase 600V 20A with Test Switch Provision

(No reviews yet) Write a Review

Model: U3342-O

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,142.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 13 Terminal Ring Type Meter Socket 3 Phase 600V 20A with Test Switch Provision

Professional 3-Phase Metering Solution with Test Switch Capability

The Milbank 13 Terminal Ring Type Meter Socket delivers reliable 3-phase electrical metering for commercial and industrial applications. This UL Listed Type 3R enclosure features G90 galvanized steel construction with powder coat finish, providing durable protection in outdoor environments. The unit accommodates underground cable entry and includes current transformer rack provision for comprehensive power monitoring capabilities.

Professional Features & Benefits

  • 20 Continuous Ampere Rating: Provides reliable current handling capacity for consistent metering performance in demanding applications.
  • 3 Phase 600V Configuration: Supports high-voltage commercial and industrial electrical systems with professional-grade voltage handling.
  • 13 Terminal Ring Type Design: Offers comprehensive connection points for complex metering installations and system integration.
  • UL Listed Type 3R Enclosure: Ensures code compliance and weather resistance for outdoor installations with reliable environmental protection.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with professional powder coat finish.
  • Test Switch Provision: Enables safe meter testing and maintenance procedures without service interruption.
  • Current Transformer Rack Provision: Accommodates CT installation for accurate power measurement and monitoring capabilities.

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 14 - 10 AWG
  • Load Side Wire Range: 14 - 10 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 13 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: TRNS
  • Product Height: 52.5 IN
  • Product Length: 11 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 11L x 36W x52.5H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 36 IN

Professional Applications

  • Commercial Building Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Properties
  • Manufacturing Operations
  • Retail and Office Buildings
  • Educational Institutions
  • Healthcare Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R environmental protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor installations, while the comprehensive terminal configuration supports complex metering requirements with professional-grade performance.

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
14 - 10 AWG
Load Side Wire Range:
14 - 10 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
13 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
TRNS
Product Height:
52.5 IN
Product Length:
11 IN
Product Size:
11L x 36W x52.5H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
20
Product Width:
36 IN
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank U3342-O – Frequently Asked Questions

1) Does the Milbank U3342-O meter socket carry its own main breaker or bypass?
No on both counts. The U3342-O is a straight 13 terminal CT-rated socket enclosure with no main breaker and no bypass provision, so overcurrent protection has to come from upstream gear in your service. It is a single meter position, and there are no receptacles in the enclosure.
2) Why is a 13 terminal 600V meter socket only rated 20 amps?
Because it is a transformer-rated socket, not a self-contained one. The 20 continuous ampere rating is the meter circuit rating, not the service size. Service current runs through current transformers mounted on the CT rack provision inside the enclosure, and only the CT secondaries land in the socket. That is also why the line and load side wire ranges are 14 to 10 AWG, which is instrument wiring, not service conductors. If you were expecting to land service entrance cable on the socket lugs, this is the wrong type of socket.
3) Will the Milbank U3342-O work for a 120/240V single phase service?
No. It is built as a 3 phase, 600 VAC, 60 Hz transformer-rated socket with a 13 jaw configuration. A single phase service needs a single phase socket with the jaw count your utility specifies. Check the utility's approved meter socket list before ordering either way, since jaw count and terminal arrangement are dictated by them.
4) How much wall space do I need to mount this Milbank CT metering enclosure?
Plan on 36 inches wide by 52.5 inches high, with 11 inches of depth off the wall. It is surface mount, with a double front lift-off screw cover, so leave working clearance in front to pull both cover sections and get at the CT rack.
5) Can this meter socket be installed outdoors?
Yes. The enclosure is UL Listed and rated Type 3R, which is the standard rainproof designation for outdoor service equipment. Construction is G90 galvanized steel with a powder coat finish for corrosion resistance in exterior installs.
6) Is the top of this Milbank enclosure drilled for a conduit hub?
No, it ships plain top. Cable entry is configured for underground feed, so the design intent is conduit up from below rather than an overhead service drop through a hub. If you need a top entry, you would be drilling and adding a hub yourself, which affects the Type 3R rating.
7) Does the U3342-O let the utility test the meter without dropping the service?
It includes a test switch provision, which is the mounting space and prep for a test switch block so the meter can be tested and the CT secondaries shorted safely during maintenance. The switch itself is a separate item, and most utilities specify which make and model they will accept, so confirm that with them before you order the switch.
8) Do I need a ring type or ringless meter socket for my utility?
That is the utility's call, not the installer's, and they do not mix. The U3342-O is ring type, meaning the meter is retained by a sealing ring around the cover opening. Ringless sockets use a lift-off cover that captures the meter instead. Utilities standardize on one style per territory, so verify which your serving utility accepts before ordering this one.
9) Is there a grounding point inside this meter socket enclosure?
A ground lug is provided for the equipment grounding conductor. Terminals are single mechanical type, and the socket uses glass polyester insulation behind the jaws.
10) What is the exact Milbank part number for this 13 terminal CT socket, and what UNSPSC code should I use for procurement?
The model is Milbank U3342-O, a ring type meter socket. For purchasing systems, the UNSPSC classification is 39121102.
