Milbank UC7461 13 Terminal Ring Type Meter Sockets with Test Switch Options

Milbank 13 Terminal Ring Type Meter Socket 20A 3 Phase 600V with Test Switch Options

(No reviews yet) Write a Review

Model: UC7461-WL-171

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,807.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 13 Terminal Ring Type Meter Socket 20A 3 Phase 600V with Test Switch Options

Professional 3 Phase Metering Solution with Test Switch Capability

The Milbank 13 Terminal Ring Type Meter Socket delivers reliable 3 phase electrical metering for commercial and industrial applications. Engineered with a robust G90 galvanized steel construction and powder coat finish, this UL Listed Type 3R rated meter socket provides 20 continuous ampere capacity at 600 volts AC. The single position design accommodates overhead or underground cable entry with 12-10 AWG wire range compatibility and includes ground lug equipment grounding for safe installation.

Professional Features & Benefits

  • 20 Continuous Ampere Rating: Provides reliable current handling capacity for demanding 3 phase electrical metering applications.
  • 3 Phase 600V AC Operation: Supports high voltage commercial and industrial electrical systems with professional-grade performance.
  • 13 Terminal Ring Type Design: Offers comprehensive connection points for complex metering configurations and test switch integration.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in challenging environments.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and weather resistance for outdoor installations.
  • Overhead or Underground Cable Entry: Provides installation flexibility for various electrical service configurations.
  • Glass Polyester Insulation: Maintains electrical integrity and safety with high-performance insulation materials.

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 - 10 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 13 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: CT20
  • Product Height: 20 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 12W x20H
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 12 IN

Professional Applications

  • Commercial Building Electrical Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Property Metering
  • Manufacturing Plant Electrical Distribution
  • Warehouse and Distribution Centers
  • Professional Office Buildings
  • Retail and Commercial Establishments

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R weather resistance rating. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while glass polyester insulation maintains electrical safety and performance in demanding commercial and industrial environments.

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
12 - 10 AWG
Load Side Wire Range:
12 - 10 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
13 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
CT20
Product Height:
20 IN
Product Length:
4.125 IN
Product Size:
4.125L x 12W x20H
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
20
Product Width:
12 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Single Mechanical
Number of Phases:
3
Frequency:
60 hertz
Number of Terminations:
13

Milbank UC7461-WL-171 – Frequently Asked Questions

1) Will the Milbank UC7461 meter socket work on a 3 phase 600V service?
That's exactly what the UC7461 is built for: 3 phase, 600 volts AC, 60 hertz, with a 13 terminal ring type jaw configuration. The 13 terminal arrangement is what a 3 phase 4 wire meter installation needs, and it gives you the connection points for the test switch as well. One meter position per enclosure.
2) Why is this Milbank meter socket only rated 20 amps when the service is much larger?
Because it's a CT rated socket, not a self contained one. The UC7461 carries a 20 continuous ampere rating and a CT20 product family code, meaning it sits downstream of current transformers that do the actual load metering. The 20 amps is the secondary current from the CTs, not the service size. If you're metering a service directly at full load current, this is the wrong socket and you want a self contained socket rated for that service amperage instead.
3) Which hub size should I order on the Milbank UC7461 meter socket?
Match it to the conduit carrying your CT secondary leads. Three choices: a small hub opening on UC7461-RL and UC7461-RL-131, a 1 inch hub on UC7461-WL-171, and a 1.25 inch hub on UC7461-YL-TGE-DES. The socket accepts overhead or underground cable entry either way, so the hub selection is about conduit trade size, not service direction.
4) Can the Milbank UC7461 meter socket be mounted outdoors?
Yes. It's UL Listed and Type 3R rated, so it's suited to outdoor surface mounting where rain and falling debris are the concern. Enclosure is G90 galvanized steel with a powder coat finish. Type 3R is not a washdown or dust tight rating, so for interior process areas or hosedown environments you'd specify a higher enclosure type.
5) What is the difference between the test switch provision and test switch prewired options on the Milbank UC7461?

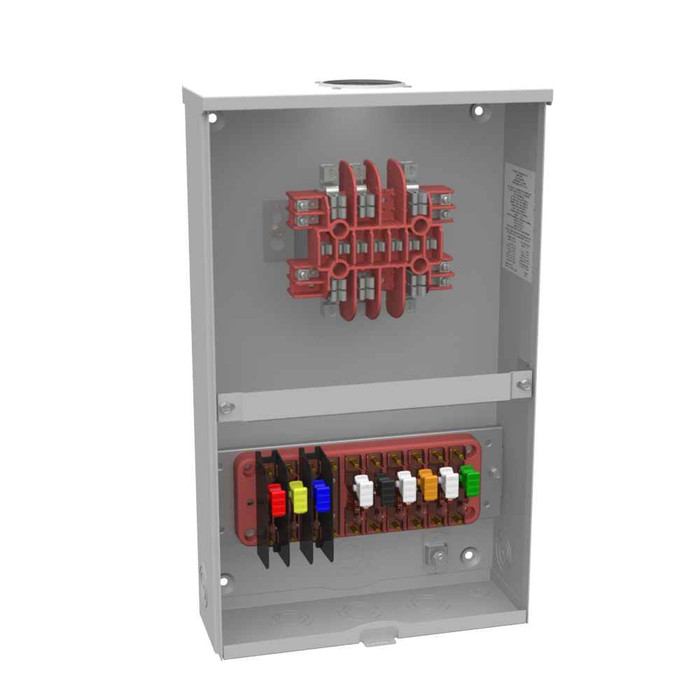

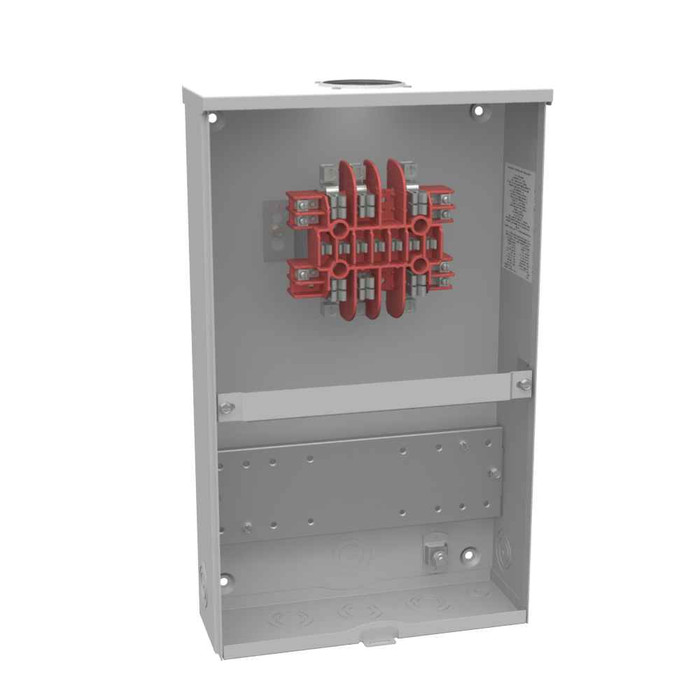

Provision means the socket is built to accept a test switch but ships without one, so you supply and wire the switch yourself. Prewired means the test switch comes installed and wired to the meter terminals, so the can lands on the wall ready for the utility. Four builds are offered: UC7461-RL with small hub opening and test switch provision, UC7461-RL-131 with small hub opening and test switch prewired, UC7461-WL-171 with a 1 inch hub and test switch prewired, and UC7461-YL-TGE-DES with a 1.25 inch hub, test switch installed, and Tucson Gas and Electric specification.
6) Does the Milbank UC7461 meter socket include a main breaker or bypass?
No on both. The UC7461 is a straight metering enclosure: no main breaker, no bypass provision, no receptacles. Disconnecting means is handled upstream or downstream in separate gear, and because there's no lever bypass, pulling the meter on a live installation is done through the test switch rather than at the socket. If your utility requires a bypass at the meter, this build won't satisfy it.
7) How much wall space do I need for the Milbank UC7461 meter socket?
Enclosure measures 4.125 inches deep by 12 inches wide by 20 inches high. It's a surface mount can, so plan on the full 20 inch height of clear wall plus working clearance in front per code for the utility and for anyone opening the test switch.
8) Is the Tucson Gas and Electric version of the Milbank UC7461 usable in other utility territories?
UC7461-YL-TGE-DES is built to a Tucson Gas and Electric specification with a 1.25 inch hub and the test switch installed. Meter socket acceptance is set by the serving utility, so outside that territory order against your own utility's approved list. For a general 13 terminal CT rated socket the plain builds are UC7461-RL, UC7461-RL-131, and UC7461-WL-171.
9) What else do I need to complete a CT metering installation with the Milbank UC7461?
The socket is one piece of the assembly. You'll still need the current transformers and a CT cabinet or enclosure sized to the service, the secondary conductors in 12 to 10 AWG to land in the socket terminals, conduit matched to the hub you ordered, and a test switch if you order the UC7461-RL provision build rather than one of the prewired versions. No breaker is in the can, so overcurrent protection lives in separate gear.
10) Is the Milbank UC7461 a ringless or ring type meter socket?
Ring type. The meter is retained by a sealing ring around the cover opening, which is the style many utilities require for 13 terminal CT metering. If your utility spec calls for ringless, this socket does not meet it and you need a ringless bodied socket instead.
11) Will the Milbank UC7461 meter socket hold up on a coastal or exposed industrial site?
Enclosure is G90 galvanized steel with a powder coat finish, and internal insulation is glass polyester. G90 is a heavier zinc coating than standard galvanized sheet, which is what gives the can its corrosion resistance outdoors under the Type 3R rating. For heavy salt or chemical exposure, a stainless enclosure is the usual step up.
