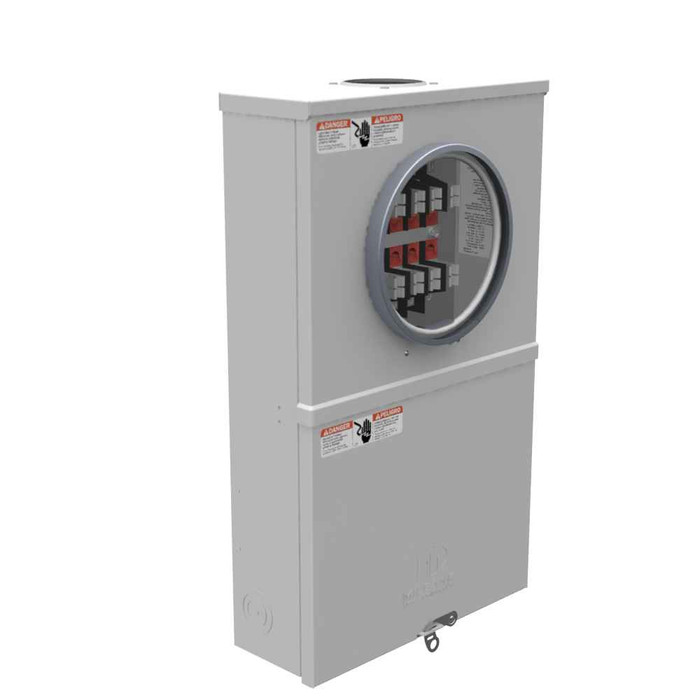

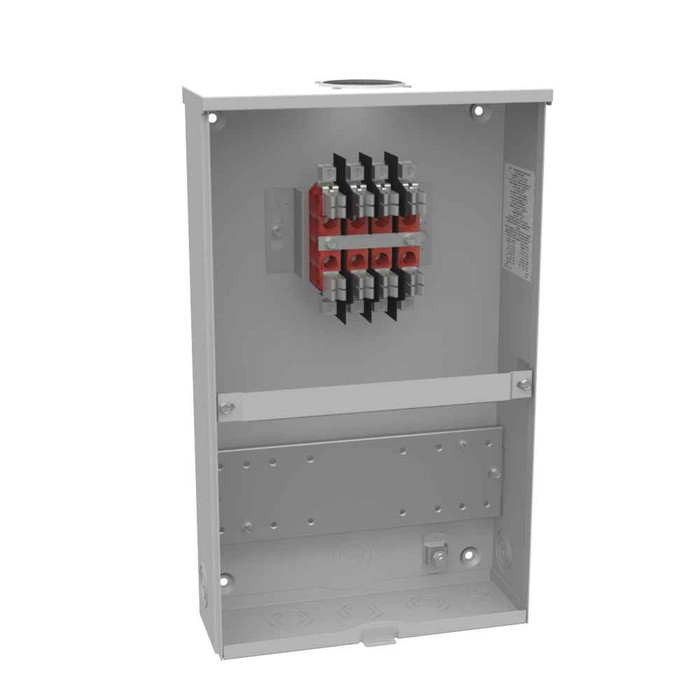

Milbank UC7460-RL 8 Terminal Ring Type Small Hub Open Test Switch Provision

Milbank 8 Terminal Ring Type Meter Socket 20A 3 Phase 600V with Test Switch Provision (2)

(No reviews yet) Write a Review

Model: UC7460-RL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$551.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 8 Terminal Ring Type Meter Socket 20A 3 Phase 600V with Test Switch Provision

Professional metering solution for commercial and industrial electrical systems

The Milbank 8 Terminal Ring Type Meter Socket delivers reliable 3 phase metering capability with 20 continuous ampere rating and 600V AC capacity. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this single position meter socket provides durable performance for overhead or underground cable entry applications with test switch provision for enhanced operational flexibility.

Professional Features & Benefits

  • 20 Continuous Ampere Rating: Provides reliable current handling capacity for commercial and light industrial metering applications.
  • 3 Phase 600V AC: Supports high-voltage three-phase electrical systems with professional-grade voltage tolerance.
  • 8 Terminal Ring Type Design: Offers secure mechanical connections with single mechanical terminals for dependable electrical contact.
  • G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and long-term durability in demanding environments.
  • Type 3R Enclosure Rating: Provides weather-resistant protection suitable for outdoor installations and harsh conditions.
  • Test Switch Provision: Enables safe meter testing and maintenance procedures without service interruption.
  • UL Listed Certification: Ensures compliance with rigorous safety standards and electrical code requirements.

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Hub Opening
  • Insulation: Glass Polyester
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 - 10 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 8 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: CT20
  • Product Height: 20 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 12W x20H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 12 IN

Professional Applications

  • Commercial Building Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Properties
  • Manufacturing Operations
  • Retail and Office Buildings
  • Educational Institutions
  • Healthcare Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while glass polyester insulation and single mechanical terminals provide dependable electrical performance for professional metering applications.

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Hub Opening
Insulation:
Glass Polyester
Line Side Wire Range:
12 - 10 AWG
Load Side Wire Range:
12 - 10 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
8 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
CT20
Product Height:
20 IN
Product Length:
4.125 IN
Product Size:
4.125L x 12W x20H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
20
Product Width:
12 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank UC7460-RL – Frequently Asked Questions

1) Will the Milbank UC7460-RL meter socket work on a 3 phase 4 wire 208Y/120 service?
The UC7460-RL is an 8 terminal 3 phase socket rated 600 volts AC at 60 Hertz, so it covers the common three phase services up through 480Y/277 and 600V. The 8 jaw configuration is the three phase pattern, and it is a single meter position. Confirm the jaw count and terminal arrangement your utility requires, because utilities specify the socket pattern for the service they are metering.
2) Can the Milbank UC7460-RL be mounted outdoors on an exterior wall?
Yes. The enclosure is Type 3R rated and built from G90 galvanized steel with a powder coat finish, which is the standard outdoor rain tight construction for meter equipment. It is a surface mount enclosure, so it lands flat on the wall or on unistrut rather than recessing into it. It is also UL Listed.
3) What wire size does the Milbank UC7460-RL meter socket accept?
Both line side and load side terminals take 12 to 10 AWG, on single mechanical lugs. That range suits CT secondary and potential leads. There is a separate ground lug for the equipment grounding conductor. Anything heavier than 10 AWG will not land in these terminals.
4) Does the Milbank UC7460-RL have a meter bypass or a main breaker?
Neither. The UC7460-RL is a no bypass socket with no main breaker and zero breaker spaces. It does have a test switch provision, which is how you take the meter out of service for testing on a CT installation. If your utility requires a lever bypass or you need overcurrent protection in the same can, this is not the right socket.
5) Is the Milbank UC7460-RL a ringless or ring type socket?
Ring type. The meter is secured with a sealing ring around the meter collar, which is what many utilities require. If your utility standard calls for a ringless cover, a ring type socket will not pass their inspection, so check the utility spec before ordering.
6) Can I bring conduit into this Milbank socket from overhead, or does it have to come from below?
Either works. The UC7460-RL is built for overhead or underground cable entry and comes with a small hub opening closing plate at the top, so you can fit a hub for an overhead drop or plate it off and land conduit from the bottom for an underground feed.
7) Do I need to order anything else with the Milbank UC7460-RL to complete a CT metering installation?
The socket is one piece of the job. It has no bypass, no main breaker, and no receptacles, so it does not provide disconnecting means or overcurrent protection. A CT metering install also needs the current transformers and a CT cabinet or enclosure ahead of it, plus a hub if you are entering overhead through the small hub opening. Grounding lands on the built in ground lug.
8) How many meters can the Milbank UC7460-RL socket hold for a multi tenant building?
One. It is a single position socket, so each metered tenant needs their own. For a multi tenant property where you want several meters in one assembly, you want a multi position socket or a meter stack rather than individual single position cans.
9) What is the exact model number to order this Milbank 8 terminal CT rated meter socket?
Milbank UC7460-RL. That is the manufacturer part number for the 8 terminal ring type socket with the small hub opening and test switch provision, 20 amp, 3 phase, 600V.
10) What insulates the jaws in the Milbank UC7460-RL meter socket?
Glass polyester. That is the jaw base material, chosen for dielectric strength and heat resistance at 600 volts, and it holds up better than phenolic in the damp and temperature swings a Type 3R outdoor enclosure sees.
