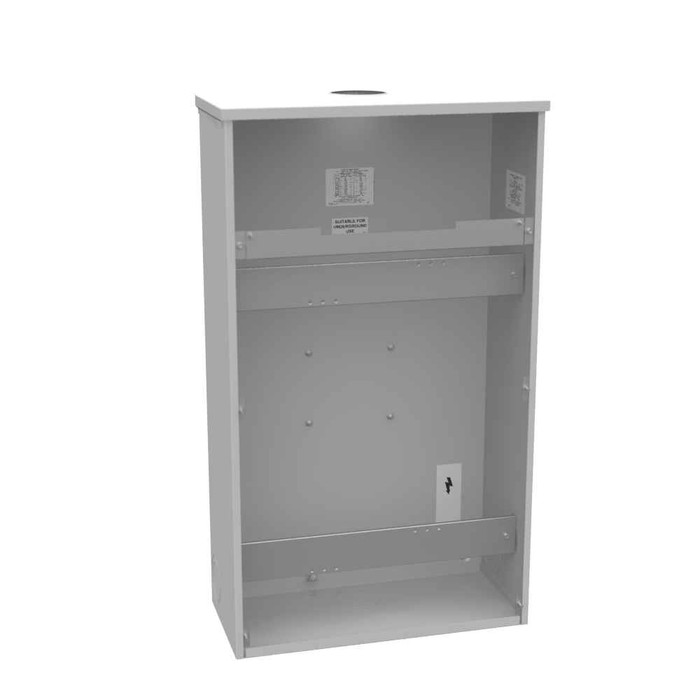

Milbank Ring Type Meter Socket 6 Terminal 20A 1 Phase 600V with Test Switch Provision

Milbank Ring Type Meter Socket 6 Terminal 20A 1 Phase 600V with Test Switch Provision

Professional single-position meter socket with test switch provision for reliable electrical service metering

The Milbank Ring Type Meter Socket delivers professional-grade electrical metering with 6 terminal configuration and 20 continuous ampere rating. This single-position, 1 phase unit operates at 600 volts AC and features G90 galvanized steel construction with powder coat finish for durability. The surface mount design includes large hub opening for overhead cable entry and ground lug for equipment grounding, making it ideal for residential and light commercial applications requiring reliable meter socket performance.

Professional Features & Benefits

• 20 Continuous Ampere Rating: Provides reliable current handling capacity for residential and light commercial electrical service applications.
• 6 Terminal Ring Type Design: Ensures secure electrical connections with single mechanical terminals for dependable meter interface.
• 600V AC Operating Voltage: Supports standard electrical service voltages with 60 Hz frequency rating for versatile installation compatibility.
• G90 Galvanized Steel Construction: Delivers long-lasting durability with powder coat finish and Type 3R rating for outdoor weather resistance.
• Test Switch Provision: Enables safe meter testing and maintenance procedures without service interruption.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
• Large Hub Opening Design: Accommodates overhead cable entry with proper wire range support for 14-10 AWG conductors.

Technical Specifications

• Amperage Rating: 20 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Hub Opening
• Insulation: Glass Polyester
• Line Side Wire Range: 14 - 10 AWG
• Load Side Wire Range: 14 - 10 AWG
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 6 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: TRNS
• Product Height: 42.063 IN
• Product Length: 11 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 11L x 24W x42.063H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 24 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service metering installations
• Light commercial facility power monitoring
• Multi-unit residential properties
• Small office and retail establishments
• Utility company meter interface applications
• Electrical contractor service upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant rating. The G90 galvanized steel construction with powder coat finish ensures long-term durability in outdoor installations, while glass polyester insulation provides dependable electrical performance for professional electrical service applications.
