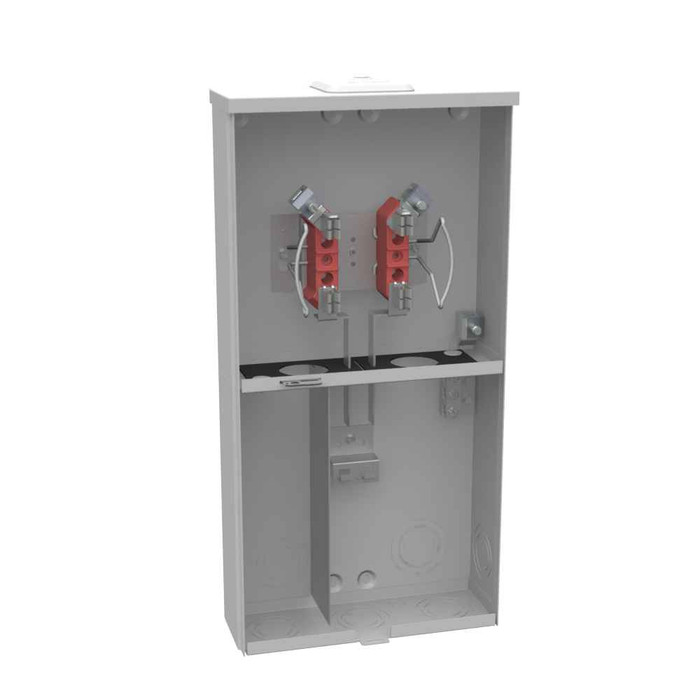

Milbank 22x11x3.75 G90 Galvanized Steel Ringless Meter Socket, 4 Terminal, 100 Amp Main Breaker, Type 3R

Milbank 100 Amp 1-Phase Ringless Meter Socket with Main Breaker - G90 Galvanized Steel Type 3R Enclosure

(No reviews yet) Write a Review

Model: U3499-XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.28
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 100 Amp 1-Phase Ringless Meter Socket with Main Breaker - G90 Galvanized Steel Type 3R Enclosure

Professional metering solution with integrated main breaker protection

The Milbank 100 Amp 1-Phase Ringless Meter Socket delivers reliable electrical metering and main breaker protection in a durable G90 galvanized steel enclosure with powder coat finish. This Type 3R rated unit features 4-terminal configuration with lay-in terminals and accommodates both overhead and underground cable entry for versatile installation applications.

Professional Features & Benefits

  • 100 Amp Continuous Rating: Provides robust capacity for residential and light commercial electrical service with reliable current handling.
  • Integrated Main Breaker: Combines metering and main disconnect protection in a single compact unit for streamlined electrical service.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability with powder coat finish protection.
  • Type 3R Enclosure Rating: Ensures reliable outdoor performance with protection against rain, sleet, and ice formation.
  • 4-Terminal Ringless Design: Simplifies meter installation and removal without requiring meter rings for enhanced serviceability.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

  • Amperage Rating: 100 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 3 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 - 2/0 AWG
  • Load Side Wire Range: 4 - 1/0 AWG
  • Number Of Jaws: 4 Terminal
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 22 IN
  • Product Length: 3.75 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 3.75L x 11W x22H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 11 IN

Professional Applications

  • Residential electrical service installations
  • Small commercial and retail facilities
  • Multi-unit residential properties
  • Professional office buildings
  • Light industrial applications
  • Utility metering and service upgrade projects

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R outdoor rating for dependable long-term performance. The G90 galvanized steel construction with powder coat finish ensures superior corrosion resistance, while the 4-terminal ringless design and lay-in terminals provide professional-grade serviceability for electrical contractors and utility professionals.

Manufacturer Resources

Product Specs

Amperage Rating:
100 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
3 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 - 2/0 AWG
Load Side Wire Range:
4 - 1/0 AWG
Number Of Jaws:
4 Terminal
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
22 IN
Product Length:
3.75 IN
Product Size:
3.75L x 11W x22H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
100
Product Width:
11 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4
Product Group:
Metering & Service Entrance

Milbank U3499-XL – Frequently Asked Questions

1) Will a Milbank U3499-XL ringless meter socket work with my utility's meter, and how do I know if I need 4 jaws?
The U3499-XL is a 4-terminal (4-jaw) single-position socket for 1-phase service up to 240 volts AC at 60 Hz. That is the standard arrangement for a 120/240V single-phase residential or light commercial meter. If your utility specifies a 5-jaw socket (network metering) or a 7-jaw for 3-phase, this is not the right can. Utilities also approve sockets by list, so the ringless style has to be the style your utility accepts before anything else matters.
2) What is the difference between the two Milbank U3499-XL options, the standard one and the 100 Main AMP Breaker one?
Two orderable parts here: U3499-XL and U3499-XL-100. The -100 is the version supplied with the 100 amp main breaker installed, so you get metering and the service disconnect in one can. Order the -100 if you want the breaker in the box; the plain U3499-XL is the socket without it. Either way the enclosure, the 4-terminal ringless configuration and the 100 amp continuous rating are the same.
3) What size service conductors will land in a Milbank 100 amp ringless meter socket?
Line side terminals take 6 AWG through 2/0 AWG, and the load side takes 4 AWG through 1/0 AWG. So a typical 100 amp service run in 2 AWG copper or 1/0 aluminum lands fine on the line side, and the feeder to the panel has to fall in the 4 to 1/0 window on the load side. They are lay-in terminals, which means you drop the conductor in rather than fishing it through a hole. Grounding is a 3 barrel ground lug.
4) Can the Milbank U3499-XL be fed from an underground service, or is it overhead only?
Both. Cable entry is overhead or underground, so the same can works for a weatherhead drop or a lateral coming up from below. It ships with a small closing plate for the hub opening, so if you are feeding overhead through the top you buy the meter hub sized to your conduit separately and pull the plate.
5) Does a ringless meter socket need a meter ring, and how is it different from a ring-type socket?
No ring. A ringless socket uses a hinged or lift-off cover that captures the meter, so the meter goes in and comes out without a sealing ring around the collar. A ring-type socket needs that ring plus a utility seal. Which style you can install is not your choice, it is the utility's: many require one style and will not set a meter on the other. Confirm the ringless style is on their approved list before ordering.
6) Can I pull the meter and still keep power on for service work with this Milbank socket?
No. The U3499-XL has no bypass provision, so there is no lever or horn bypass to keep the load energized while the meter is out. Utilities on commercial or critical accounts often require a bypass socket for exactly this reason. If yours does, you need a lever bypass or horn bypass version instead of this one.
7) Do I still need a separate main disconnect if I install the Milbank U3499-XL-100?
The U3499-XL-100 comes with the 100 amp main breaker in the socket, so the service disconnect is at the meter and the feeder to the panel is protected from there. That lets you run a main lug panel downstream instead of a main breaker panel. The plain U3499-XL is the socket alone, so with that one your disconnect has to live somewhere else.
8) Can a Milbank U3499-XL meter socket be mounted outside on an exposed wall?
Yes, outdoors is what it is built for. The enclosure is Type 3R, which is the outdoor rating for rain, sleet and ice, and it is G90 galvanized steel with a powder coat finish for corrosion resistance. It is a surface mount can, so it bolts flat to the wall or a meter pole backboard rather than recessing into the wall.
9) How much wall space does a Milbank 100 amp ringless meter socket take up?
The can measures 3.75L x 11W x 22H inches, so figure roughly 11 inches of wall width and 22 inches of height, standing about 3.75 inches off the wall. Add the working clearance your inspector wants in front of it and the height range the utility requires to the meter center.
10) Is the Milbank U3499-XL UL Listed for a permitted electrical service?
UL Listed, and rated Type 3R for outdoor use. Those are the two marks an inspector looks for on a service entrance can. Note it is a metering and main disconnect enclosure with no receptacles built in, so a temp-power pedestal with GFCI outlets is a different product.
