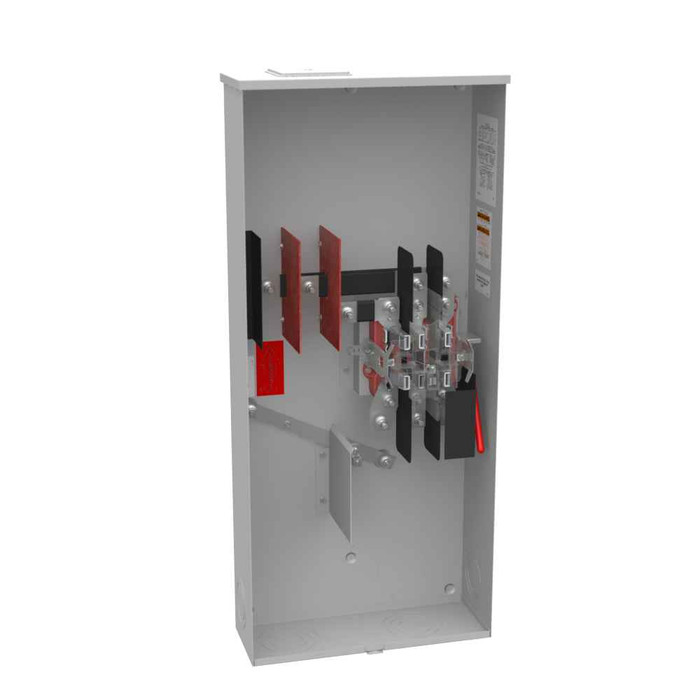

Milbank 320 Amp 3 Phase Ringless Lever Bypass Meter Socket with 7 Terminal Configuration

Milbank 320 Amp 3 Phase Ringless Lever Bypass Meter Socket with 7 Terminal Configuration

Professional Power Metering & Service Disconnect Solution

The Milbank 320 Amp 3 Phase Ringless Lever Bypass Meter Socket delivers reliable power metering and service disconnect capabilities for commercial and industrial applications. Featuring robust G90 galvanized steel construction with powder coat finish and UL Listed Type 3R rating, this professional-grade meter socket provides 320 continuous ampere capacity with lever bypass functionality and 7 terminal configuration for versatile installation requirements.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Handles high-capacity electrical loads for demanding commercial and industrial applications with reliable performance.
• 3 Phase Configuration: Supports three-phase power systems commonly required in commercial facilities and industrial operations.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without interrupting power service to critical loads.
• G90 Galvanized Steel with Powder Coat: Provides superior corrosion resistance and long-lasting durability in outdoor environments.
• UL Listed Type 3R Rating: Meets stringent safety standards and provides protection against weather conditions for outdoor installations.
• 7 Terminal Configuration: Accommodates complex wiring requirements with multiple connection points for enhanced flexibility.
• Multiple Cable Entry Options: Supports overhead, underground, and side wireway connections for versatile installation configurations.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead and Underground and Side Wireway
• Departent: Electrical
• Equipment Ground: Grounding Stud
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 7 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 3 Phase
• Product Family Code: 7T32
• Product Height: 40.5 IN
• Product Length: 6.5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 6.5L x 17.75W x40.5H
• Product Type: Ringless Meter Socket
• Special Features: Westar Energy
• Standard: UL Listed;Type 3R
• Terminal: 3/8 Inch Stud
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 17.75 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Buildings and Office Complexes
• Industrial Facilities and Manufacturing Plants
• Multi-Unit Residential Properties
• Retail and Shopping Centers
• Healthcare and Educational Facilities
• Municipal and Government Buildings
• Data Centers and Telecommunications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection rating. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance, while the glass polyester insulation and grounding stud provide enhanced safety and performance in demanding electrical service applications.
