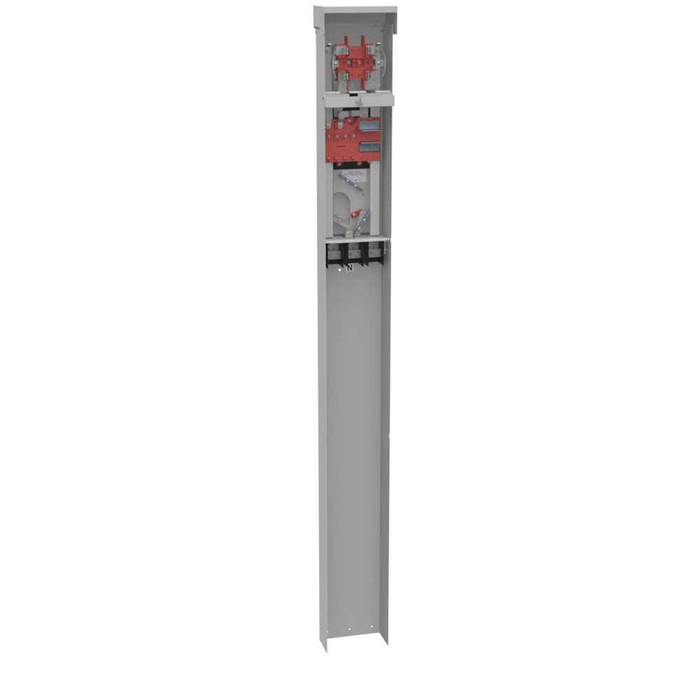

Milbank 200A 1-Phase Meter Socket with Load Center Plain Top Direct Bury Pedestal Mount

Milbank 200A 1-Phase Meter Socket with Load Center Plain Top Direct Bury Pedestal Mount

Professional electrical metering and distribution solution for underground service applications

The Milbank 200A 1-Phase Meter Socket with Load Center delivers reliable electrical metering and distribution for residential and commercial underground service installations. This pedestal-mounted unit features a robust G90 galvanized steel construction with powder coat finish and fiberglass with resin insulation, providing durable performance in outdoor environments with Type 3R weather protection.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides substantial electrical capacity for demanding residential and light commercial applications with reliable current handling.
• 1-Phase 240V AC Operation: Compatible with standard residential electrical systems, ensuring seamless integration with existing infrastructure.
• Underground Cable Entry: Designed specifically for direct bury applications, eliminating the need for overhead service connections and providing clean installations.
• G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-lasting durability in outdoor environments.
• Type 3R Weather Protection: UL Listed enclosure rating provides reliable protection against rain, sleet, and ice formation for outdoor installations.
• 4 Terminal Configuration: Double mechanical terminals accommodate wire ranges from 6 AWG to 350 kcmil for flexible connection options.
• Pedestal Mount Design: 78-inch height provides convenient access for meter reading and maintenance while meeting utility requirements.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket With Load Center
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Fiberglass with Resin
• Line Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: Breaker Provision
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Height: 78 IN
• Product Length: 4.01 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Pedestal
• Product Size: 4.01L x 8.16W x78H
• Standard: UL Listed;Type 3R
• Terminal: Double Mechanical
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 8.16 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential underground electrical service installations
• Multi-unit residential properties requiring individual metering
• Light commercial facilities with underground utility connections
• New construction projects with direct bury electrical requirements
• Utility company approved metering installations
• Professional electrical contractor installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection, ensuring dependable performance in demanding outdoor environments. The robust G90 galvanized steel construction with powder coat finish and fiberglass insulation provides long-term durability and professional-grade electrical distribution for critical metering applications.
