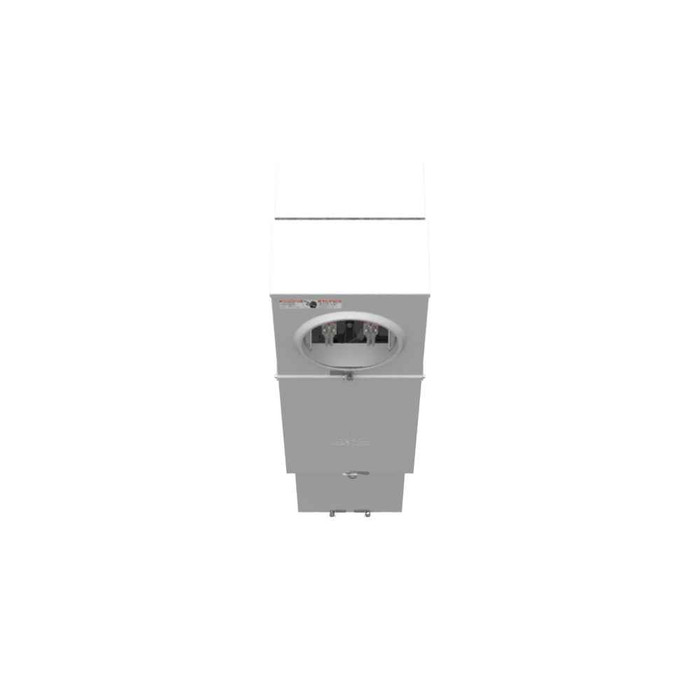

Milbank U4093N-O 4 Terminal Ringless Plain Top 1-main Breaker Provision Single Pedestal Direct Bury Main Breaker

Milbank 200A Single Phase Ringless Meter Socket with Load Center - 4 Terminal Pedestal Mount Direct Bury

(No reviews yet) Write a Review

Model: U4093N-O

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,097.33
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Single Phase Ringless Meter Socket with Load Center

Professional electrical metering and distribution solution for residential and commercial applications

The Milbank 200A Single Phase Ringless Meter Socket with Load Center delivers reliable electrical metering and distribution in a durable pedestal-mounted design. Featuring 200 continuous ampere rating with single phase 240V AC capacity, this UL Listed Type 3R unit combines meter socket functionality with integrated load center for streamlined electrical service. The G90 galvanized steel construction with powder coat finish ensures long-lasting performance in direct bury underground applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust electrical capacity for residential and light commercial service requirements with reliable current handling.
  • 4 Terminal Ringless Design: Simplifies meter installation and maintenance with secure mechanical terminal connections for enhanced service reliability.
  • Integrated Load Center: Combines meter socket with 5 branch circuit capacity for consolidated electrical distribution and reduced installation complexity.
  • Type 3R Enclosure Rating: Delivers weather-resistant protection suitable for outdoor pedestal mounting and direct bury applications.
  • G90 Galvanized Steel Construction: Ensures superior corrosion resistance and structural integrity with durable powder coat finish for extended service life.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
  • Underground Cable Entry: Accommodates direct bury installation with 6 AWG to 350 kcmil wire range for flexible conductor sizing options.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main And Load Center
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 4 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Branch Circuits: 5
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MHSP
  • Product Height: 48 IN
  • Product Length: 9.625 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 9.625L x 9.875W x48H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 9.875 IN

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Residential electrical service installations requiring combined metering and distribution
  • Small commercial facilities needing compact electrical service solutions
  • Multi-unit properties with individual metering requirements
  • Replacement installations for existing pedestal-mounted electrical services
  • New construction projects requiring underground electrical service connections
  • Mobile home parks and RV facilities with individual electrical service needs

Why Choose Milbank Quality?

Milbank delivers proven reliability in electrical distribution equipment with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability in demanding outdoor environments, while the glass polyester insulation provides superior electrical performance and safety for professional installations.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Departent:
Electrical
Equipment Ground:
4 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Branch Circuits:
5
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MHSP
Product Height:
48 IN
Product Length:
9.625 IN
Product Size:
9.625L x 9.875W x48H
Product Type:
Ringless Meter Socket
Standard:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Width:
9.875 IN
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
