Milbank 200 Amp 4 Terminal Rin...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,873.75

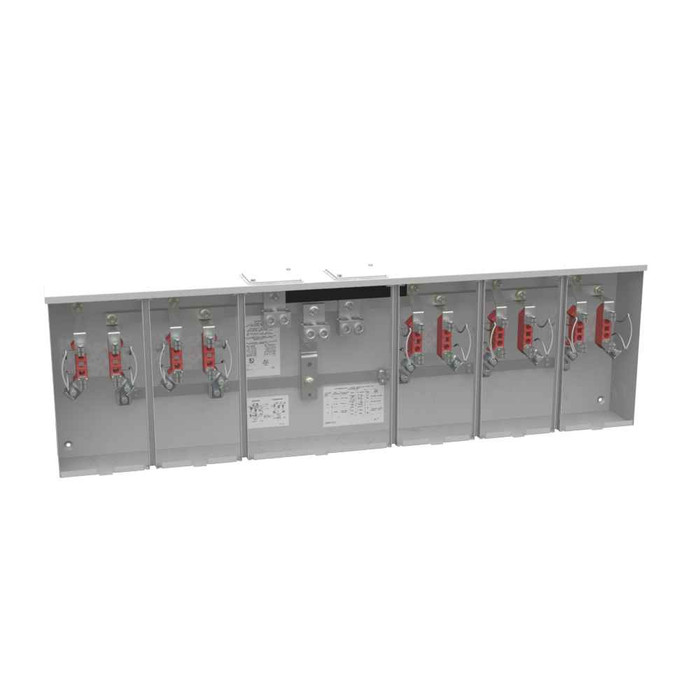

Milbank 4 Terminal Ringless Large Closing Plate 5 Position Meter Socket, 200 Ampere

Milbank 200 Amp 4 Terminal Ringless Meter Socket with Large Closing Plate - 1 Phase Surface Mount

(No reviews yet) Write a Review

Model: U1255-X-KK-K1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,873.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200 Amp 4 Terminal Ringless Meter Socket with Large Closing Plate

Professional 1 Phase Metering Solution with G90 Galvanized Steel Construction

The Milbank 200 Amp 4 Terminal Ringless Meter Socket delivers reliable single-phase electrical metering with professional-grade G90 galvanized steel construction and powder coat finish. This surface-mount meter socket features a large closing plate design and accommodates wire ranges from 6 AWG to 350 kcmil, providing versatile installation options for residential and commercial applications requiring 300V AC metering at 60 Hz.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable current capacity for demanding applications
  • 4 Terminal Ringless Design: Simplifies installation and maintenance with secure terminal connections without ring lugs
  • G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in various environmental conditions
  • Large Closing Plate: Offers enhanced protection and professional appearance with secure hub closure
  • UL Listed Type 3R Rating: Ensures safety compliance and weather resistance for outdoor installations
  • Wide Wire Range Compatibility: Accommodates 6 AWG to 350 kcmil conductors for flexible installation requirements
  • Surface Mount Design: Enables straightforward installation on various mounting surfaces

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: G200
  • Product Height: 16 IN
  • Product Length: 5.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 5.125L x 54.688W x16H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: 300 Volts Alternating Current
  • Width: 54.688 IN

Professional Applications

  • Residential Electrical Service Metering
  • Commercial Building Electrical Systems
  • Multi-Unit Property Installations
  • Professional Office Buildings
  • Retail and Light Commercial Facilities
  • Industrial Metering Applications
  • Utility Service Connections

Why Choose Milbank Quality?

Milbank meter sockets provide dependable electrical metering solutions with UL Listed safety compliance and Type 3R weather resistance. The G90 galvanized steel construction with powder coat finish ensures long-lasting performance in demanding environments, while the professional 4 terminal ringless design simplifies installation and maintenance for electrical contractors and utility professionals.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
G200
Product Height:
16 IN
Product Length:
5.125 IN
Product Size:
5.125L x 54.688W x16H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
300 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
54.688 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U1255-X-KK-K1 – Frequently Asked Questions

1) Will a 4 terminal ringless meter socket work for a standard 200 amp residential single phase service?
That's exactly what the Milbank U1255-X is built for. It's a 4 jaw, single phase socket rated 200 continuous amperes at 300 volts AC, 60 Hz, which covers a typical 120/240V single phase residential or light commercial service. Four jaws is the standard single phase self-contained arrangement. Before you set it, confirm your serving utility accepts a ringless cover socket, since some utilities specify ring type instead.
2) Does this Milbank meter socket come with a main breaker or disconnect?
No. The U1255-X is a meter socket only, with no main breaker and no receptacles. You'll need a separate service disconnect or a main breaker panel downstream of it. If you want metering and the disconnect in one enclosure, you're looking for a meter main combination instead, not this socket.
3) What size conductors can I land in a 200A Milbank U1255-X meter socket?
Load side lugs take 6 AWG through 350 kcmil. That range covers the usual 200 amp service conductors, including 2/0 copper or 4/0 aluminum SER, with room up to 350 kcmil if the run length pushed you to upsize for voltage drop.
4) Can this meter socket be mounted outdoors on an exterior wall?
Yes. It's UL Listed with a Type 3R enclosure rating, which is the rain tight rating used for outdoor service equipment, and the can is G90 galvanized steel with a powder coat finish for corrosion resistance. It's a surface mount unit, so it bolts flat to the wall or a backing board rather than recessing into it.
5) What is the difference between the hub options on the Milbank U1255-X, K1 through K4?
The base U1255-X ships with a large closing plate over the hub opening, so you can bring conduit in through the plate or through a hub you add later. The hub-equipped versions come with the hub factory fitted: K1, K2, K3, and K4 are the available hub sizes, ordered as U1255-X-K4, U1255-X-K2-CAPL (which adds a sealing cap), and the KK combinations. Pick the hub that matches the service entrance conduit your utility requires overhead; if you're feeding underground from below, the standard large closing plate version is usually what you want.
6) What does the KK in the Milbank U1255-X-KK part numbers mean?
KK is the horn bypass option. A horn bypass lets the utility pull or change the meter without dropping power to the customer, and many utilities require it on 200 amp services. It's available combined with hubs, for example U1255-X-KK-K1 with a K1 hub or U1255-X-KK-K4-PED for pedestal mounting. If your utility doesn't call for bypass, the plain U1255-X is the one to order.
7) My utility spec sheet lists a BL, BLG, DLC or QG code. Which Milbank part do I order?
Those suffixes are utility specific builds of the same 200 amp 4 terminal socket. Order U1255-X-KK-K3-BL for BL, U1255-X-KK-K3-BLG for BLG, U1255-X-KK-K3-DLC for DLC, and U1255-X-QG-KK-K4 for QG. All four include the horn bypass. Match the letter code on your utility's approved equipment list exactly, because a socket built to a different utility's spec will fail inspection even though the electrical ratings are identical.
8) Is there a lockable version of this Milbank meter socket for a property where tampering is a concern?
Yes, U1255-X-HSP is the same 200 amp ringless socket built with a stainless steel hasp, which gives you a padlock point on the cover. That's the one property managers usually want on multi-family and rental sites where the meter stack is publicly accessible. The hasp version has to be ordered as such; you can't add it to the plain U1255-X later.
9) Ringless versus ring type meter socket, which one do I need?
It's the utility's call, not yours. The Milbank U1255-X is ringless, meaning the cover itself slides over the socket and is sealed rather than being clamped by a separate sealing ring. Ringless is common across much of the country and makes cover removal simpler for meter work. If your serving utility's approved list specifies ring type, this socket won't be accepted and you need a ring type can instead.
10) Is there a version of this Milbank socket for a pedestal or freestanding installation instead of a wall?
U1255-X-KK-K4-PED is the pedestal mount build, with horn bypass and a K4 hub. Use that one where there's no building wall to hang the meter on, such as a manufactured home site, a well or pump service, or a lot where the service lands at the property line. The rest of the U1255-X family is surface mount for wall installation.
11) For a procurement spec, what UNSPSC code and product family does this Milbank socket fall under?
The UNSPSC is 39121102 and Milbank's family code for it is G200. Those two plus the MPN, U1255-X for the base unit, are what you need to line it up on a purchase requisition or an approved materials list.
