Milbank 320 Amp 1-Phase Ringle...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$854.76

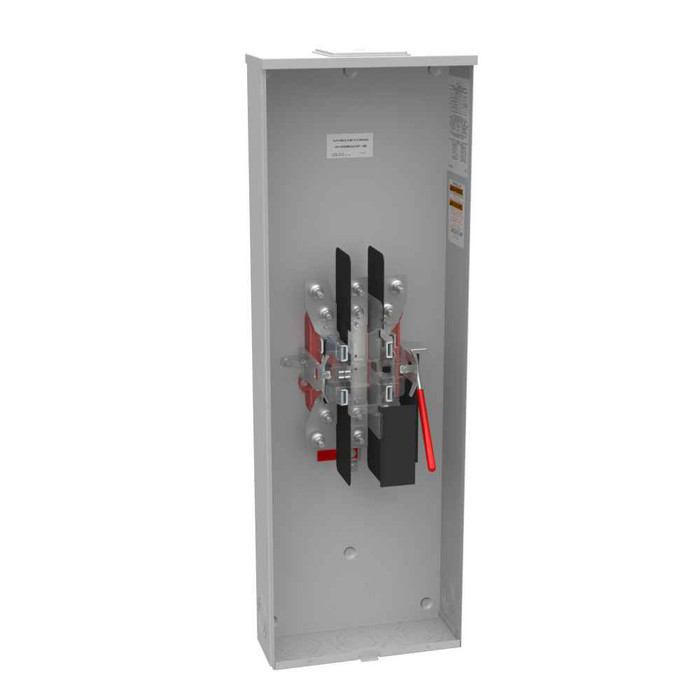

Milbank 4 Terminal Ringless Meter Socket Large Closing Plate Lever Bypass Narrow Shell, 1 Position, 320 Ampere

Milbank 320 Amp 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

(No reviews yet) Write a Review

Model: U1079-X-QG-K3-K2-5T6-AMS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$854.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 320 Amp 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional electrical metering solution with convenient bypass functionality

The Milbank 320 Amp 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality for professional installations. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable performance for both overhead and underground cable entry applications. The narrow shell design with large closing plate ensures secure meter positioning while the lever bypass feature enables safe maintenance operations.

Professional Features & Benefits

  • 320 Continuous Ampere Rating: Handles high-capacity electrical loads for commercial and large residential applications with reliable current management.
  • Lever Bypass Provision: Enables safe maintenance and meter replacement without interrupting power service to critical loads.
  • UL Listed Type 3R Enclosure: Weather-resistant construction protects against rain, sleet, and ice damage for outdoor installations.
  • G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-term durability in harsh environments.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.
  • Glass Polyester Insulation: Provides excellent electrical isolation and thermal stability for safe, reliable operation.
  • 600V AC Rating: Compatible with standard utility voltage systems for professional electrical service applications.

Technical Specifications

  • Amperage Rating: 320 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
  • Load Side Wire Range: Two 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T32
  • Product Height: 38.75 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Commercial Building Electrical Service
  • Large Residential Properties
  • Multi-Unit Housing Developments
  • Industrial Facility Metering
  • Utility Service Upgrades
  • Professional Office Buildings
  • Retail and Commercial Establishments

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed construction and Type 3R weather protection. The G90 galvanized steel with powder coat finish ensures long-term performance, while the comprehensive wire range compatibility and lever bypass functionality provide professional-grade electrical metering solutions for demanding applications.

Manufacturer Resources

Product Specs

Amperage Rating:
320 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
Load Side Wire Range:
Two 6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T32
Product Height:
38.75 IN
Product Type:
Ringless Meter Socket
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
320
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz

Milbank U1079-X-QG-K3-K2-5T6-AMS – Frequently Asked Questions

1) Does the Milbank 320 amp ringless meter socket include a main breaker or disconnect?
No. The U1079-X is a meter socket only, with no main breaker (Number of Main Breakers: 0) and no receptacles. You supply the service disconnect separately downstream. If you need metering and main breaker in one enclosure, you want a meter-main combination instead of this socket.
2) Can this meter socket be used for an underground service lateral, or is it overhead only?
Both. Cable entry is rated for overhead or underground, so the same socket works whether the utility drops from a weatherhead above or feeds up from a lateral. It surface mounts to the wall and the enclosure is UL Listed Type 3R, meaning it is built for outdoor wall mounting exposed to rain, sleet and ice.
3) What does lever bypass do on a meter socket, and do I need it?
The lever bypass lets a utility or electrician pull and replace the meter without dropping power to the load. Many utilities require bypass on 320 amp class sockets, and some specify lever type over horn type. Check the tariff or service handbook for your utility before ordering, because a socket with the wrong bypass style gets rejected at inspection.
4) Does ringless mean I can use my own meter ring, or is this a different socket entirely?
Ringless is a different cover arrangement, not an option. Instead of a sealing ring holding the meter, a large closing plate covers the meter opening and is sealed by the utility. Utilities specify ringless or ring type and will not accept the other, so confirm which your serving utility uses before buying. This 4 terminal socket is the ringless, large closing plate version.
5) What is the difference between the U1079-X and the U1079-X-QG-K3-K2?
Both are the same 320 amp ringless lever bypass socket. The QG-K3-K2 version comes configured with a quadplex ground, a single line connector rated 4-600 kcmil and a double load connector rated 6-350 kcmil. The plain U1079-X is the standard build. Order by suffix so the connectors match the conductors you are pulling.
6) Will a 320 amp Milbank socket fit in a 14 inch wall space between studs or next to existing equipment?
The narrow shell enclosure measures 13 inches wide and 38.75 inches tall. That width is the reason to pick this one when the meter wall is tight or you are setting several sockets side by side. Height is what usually catches people out, so measure from your planned meter center height down before committing.
7) How well does this hold up mounted outdoors in a coastal or industrial environment?
The enclosure is G90 galvanized steel with a powder coat finish over it, and the internal insulation is glass polyester, which handles heat and holds its dielectric strength. Type 3R protects against rain, sleet and ice. For heavy salt exposure most specs still call for a stainless or non-metallic enclosure, so check your facility standard.
