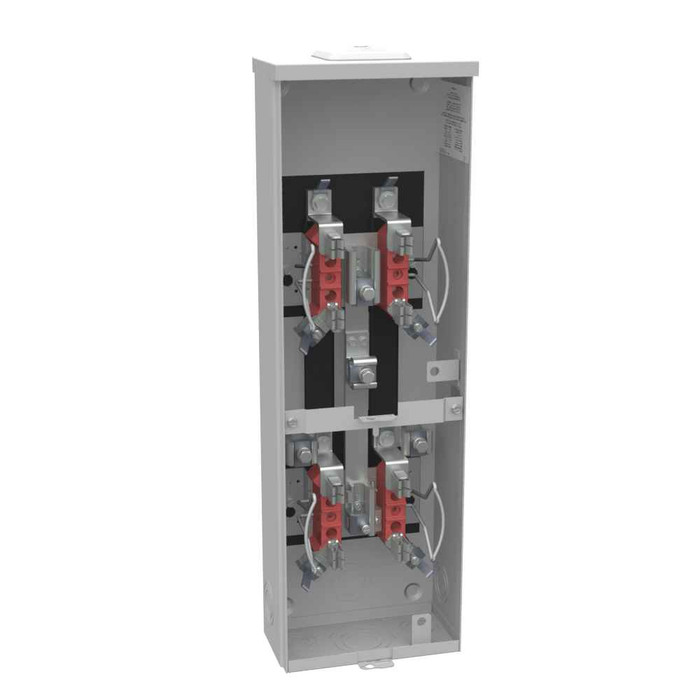

Milbank 4 Terminal Ringless Small Closing Plate 2 Position 100 Ampere Vertical Design

Milbank 4 Terminal Ringless Meter Socket 2 Position 100 Amp Vertical Design with Small Closing Plate

(No reviews yet) Write a Review

Model: U2692-XL-KK-BL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$701.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 4 Terminal Ringless Meter Socket 2 Position 100 Amp Vertical Design with Small Closing Plate

Professional electrical metering solution for dual-position installations

The Milbank 4 Terminal Ringless Meter Socket delivers reliable 100 amp continuous service in a compact 2 position vertical design. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable performance for overhead or underground cable entry applications. The surface mount design with lay-in terminals ensures professional installation and secure connections.

Professional Features & Benefits

  • 100 Amp Continuous Rating: Provides reliable power distribution capacity for residential and light commercial applications
  • 4 Terminal Ringless Design: Eliminates the need for meter rings while ensuring secure meter connections and simplified installation
  • 2 Position Vertical Configuration: Maximizes space efficiency while accommodating dual meter installations in compact footprint
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments
  • Type 3R Enclosure Rating: Provides protection against rain, sleet, and ice formation for reliable outdoor operation
  • Overhead/Underground Cable Entry: Offers installation flexibility for various service entrance configurations
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional installations

Technical Specifications

  • Amperage Rating: 100 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 - 2/0 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 2 Position Vertical Design
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: GVGS
  • Product Height: 25.25 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 8W x25.25H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 300 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Residential Duplex and Multi-Unit Properties
  • Small Commercial Buildings
  • Apartment Complexes
  • Professional Offices
  • Retail Establishments
  • Light Industrial Facilities
  • Service Entrance Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the glass polyester insulation provides superior electrical performance. Professional contractors trust Milbank for consistent quality and code compliance in critical electrical infrastructure applications.

Manufacturer Resources

Product Specs

Amperage Rating:
100 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 - 2/0 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
2 Position Vertical Design
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
GVGS
Product Height:
25.25 IN
Product Length:
4.125 IN
Product Size:
4.125L x 8W x25.25H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
300 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
100
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4

Milbank U2692-XL-KK-BL – Frequently Asked Questions

1) Will the Milbank U2692-XL meter socket work for a duplex with two 100 amp services?
That's exactly what it's built for. The U2692-XL is a 2 position vertical socket, 4 terminal ringless, rated 100 continuous amps, single phase, 300 VAC, 60 Hz. Each position takes a standard 4 jaw single phase meter. Note there is no main breaker in the enclosure (zero main breakers), so overcurrent protection has to live downstream in each tenant panel or in a separate disconnect.
2) What wire sizes can I land in this Milbank 2 position meter socket?
Line side lugs take 6 AWG through 350 kcmil, so a 100 amp or larger service entrance conductor set lands without an adapter. Load side is smaller, 6 AWG to 2/0 AWG per position. Terminals are lay in type, which means you drop the conductor in rather than threading it through a hole. There's a ground lug provided for the equipment ground.
3) Can I use this socket on an underground service, or is it overhead only?
Both. Cable entry is rated overhead or underground. It ships with a small closing plate over the hub opening, so for an overhead drop you pull the plate and fit the hub your utility specifies; for an underground lateral you leave the plate in place and bring conduit in from the bottom.
4) What is the difference between the standard, horn bypass, and barrel lock versions of the Milbank U2692-XL?
Three build options. U2692-XL is the base socket with no bypass. U2692-XL-KK adds horn bypass, which lets a meter tech pull the meter without dropping power to the tenant. U2692-XL-KK-BL is the horn bypass plus a 9/16 inch barrel lock provision for utility sealing. Which one you can install is usually dictated by your serving utility's approved equipment list, not by preference.
5) Does this Milbank socket include breakers or receptacles for a small apartment building?
It does not. Zero main breakers and zero receptacles, main breaker size is listed as none. It is a pure metering enclosure, so each of the two positions needs its own downstream disconnect and panel to satisfy service disconnect requirements. If you want metering and disconnects in one can, you need a meter main or a meter pack instead.
6) How much wall space do I need for this 2 position Milbank socket?
Overall size is 4.125 x 8 x 25.25 inches, with 25.25 inches the height and 8 inches the width. It is surface mount, so plan for a flat backing surface at least 8 inches wide with a little over two feet of vertical run. Depth off the wall is 4.125 inches.
7) Is this Milbank meter socket rated for outdoor mounting?
Type 3R and UL Listed, so it is built for outdoor service entrance use against rain, sleet and ice. The shell is G90 galvanized steel with a powder coat finish, and the internal insulation is glass polyester. Type 3R is not washdown or dusttight, so a hose-down bay or a corrosive environment calls for a higher enclosure type.
8) Does a ringless meter socket need a meter ring, and how does the cover work?
No ring is required. On a ringless socket like the U2692-XL, the meter is held by a hinged or lift-off cover that the utility seals, rather than by a sealing ring clamped around the meter rim. Ringless is a utility preference item, so confirm your power company accepts ringless before ordering; where they require ring type, this socket is the wrong choice.
