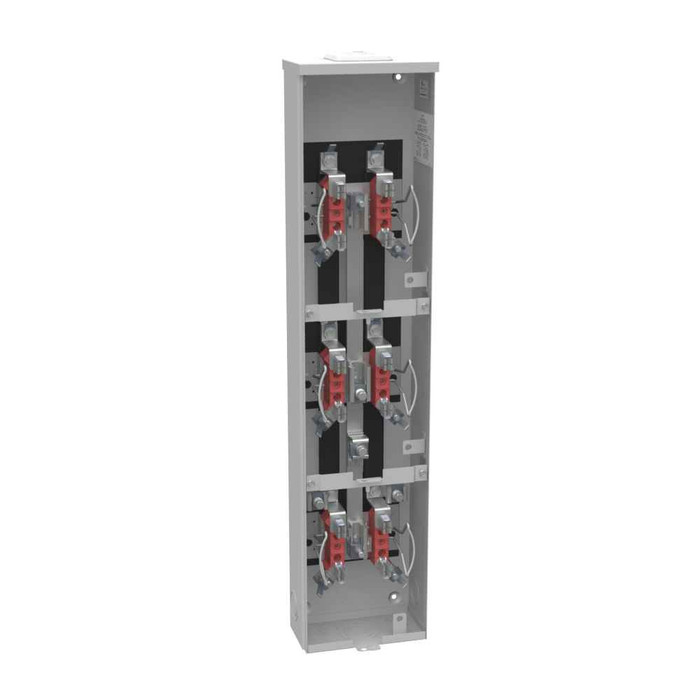

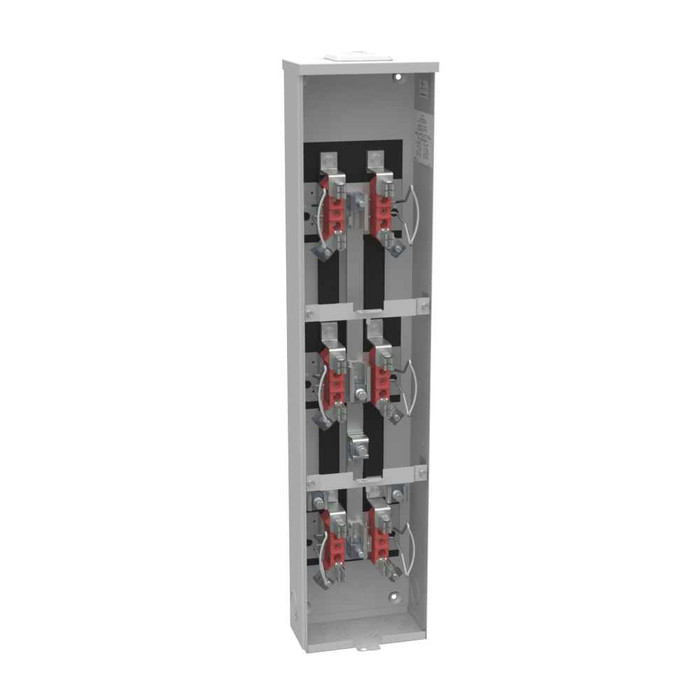

Milbank U2693-XL 4 Terminal Ringless Small Closing Plate 3 Position 100 Ampere Vertical

Milbank 3-Position Vertical Ringless Meter Socket 100A 1-Phase with Small Closing Plate

(No reviews yet) Write a Review

Model: U2693-XL-KK-BL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,157.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 3-Position Vertical Ringless Meter Socket 100A 1-Phase with Small Closing Plate

Professional Multi-Meter Power Distribution Solution

The Milbank 3-Position Vertical Ringless Meter Socket delivers reliable 100 ampere continuous service for multi-unit applications requiring individual metering. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable outdoor performance with 4-terminal ringless design and lay-in terminals for professional installation flexibility.

Professional Features & Benefits

  • 100 Ampere Continuous Rating: Provides reliable power distribution capacity for demanding multi-unit residential and commercial applications.
  • 3-Position Vertical Design: Maximizes space efficiency while enabling individual metering for multiple units or services.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments.
  • UL Listed Type 3R Enclosure: Ensures code compliance and weather protection for safe outdoor installation.
  • 4-Terminal Ringless Configuration: Simplifies meter installation and maintenance with secure lay-in terminal connections.
  • Overhead/Underground Cable Entry: Accommodates versatile installation requirements for different service entrance configurations.
  • Barrel Lock Provision: Includes 9/16 inch knockout and angle bracket for enhanced security when required.

Technical Specifications

  • Amperage Rating: 100 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 - 2/0 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 3 Position Vertical Design
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: GVGS
  • Product Height: 35.719 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 8W x35.719H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 300 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Multi-Unit Residential Properties
  • Apartment Buildings and Condominiums
  • Commercial Strip Centers
  • Small Office Buildings
  • Retail Establishments
  • Mixed-Use Developments
  • Property Management Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term performance in demanding outdoor environments, while the professional 4-terminal ringless design provides secure, maintainable connections for years of dependable service.

Manufacturer Resources

Product Specs

Amperage Rating:
100 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 - 2/0 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
3 Position Vertical Design
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
GVGS
Product Height:
35.719 IN
Product Length:
4.125 IN
Product Size:
4.125L x 8W x35.719H
Product Type:
Meter Stack
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
300 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
100
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U2693-XL-KK-BL – Frequently Asked Questions

1) Can the Milbank U2693-XL meter socket be used on a 208Y/120V three-phase service?
No. The U2693-XL is a single-phase, 4-jaw socket rated 300 volts AC at 60 hertz. Three-phase metering needs a 7-jaw socket. Use this one only for single-phase 120/240V residential and light commercial services.
2) Is the 100 amp rating on this 3-position Milbank socket per meter or for the whole stack?
Each of the three meter positions is rated 100 continuous amperes. It is a 3-position vertical socket, so you are metering three separate 100A single-phase services in one enclosure. There is no main breaker in it, so overcurrent protection has to come from ahead of or behind the socket.
3) What wire sizes will land in the Milbank U2693-XL lay-in terminals?
Line side takes 6 AWG up through 350 kcmil, and the load side takes 6 AWG through 2/0 AWG. Terminals are lay-in type, so conductors drop in rather than threading through a hole, which makes a three-position stack a lot faster to wire. There is also a ground lug for the equipment ground.
4) Can this Milbank socket be mounted outdoors, and will it hold up near the coast?
It is UL Listed with a Type 3R enclosure, which is the rain-and-sleet rating utilities require for outdoor service equipment. The body is G90 galvanized steel with a powder coat finish over it, and the jaw insulation is glass polyester.
5) Does the U2693-XL work for an underground service lateral, or only overhead?
Both. Cable entry is rated overhead or underground, so the same socket serves an overhead drop or a lateral coming up from a trench. It ships with a small closing plate on the hub opening, so if your utility requires a threaded hub for an overhead mast you will need to swap in the correct hub for your conduit size.
6) What is the difference between the standard U2693-XL and the U2693-XL-KK-BL version?
The plain U2693-XL is the base socket. The U2693-XL-KK-BL adds horn bypass plus the 9/16 inch barrel lock provision. Horn bypass lets the utility pull a meter without dropping the other tenants, and many utilities make it mandatory on multi-position stacks, so check the local utility handbook before you order the base unit.
7) Does this Milbank stack include breakers or tenant disconnects for a triplex?
No. It has zero main breakers and no branch receptacles, it is metering only. For a three unit building you will still need a separate disconnect per tenant, either a main breaker panel at each unit or a separate disconnect assembly, to satisfy the service disconnect requirement. If you want the disconnects built in, you want a metered main breaker or combination stack instead of the U2693-XL.
8) How much wall space do I need for a Milbank 3-position vertical meter stack?
Plan on 35.719 inches of height, 8 inches of width, and 4.125 inches of depth off the wall. It is surface mount, so it hangs on the exterior face of the wall rather than sitting flush. The narrow 8 inch width is why the vertical arrangement gets picked on tight side yards and between window openings.
9) Why is this called a ringless meter socket and does it matter which one my utility accepts?
Ringless means the cover slides down over the meter and is secured by the cover itself instead of a sealing ring clamped around the meter rim. Utilities specify one or the other and will reject the wrong style at inspection. The U2693-XL is ringless with 4 terminals, so confirm your utility's approved list calls for a ringless 4-jaw socket before installing.
