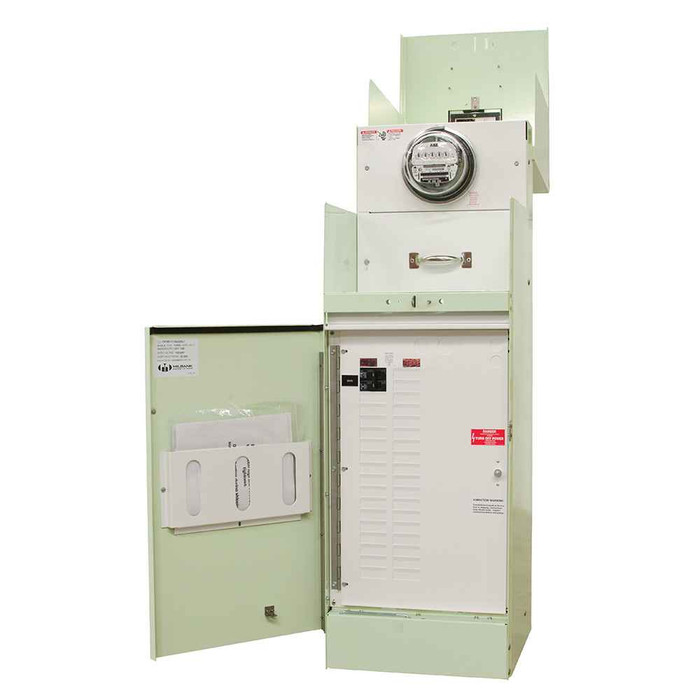

Milbank CP3B Meter Load Centers - 100A & 200A, 240V, Mint Green Finish

Milbank CP3B Meter Load Center 100A 1-Phase 120/240V Pad Mount with Mint Green Finish

(No reviews yet) Write a Review

Model: CP3B51115A22

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,939.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank CP3B Meter Load Center 100A 1-Phase 120/240V Pad Mount with Mint Green Finish

Professional Power Distribution for Outdoor Applications

The Milbank CP3B Meter Load Center delivers reliable 100A continuous power distribution in a durable pad mount configuration. Engineered with G90 galvanized steel construction and powder coat finish, this 1-phase 120/240V unit provides professional-grade performance for outdoor electrical service applications with Type 3R weather protection and UL listing for code compliance.

Professional Features & Benefits

  • 100A Continuous Rating: Provides reliable power distribution capacity for residential and light commercial applications
  • 1-Phase 120/240V Configuration: Standard voltage rating ensures compatibility with common electrical service requirements
  • G90 Galvanized Steel Construction: Superior corrosion resistance and structural integrity for long-term outdoor performance
  • Type 3R Weather Protection: Engineered enclosure design protects against rain, sleet, and ice formation in outdoor installations
  • Pad Mount Design: Ground-level installation provides convenient access for maintenance while maintaining professional appearance
  • UL Listed Certification: Meets rigorous safety and performance standards for electrical distribution equipment
  • Underground Cable Entry: Accommodates below-grade service connections for clean, protected wiring installations

Technical Specifications

  • Amperage Rating: 100 Continuous Ampere
  • Application: Power Distribution
  • Brand Name: Milbank
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: No Hub Opening
  • Insulation: No Insulation
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Height: 48 IN
  • Product Length: 17 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pad Mount
  • Product Size: 17L x 16W x48H
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 120/240 Volts Alternating Current
  • Width: 16 IN

Professional Applications

  • Residential Electrical Service
  • Small Commercial Buildings
  • Multi-Unit Properties
  • Outdoor Power Distribution
  • Utility Service Connections
  • Mobile Home Parks
  • Agricultural Facilities

Why Choose Milbank Quality?

Milbank meter load centers combine proven engineering with durable construction materials to deliver dependable power distribution performance. The UL listed design and Type 3R weather protection ensure reliable operation in demanding outdoor environments, while the G90 galvanized steel construction with powder coat finish provides long-lasting corrosion resistance for years of professional service.

Manufacturer Resources

Product Specs

Amperage Rating:
100 Continuous Ampere
Application:
Power Distribution
Brand Name:
Milbank
Cable Entry:
Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
No Hub Opening
Insulation:
No Insulation
Line Side Wire Range:
6 AWG - 350 kcmil
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Height:
48 IN
Product Length:
17 IN
Product Size:
17L x 16W x48H
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
120/240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pad Mount
Amps:
100
Product Width:
16 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
No Insulation
Hub Style:
No Hub Opening
Installation Category:
Pad Mount
Terminal Type:
Single Mechanical
Number of Phases:
1
Frequency:
60 hertz
Number of Terminations:
4
Product Type:
Load Center
Product Group:
Power Distribution

Milbank CP3B51115A22 – Frequently Asked Questions

1) Will the Milbank CP3B meter load center work on a 200 amp service, or is it 100 amp only?
Both. The CP3B family covers 100A and 200A: order CP3B51115A22 for the 100A ringless unit with 16 branch circuit positions, or CP3B52119A22 for the 200A ringless unit with 24 positions. Same 240V, 4 terminal socket, 22k AIC on either. If the utility is setting a 200A service, the 100A unit is the wrong part and will not pass inspection, so match the amperage to the service size on the drawing before you order.
2) Does the Milbank CP3B come in ring type or ringless, and how do I know which one my utility requires?
Both socket styles are offered. CP3B11110A22SL1 is the ring type 100A unit with 2-16 circuit positions and a switch load position; CP3B51115A22 is the ringless 100A with 16 positions. Ring versus ringless is dictated by the serving utility, not by the installer, so pull the utility's meter socket requirement before ordering. Getting it backwards means the meter cannot be sealed and the utility will not set it.
3) Can the Milbank CP3B be mounted outdoors on a pad, and is it rated for rain?
Pad mount is the mounting method, and the enclosure is Type 3R, which is the outdoor rating for rain, sleet and ice formation. It is UL Listed. Body is G90 galvanized steel with a powder coat finish for corrosion resistance in the weather. This is not a pole or wall mount unit, so you need the concrete pad or equipment base poured before the set.
4) Does the CP3B accept overhead service drop conductors or only underground feed?
Underground only. Cable entry on the CP3B is underground, and there is no hub opening in the top, so there is nowhere to land a weatherhead or a service mast fitting. If the utility is bringing an overhead drop, this pad mount unit is the wrong configuration, look for a socket with a hub opening instead.
5) Is the Milbank CP3B a meter socket only, or does it include the main breaker and branch circuit panel?
It is a combination unit: meter socket plus distribution in one enclosure. One meter position, a 4 terminal socket, one main breaker, and branch circuit space (16 positions on the 100A ringless unit, 24 on the 200A). A ground bar is included for the equipment grounding conductors. There are no receptacles built into it, so if the job calls for a GFCI convenience outlet at the service, that gets added separately.
6) Is the Milbank CP3B suitable for a single family home service, or is it three phase equipment?
Single phase, 120/240 volts AC at 60 hertz, 4 terminal socket. That is standard residential and light commercial service in the US. It will not serve a 3-phase 120/208 or 277/480 load. For a mobile home park pedestal, a single family dwelling, or a small commercial building on a 1-phase service it is the right configuration.
7) How much room do I need to plan for a Milbank CP3B on the site plan?
The enclosure measures 17L x 16W x 48H inches. Height is 48 inches, so plan the pad and the working clearance in front of it around a unit standing four feet tall with a footprint of roughly 17 by 16 inches. That governs where the pad goes and how far it sits off a wall or fence line.
8) What does the SL suffix mean on the Milbank CP3B11110A22SL1?
SL is the switch load option. That version is the ring type 100A unit with 2-16 circuit positions and a switch load position included. The two plain ringless models, CP3B51115A22 and CP3B52119A22, do not carry it. Specify it only if the design calls for a load side switch at the service.
9) Can I standardize a multi-unit property or mobile home park on the Milbank CP3B?
It is a one meter, one position unit, so each dwelling or space needs its own. For a park or a multi-unit property that means one CP3B per service, all with the same 4 terminal 120/240V single phase socket and matching mint green finish across the site. Mixing the 100A and 200A models is fine electrically, just keep the ring versus ringless style consistent with what the utility accepts, since that is set per utility rather than per unit.
10) Is the Milbank CP3B enclosure insulated for cold climates?
No insulation is fitted. The CP3B is a bare G90 galvanized steel Type 3R enclosure with a powder coat finish, which handles rain, sleet and ice but does nothing for internal temperature. If your application needs a heated or insulated enclosure, this is not that product.
