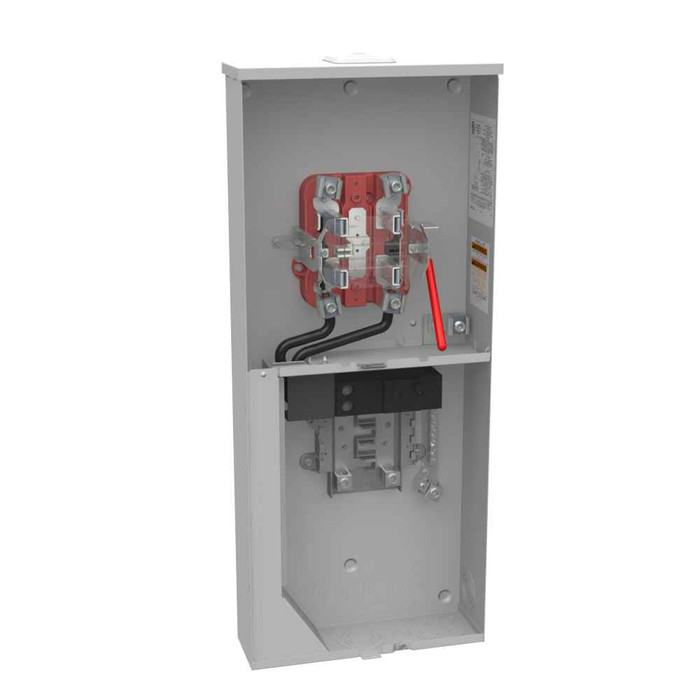

Milbank U6281-XL-100 4–5 Terminal Ringless Meter Sockets with Lever Bypass, Small Closing Plate

Milbank 1-Position Ringless Meter Socket with Lever Bypass and Load Center - 100A 1-Phase Surface Mount

(No reviews yet) Write a Review

Model: U6281-XL-150

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,557.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 1-Position Ringless Meter Socket with Lever Bypass and Load Center

Professional electrical metering solution with integrated load management

The Milbank 1-Position Ringless Meter Socket delivers reliable electrical metering and distribution with integrated lever bypass functionality and load center capabilities. Constructed from G90 galvanized steel with powder coat finish, this surface-mount unit provides Type 3R protection for versatile indoor and outdoor applications. The 1-phase design accommodates overhead or underground cable entry with ground bar equipment grounding for professional installations.

Professional Features & Benefits

  • 100A Service Rating: Handles substantial electrical loads for residential and light commercial applications with reliable capacity management.
  • Lever Bypass Provision: Enables safe meter maintenance and service without interrupting power to critical loads when properly operated.
  • Type 3R Enclosure: G90 galvanized steel with powder coat finish provides weather-resistant protection for outdoor installations.
  • 8 Branch Circuits: Integrated load center accommodates multiple circuit distribution for comprehensive electrical management.
  • Flexible Wire Range: Accepts 6 AWG to 350 kcmil conductors on both line and load sides for versatile connection options.
  • UL Listed: Meets rigorous safety standards ensuring code compliance and reliable performance in professional installations.
  • Surface Mount Design: Simplifies installation with accessible mounting configuration for various wall and structure applications.

Technical Specifications

  • Application: Meter Socket With Main And Load Center
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number Branch Circuits: 8
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MMHD
  • Product Height: 34 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14.125W x34H
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Width: 14.125 IN

Professional Applications

  • Residential electrical service entrance and metering
  • Small commercial and retail establishments
  • Multi-unit residential properties
  • Professional office buildings
  • Light industrial facilities
  • Utility company metering installations
  • Electrical contractor service upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed safety certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding electrical service applications, while the comprehensive 8-circuit load center integration provides professional-grade electrical distribution in a single, space-efficient unit.

Manufacturer Resources

Product Specs

Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Number Branch Circuits:
8
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MMHD
Product Height:
34 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14.125W x34H
Product Type:
Ringless Meter Socket
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Product Width:
14.125 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Product Group:
Power Distribution

Milbank U6281-XL-150 – Frequently Asked Questions

1) What amperage and circuit counts does the Milbank U6281-XL meter socket combo come in?
The Milbank U6281-XL ringless meter main comes in 100A, 150A, and 200A. The 100A units carry 10 branch circuit spaces; the 150A and 200A units carry 8. All of them are single position, 1-phase, with one main breaker.
2) Do I need the 4-terminal or 5-terminal version of this Milbank meter socket?
That is set by your serving utility, not by the load. The U6281-XL is built three ways: standard 4-terminal, 5-terminal with the 5th jaw at the 9 o'clock position, and 5-terminal with the 5th jaw at 6 o'clock in the Ameren configuration. Utilities that require a 5th terminal for network or current-transformer-style metering will specify which clock position they accept. Call the utility before you order; a 9 o'clock can will not pass inspection where 6 o'clock is required.
3) Is this Milbank socket approved for Ameren territory?
The 5-terminal 6 o'clock builds of the U6281-XL are the Ameren-specified versions (U6281-XL-100-5T6-AMS, -150-5T6-AMS, -200-5T6-AMS), and the product record carries Ameren Energy as a special feature. Other utilities keep their own approved-equipment lists, so match the build to the list your POCO publishes.
4) Can this meter socket be mounted outside on the side of a building?
Yes. The enclosure is Type 3R rated and built from G90 galvanized steel with a powder coat finish, so it is made for exterior surface mounting on a wall or structure. Type 3R gives you rain, sleet, and snow protection; it is not a washdown or dust-tight rating.
5) Will 4/0 aluminum SER land in this Milbank meter socket?
Yes. Both the line and load terminals accept 6 AWG through 350 kcmil, so 4/0 aluminum for a 200A service or 2/0 copper lands without adapters. They are lay-in terminals, which makes dressing large service conductors in the can a lot easier than threading through a closed lug.
6) Can I use this for an underground service lateral, or is it overhead only?
Either. The U6281-XL is built for overhead or underground cable entry. For an overhead drop you use the hub opening at the top; the unit ships with a small closing plate, so you add the hub sized to your raceway. For underground you bring the lateral in from the bottom and leave the closing plate in place.
7) Is the Milbank U6281-XL ringless or ring-type, and does that matter for my utility?
Ringless. The cover slips over the meter and is sealed rather than clamped with a sealing ring. Utilities generally specify one or the other in their service handbook, and they are not interchangeable in the field, so confirm your POCO takes ringless before ordering.
8) What is a lever bypass on a meter socket and why would the utility want one?
A lever bypass lets the meter be pulled and reinstalled without dropping power to the load. The linemen throw the bypass lever, which shunts current around the meter jaws, then change the meter live. Many utilities require bypass on residential and light commercial service so meter swaps do not mean an outage. The U6281-XL carries lever bypass on every build.
9) Does this Milbank unit replace a separate meter socket and panel?
That is exactly what it is for. It is a combination meter socket with main breaker and load center in one can, so a service upgrade that would otherwise need a meter can, a main disconnect, and a separate panel gets handled in a single 14-1/8 inch wide enclosure. You get one main breaker plus branch circuit spaces, with a ground bar for equipment grounding.
10) Is this meter socket UL Listed for a permitted service upgrade?
Yes, the U6281-XL carries a UL Listing along with the Type 3R enclosure rating. It is rated 60 Hz, single phase, which is standard residential and light commercial service.
11) Can I add a GFCI receptacle at the meter for a well pump or service outlet?
Not built in. The U6281-XL has zero factory receptacles, so if the job calls for a receptacle at the service point you will need a separate weatherproof outlet fed from one of the branch circuits, or a different Milbank unit ordered with a receptacle.
