Milbank CT Mounting Rack - 400A & 800A, 50kA Interrupting Capacity, EUSERC Compliant

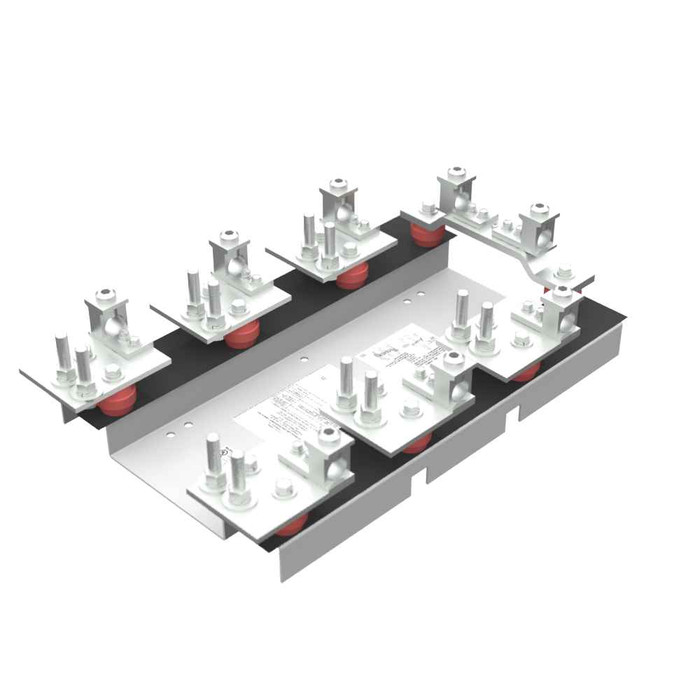

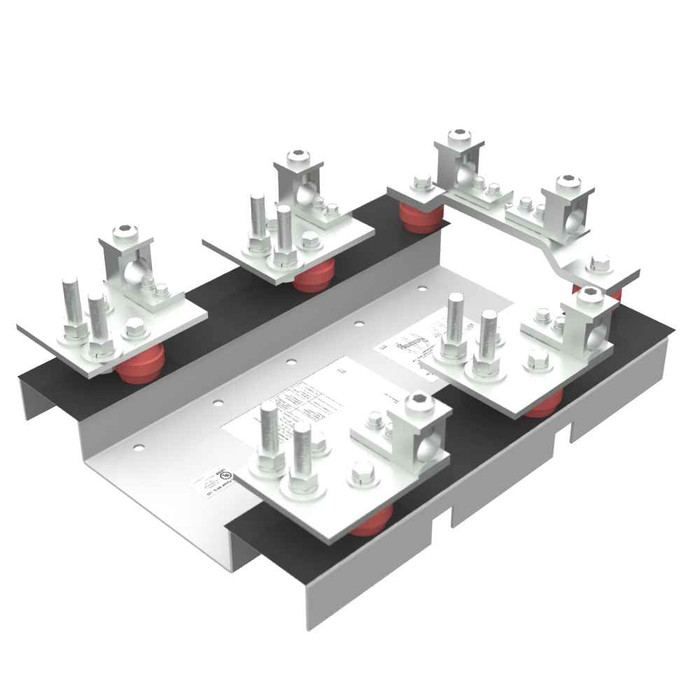

Milbank Current Transformer Mounting Rack - 400A & 800A, 50kA Interrupting Capacity, EUSERC Compliant Surface Mount System

(No reviews yet) Write a Review

Model: K4904

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,145.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Current Transformer Mounting Rack - 400A & 800A, 50kA Interrupting Capacity, EUSERC Compliant Surface Mount System

Professional Current Transformer Mounting Solution

The Milbank Current Transformer Mounting Rack delivers reliable surface mount installation for 400A and 800A current transformers with 50kA interrupting capacity and EUSERC compliance. Constructed with plated aluminum material and non-metallic insulation, this UL Listed mounting rack provides secure positioning and electrical safety for professional current transformer installations rated for 600V AC and 60 Hz operation.

Professional Features & Benefits

  • 50,000 Ampere Interrupting Capacity: Provides robust short circuit protection for demanding electrical applications and enhanced system safety.
  • 400A & 800A Compatibility: Accommodates multiple current transformer ratings for flexible installation planning and system design.
  • Plated Aluminum Construction: Delivers corrosion resistance and structural durability for long-term performance in electrical environments.
  • Surface Mount Design: Enables straightforward installation with secure positioning and accessible connections for maintenance.
  • Non-Metallic Insulation: Provides electrical isolation and safety compliance for professional current transformer mounting applications.
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.
  • EUSERC Compliant: Meets utility standards for enhanced reliability and system compatibility in commercial applications.

Technical Specifications

  • Application: Current Transformer Accessory
  • Brand Name: Milbank
  • Connection: Lug
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Insulation: Non-Metallic
  • Product Family Code: CTRK
  • Product Material: Plated Aluminum
  • Product Mounting: Surface Mount
  • Product Type: Current Transformer Mounting Rack
  • Short Circuit Rating: 50,000 Ampere Interrupting Capacity
  • Standard: UL Listed
  • Unspsc Number: 39121112
  • Voltage Rating: 600 Volts Alternating Current

Professional Applications

  • Commercial Electrical Metering Systems
  • Industrial Power Distribution
  • Utility Current Transformer Installations
  • Multi-Tenant Electrical Services
  • Professional Electrical Contractor Projects
  • Code-Compliant Electrical Upgrades
  • Current Monitoring Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and plated aluminum construction for long-term durability. The EUSERC compliant design ensures utility-grade performance while the 50kA interrupting capacity provides robust protection for professional current transformer mounting applications.

Manufacturer Resources

Product Specs

Application:
Current Transformer Accessory
Brand Name:
Milbank
Connection:
Lug
Frequency Rating:
60 Hertz
Insulation:
Non-Metallic
Product Family Code:
CTRK
Product Type:
Meter Socket Accessory
Short Circuit Rating:
50,000 Ampere Interrupting Capacity
Standards:
UL Listed
Unspsc Number:
39121112
Voltage Rating:
600 Volts Alternating Current
Product Material:
Plated Aluminum
Product Mounting:
Surface Mount
Department:
Electrical
Insulation Type:
Non-Metallic
Short Circuit Current:
50000 amperes
Installation Category:
Surface Mount
Connection Type:
Lug
Frequency:
60 hertz
Product Details:
Current Transformer Mounting Rack
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank K4904 – Frequently Asked Questions

1) Which Milbank CT rack do I order for a 3-phase 800A service versus a single-phase 800A service?
Milbank splits the 800A racks by phase: K4722 is the 800A 3-phase version and K4729 is the 800A single-phase version. Both accept three 4-600 kcmil conductors or six 1-250 kcmil conductors per the lug configuration, and both are EUSERC configurations. Pick by the service phase on the drawing, not by amperage alone.
2) What conductor sizes will the lugs on the Milbank 400A CT rack take?
On the 400A racks (K4903 single-phase, K4904 three-phase) the lug arrangement takes one 4-600 kcmil conductor or two 1-250 kcmil conductors. The 800A racks step that up to three 4-600 kcmil or six 1-250 kcmil. Connection is lug type throughout, so you terminate directly to the rack rather than through a busbar adapter.
3) Will this Milbank CT rack pass a utility inspection that requires EUSERC approval?
All four racks (K4722, K4729, K4903, K4904) are built to EUSERC configurations, which is what most Western utilities require on CT-metered services. The rack is also UL Listed. If your utility works to a non-EUSERC standard, confirm their accepted drawing before ordering.
4) Does the Milbank CT mounting rack include the current transformers?
No. The rack is a current transformer accessory, the structural mounting and lug termination assembly that holds the CTs and the service conductors. The CTs themselves are supplied separately, and on most utility services the utility provides them. Order the rack to match your service amperage, phase, and conductor size.
5) Is a 50kA short circuit rating enough for a 600V commercial service with CT metering?
The rack carries a 50,000 ampere interrupting capacity and is rated 600 volts AC at 60 hertz. That covers available fault current up to 50kA at the CT location; if your utility's fault-current letter shows more than 50kA at that point, you need equipment with a higher withstand rating.
6) I'm standardizing CT racks across a multi-tenant property. Can I use one Milbank part number for all services?
Only if the services match on both amperage and phase. Milbank uses four separate parts: 400A single-phase K4903, 400A three-phase K4904, 800A single-phase K4729, and 800A three-phase K4722. Conductor capacity differs too, one 4-600 kcmil (or two 1-250 kcmil) per phase on the 400A racks versus three 4-600 kcmil (or six 1-250 kcmil) on the 800A. Most mixed properties end up stocking two part numbers.
7) How does this CT rack mount inside an enclosure or on a wall?
It is a surface mount assembly, so it fastens to a flat back surface, typically the backpan of a CT cabinet or a wall inside the service enclosure, leaving the lugs accessible for termination and later maintenance.
8) Is the Milbank CT rack suitable for an outdoor or coastal service where corrosion is a concern?
The rack is plated aluminum with non-metallic insulating supports, which resists corrosion better than a plain steel assembly. Keep in mind the rack itself provides no weather protection; it is an internal assembly and the enclosure around it has to carry the outdoor rating for the location.
