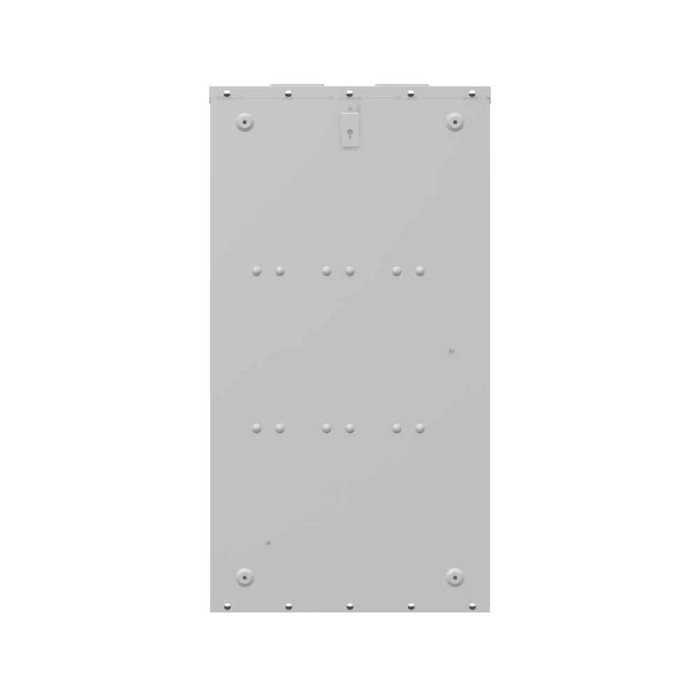

Milbank U6238-XT 400 Ampere 3 Phase 600 Volt 24in-45in-10in Painted Steel No Knockouts Piano Hinge 3 Point Latch CT Rack Installed With Lugs-1 Per Landing 600kcmil 50k Short Circuit Current Rating

Milbank Current Transformer Enclosure 400A 3-Phase 600V 24x45x10 NEMA 3R with CT Rack

(No reviews yet) Write a Review

Model: U6238-XT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,556.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Current Transformer Enclosure 400A 3-Phase 600V 24x45x10 NEMA 3R with CT Rack

Professional Current Transformer Housing for Commercial & Industrial Applications

The Milbank Current Transformer Enclosure delivers reliable protection and organization for electrical metering systems with 400 ampere capacity at 600 volts three-phase. Constructed from G90 galvanized steel with powder coat finish in ANSI 61 Gray, this NEMA Type 3R rated enclosure provides weather-resistant protection for outdoor installations. The unit features a pre-installed CT mounting rack with lugs and continuous piano hinge design for secure access and professional installation.

Professional Features & Benefits

  • 400 Ampere 3-Phase 600V Rating: Handles high-capacity electrical systems with reliable current transformer protection and metering support.
  • NEMA Type 3R Weather Protection: Outdoor-rated enclosure resists rain, sleet, and ice damage while providing ventilation for heat dissipation.
  • G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability in harsh environments.
  • Pre-Installed CT Rack with Lugs: Factory-installed mounting system with one lug per landing simplifies field installation and reduces labor time.
  • Piano Hinge & 3-Point Latch: Continuous hinge design with secure three-point locking mechanism provides reliable access control and weather sealing.
  • UL Listed Certification: Meets rigorous safety standards for commercial and industrial electrical installations.
  • 24x45x10 Inch Dimensions: Spacious interior accommodates current transformers and associated wiring with proper clearances for code compliance.

Technical Specifications

  • Application: Current Transformer Enclosure
  • Back Panel: Ground Stud
  • Brand Name: Milbank
  • Cable Entry: No Knockouts
  • Departent: Electrical
  • Door Or Cover: Single Door
  • Mounting Rack: Current Transformer Mounting Rack Installed with Lugs - 1 per Landing
  • Nema Rating: Type 3R
  • Product Color: ANSI 61 Gray
  • Product Family Code: CTEN
  • Product Height: 45 IN
  • Product Length: 10 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Wall Mount
  • Product Size: 10L x 24Wx 45H
  • Product Type: Hinge Cover
  • Special Features: Continuous Hinge Cover; Single Mechanical Line Side and Single Mechanical Load Side
  • Standard: UL Listed
  • Unspsc Number: 39121319
  • Width: 24 IN

Professional Applications

  • Commercial Building Electrical Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Property Submetering
  • Utility Service Entrance Protection
  • Manufacturing Plant Current Measurement
  • Data Center Power Distribution
  • Healthcare Facility Electrical Systems

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and robust G90 galvanized steel construction with powder coat finish. The NEMA Type 3R rating ensures dependable outdoor performance while the pre-installed CT rack system reduces installation time and ensures proper current transformer mounting for accurate electrical metering and monitoring applications.

Manufacturer Resources

Product Specs

Application:
Current Transformer Enclosure
Back Panel:
Ground Stud
Brand Name:
Milbank
Cable Entry:
No Knockouts
Door Or Cover:
Single Door
Nema Rating:
Type 3R
Product Family Code:
CTEN
Product Height:
45 IN
Product Length:
10 IN
Product Size:
10L x 24Wx 45H
Product Type:
Hinge Cover
Standards:
UL Listed
Unspsc Number:
39121319
Product Color:
ANSI 61 Gray
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Wall Mount
Product Width:
24 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U6238-XT – Frequently Asked Questions

1) Will the Milbank U6238-XT CT enclosure accept 600 kcmil conductors on a 400A service?
The U6238-XT is built around a 400 ampere, 3-phase, 600 volt current transformer installation, with a single mechanical lug on the line side and a single mechanical lug on the load side. The cabinet measures 10L x 24W x 45H inches, which is what gives you bending room for large service conductors landing on those mechanical connections. One lug per landing means one conductor per phase, so if your service is run in parallel sets you need a different cabinet or a separate tap arrangement ahead of it.
2) Does the Milbank CT enclosure come with knockouts, or do I have to punch my own conduit openings?
No knockouts. The U6238-XT ships blank, so the installer drills or punches the cabinet for whatever conduit size and entry location the job calls for, top, bottom, or back. Plan on a hole saw or a knockout punch set on the truck. The upside is you place the entries exactly where the utility and the inspector want them instead of working around factory locations.
3) Is this Milbank CT cabinet rated for outdoor wall mounting on the side of a building?
Yes, it is a NEMA Type 3R enclosure intended for wall mount, so it belongs outdoors on a building wall or a structural backboard, not free-standing on a pad. Type 3R protects against falling rain, sleet, and ice formation. The shell is G90 galvanized steel with a powder coat finish in ANSI 61 Gray, which is the standard utility gray you will already see on the meter stack next to it.
4) Do I need to buy a separate CT mounting rack for the Milbank U6238-XT?
No. The current transformer mounting rack is installed at the factory with lugs already fitted, one per landing. That is the part that usually eats field labor on a CT cabinet, so you are buying the enclosure and the rack as one assembly. You still supply the current transformers themselves and the metering conductors, since those are specified by the utility.
5) What is the difference between a CT cabinet and a meter socket, and which one do I need for a 400A service?
They do different jobs. A meter socket takes the meter directly and is used where the service is small enough to meter through the socket jaws. A CT cabinet like the U6238-XT houses current transformers that scale the service current down to a level the meter can read, which is how utilities meter larger services such as this 400 ampere 3-phase 600 volt arrangement. On a CT-metered service you typically need both: this cabinet for the transformers, plus a separate meter socket or metering trough downstream for the meter itself. The utility's metering standard decides the split.
6) How much wall space do I need to lay out for a 400A CT cabinet before I frame the backboard?
Allow for 45 inches of height, 24 inches of width, and 10 inches of depth off the wall for the U6238-XT, plus the working clearance in front that the electrical code requires for the voltage class. The 10 inch depth matters on a narrow walkway or an alley-side meter bank, since the door swings out past that on a single-door cabinet.
7) Is there a ground point inside the Milbank CT enclosure, or do I have to add one?
A ground stud is provided on the back panel of the U6238-XT, so the bonding point is built in and you are not drilling and tapping the cabinet in the field. Land your grounding electrode conductor or equipment bonding jumper there per the service arrangement the AHJ approved.
8) Can the utility seal the Milbank U6238-XT CT cabinet after inspection?
The cover is a continuous piano hinge design with a 3-point latch, which is the arrangement utilities expect on a CT cabinet because the single latch point can be sealed while the full-length hinge keeps the door aligned and weather-tight over the life of the installation. Always confirm the specific seal provision with the serving utility, since each one publishes its own metering standard.
9) Is the Milbank CT enclosure UL Listed for commercial metering work?
Yes, the U6238-XT carries a UL Listed marking. For an institutional or MRO submittal that is the line the reviewer is looking for alongside the NEMA Type 3R rating. The UNSPSC classification for procurement systems is 39121319.
10) What exact Milbank part number should I put on the purchase order for a 400A 3-phase CT cabinet?
Milbank U6238-XT. That single model covers the 24 x 45 x 10 inch NEMA 3R current transformer enclosure at 400 amperes, 3-phase, 600 volts, with the CT rack and lugs installed. There are no finish or size options to select underneath it, so the base number is the whole order.
11) Will the ANSI 61 Gray finish on this Milbank CT cabinet match the rest of my meter bank?
ANSI 61 Gray is the standard gray used across utility and industrial electrical gear, so a U6238-XT will read as the same color family as most switchgear, meter stacks, and pull sections already on the wall. The finish is powder coat over G90 galvanized steel, which is the corrosion package you want on a coastal or high-humidity site.
