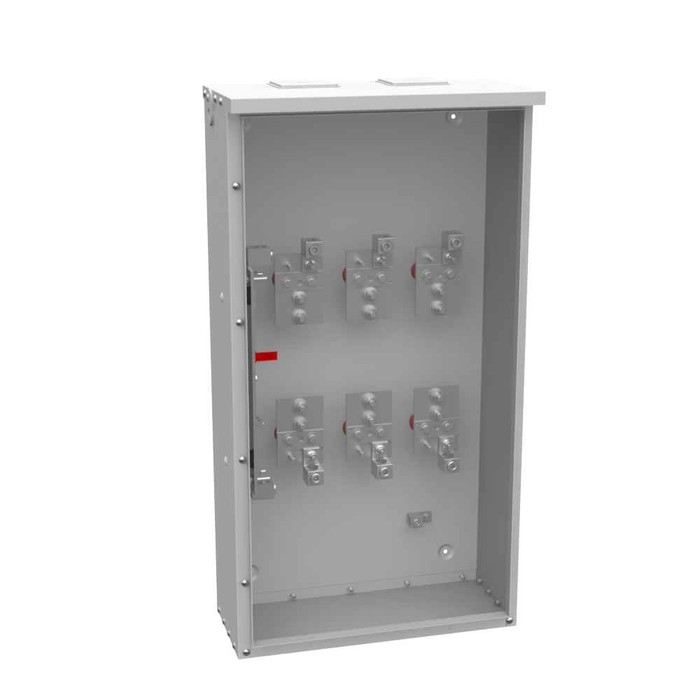

Milbank U4468-XT 400A 3-Phase CT Metering Cabinet – 600V, Utility Grade, Outdoor Steel Enclosure

Milbank 400A 3-Phase CT Metering Cabinet 600V NEMA 3R Outdoor Steel Enclosure

(No reviews yet) Write a Review

Model: U4468-XT-EPEC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,488.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 400A 3-Phase CT Metering Cabinet 600V NEMA 3R Outdoor Steel Enclosure

Professional Current Transformer Metering Solution

The Milbank 400A 3-Phase CT Metering Cabinet delivers reliable current transformer enclosure performance for 600V applications. This utility-grade cabinet features NEMA Type 3R outdoor rating with G90 galvanized steel construction and powder coat finish in ANSI 61 Gray. The wall-mount design with single door and continuous hinge cover provides secure access for professional metering installations.

Professional Features & Benefits

  • 400A 3-Phase Rating: Handles high-capacity electrical metering applications with professional-grade current transformer compatibility
  • NEMA Type 3R Enclosure: Provides outdoor protection against rain, sleet, and ice formation for reliable long-term operation
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish
  • 45" x 24" x 10" Dimensions: Accommodates standard CT metering equipment with optimal space utilization
  • Continuous Hinge Cover: Ensures secure closure and easy access for maintenance and meter reading
  • UL Listed: Meets rigorous safety standards for professional electrical installations
  • Wall Mount Design: Simplifies installation with secure mounting configuration

Technical Specifications

  • Application: Current Transformer Enclosure
  • Back Panel: Ground Stud
  • Brand Name: Milbank
  • Cable Entry: No Knockouts
  • Departent: Electrical
  • Door Or Cover: Single Door
  • Nema Rating: Type 3R
  • Product Color: ANSI 61 Gray
  • Product Family Code: CTEN
  • Product Height: 45 IN
  • Product Length: 10 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Wall Mount
  • Product Type: Hinge Cover
  • Special Features: Continuous Hinge Cover; El Paso Electric
  • Standard: UL Listed
  • Unspsc Number: 39121319
  • Width: 24 IN

Professional Applications

  • Utility Metering Installations
  • Commercial Building Power Monitoring
  • Industrial Facility Electrical Distribution
  • Multi-Tenant Property Metering
  • Municipal and Government Facilities
  • Educational Institution Power Management
  • Healthcare Facility Electrical Systems

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and NEMA Type 3R outdoor protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor environments, while the continuous hinge cover design provides secure access for professional metering applications.

Manufacturer Resources

Product Specs

Application:
Current Transformer Enclosure
Back Panel:
Ground Stud
Brand Name:
Milbank
Cable Entry:
No Knockouts
Door Or Cover:
Single Door
Nema Rating:
Type 3R
Product Family Code:
CTEN
Product Height:
45 IN
Product Length:
10 IN
Product Type:
Hinge Cover
Special Features:
Continuous Hinge Cover; El Paso Electric
Standards:
UL Listed
Unspsc Number:
39121319
Product Color:
ANSI 61 Grey
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Wall Mount
Product Width:
24 IN
Department:
Electrical
Product Subgroup:
Electrical
Installation Category:
Wall Mount
Product Details:
Hinge Cover
Product Group:
Metering & Service Entrance

Milbank U4468-XT-EPEC – Frequently Asked Questions

1) What are the outside dimensions of the Milbank U4468-XT CT cabinet, and will it fit my wall space?
The U4468-XT CT metering cabinet measures 45 inches high, 24 inches wide, and 10 inches deep. It's a wall-mount enclosure, so plan for a mounting surface at least 45 by 24 inches plus working clearance in front of the door. The 10 inch depth is what gives you room behind the meter socket for CT bar mounting and cable bending.
2) Can the Milbank U4468-XT CT cabinet be mounted outdoors?
Yes. The U4468-XT carries a NEMA Type 3R rating, which is the outdoor rating for protection against falling rain, sleet, and ice formation. The shell is G90 galvanized steel with a powder coat finish in ANSI 61 gray, and the door uses a continuous hinge. Type 3R is not a washdown or hosedown rating, so it is not for direct pressure spray or submersion, but it is the standard rating for a pole or exterior wall service location.
3) Does the Milbank U4468-XT come with knockouts for conduit entry?
No knockouts. The U4468-XT ships as a blind enclosure, so the installing electrician punches conduit entries to suit the service run and the utility's requirements. Budget time on the job for hole saws or a knockout set, and plan entry locations before the cabinet goes on the wall. Blind construction is normal on CT cabinets because the utility often dictates where the line and load conduits land.
4) What is the difference between the standard U4468-XT and the U4468-XT-EPEC version?
Two versions of this 400A CT cabinet are sold: the standard U4468-XT and the U4468-XT-EPEC, which is the El Paso Electric approved variant. If the service is inside El Paso Electric territory and the utility requires an approved CT enclosure on their acceptance list, order the EPEC part number. Anywhere else, the standard U4468-XT is the one to buy. Physically it is the same 45 x 24 x 10 inch NEMA 3R cabinet.
5) Does a CT cabinet like the Milbank U4468-XT include the current transformers and the meter socket?
The U4468-XT is the current transformer enclosure itself, a 400A 3-phase 600V cabinet with a single door and a ground stud on the back panel. The CTs on a 400A 3-phase service are almost always supplied and installed by the serving utility, and the meter socket or meter mounting device is a separate item from the cabinet. Order the enclosure here and confirm with the utility who furnishes the transformers and the metering equipment before the inspection.
6) Is the Milbank 400A CT cabinet rated for a 480V 3-phase service?
Yes. The cabinet is rated 600V, which covers 208Y/120, 240, and 480Y/277 three-phase services up to 400 amps. It is UL Listed. For a service above 400A or above 600V, this is not the right enclosure.
7) Is there a ground provision in the Milbank U4468-XT, or do I need to add one?
A ground stud is provided on the back panel of the U4468-XT, so you have a factory bonding point for the equipment grounding conductor and do not need to drill and tap the enclosure. The back panel is also where CTs and the shorting block typically mount.
8) Will the ANSI 61 gray finish on the Milbank CT cabinet match the other gear on my building?
The finish is ANSI 61 gray powder coat over G90 galvanized steel, which is the standard utility and switchgear gray used across most electrical equipment, so it will read as a match alongside typical service gear and panelboards. For property managers standardizing exterior equipment across a portfolio, the galvanized substrate under the powder coat is what carries the corrosion resistance outdoors.
9) Can I lock the door on the Milbank U4468-XT for utility sealing?
The U4468-XT uses a single door on a continuous hinge, which is the arrangement utilities expect on a CT enclosure so the door can be closed tight and sealed after the CTs are set. The continuous hinge runs the full height rather than using separate hinge points, so the 45 inch door stays aligned in the frame over time.
