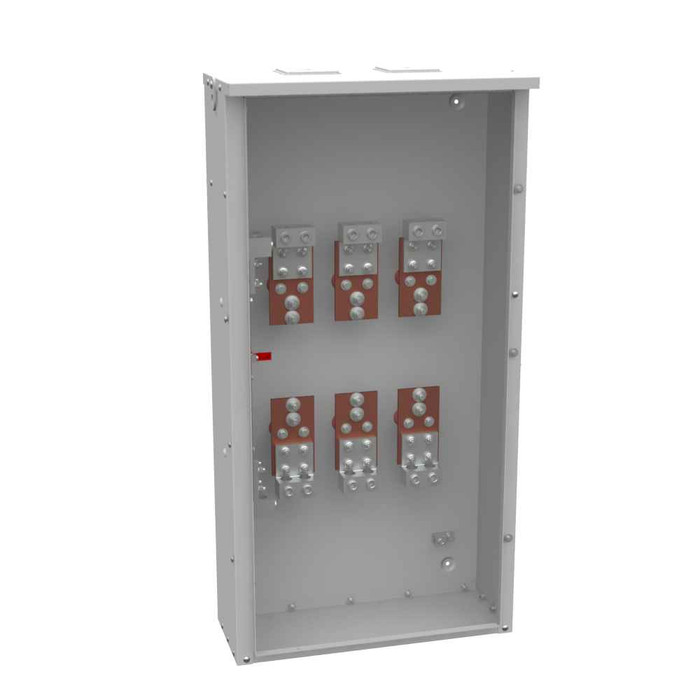

Milbank Ringless CT Cabinets - Test Switch Prewired, Large Closing Plate, and Barrel Lock Provision

Milbank Ringless CT Cabinet 3 Phase 600V with Test Switch and Barrel Lock Provision

(No reviews yet) Write a Review

Model: U4808-X-21-BLG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,789.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Ringless CT Cabinet 3 Phase 600V with Test Switch and Barrel Lock Provision

Professional Current Transformer Metering Solution with Enhanced Security Features

The Milbank Ringless CT Cabinet delivers reliable 3 phase 600V metering performance with integrated test switch functionality and barrel lock provision for enhanced security. Constructed from G90 galvanized steel with powder coat finish and featuring Type 3R enclosure rating, this surface mount cabinet provides durable protection for overhead or underground cable entry applications. The 13 terminal configuration with glass polyester insulation ensures professional installation and long-term reliability.

Professional Features & Benefits

  • 3 Phase 600V Rating: Handles demanding commercial and industrial electrical loads with reliable voltage capacity for professional applications.
  • Type 3R Enclosure: Weather-resistant construction protects internal components from rain, sleet, and ice formation for outdoor installations.
  • G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-lasting durability in harsh environments.
  • Test Switch Prewired: Factory-installed test switch simplifies maintenance procedures and reduces installation time for technicians.
  • Barrel Lock Provision: 7/8 inch knockout and angle bracket provide secure locking capability to prevent unauthorized access.
  • 13 Terminal Configuration: Comprehensive connection points accommodate complex metering setups with professional-grade reliability.
  • UL Listed Certification: Meets rigorous safety standards ensuring code compliance and professional installation confidence.

Technical Specifications

  • Application: Meter Socket
  • Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 13 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: TRNS
  • Product Length: 10 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current

Professional Applications

  • Commercial Building Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Properties
  • Manufacturing Plants
  • Retail and Office Buildings
  • Municipal and Government Facilities
  • Educational Institutions

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection, ensuring professional performance in demanding applications. The G90 galvanized steel construction with powder coat finish provides exceptional durability, while the comprehensive 13 terminal configuration supports complex metering requirements with confidence.

Manufacturer Resources

Product Specs

Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Main Breaker Size:
No Main Breaker
Number Of Jaws:
13 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
TRNS
Product Length:
10 IN
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Number of Phases:
3
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
13
Product Group:
Power Distribution

Milbank U4808-X-21-BLG – Frequently Asked Questions

1) Which amperage and voltage combinations does the Milbank U4800 series ringless CT cabinet come in?
Three build-outs are offered, all with a single front cover with hasp: U4808-X-21-BLG at 200-400A, 120-208V; U4810-XT-21-BLG at 400-800A, 120-208V; and U4809-XT-21-BLG at 400-800A, 277-480V. Pick by the service size and the utility's secondary voltage on the job. All are 3 phase, 60 hertz, and rated 600 volts AC as an enclosure class.
2) Can a Milbank ringless CT cabinet be mounted outdoors on an exterior wall?
Yes. The cabinet is a Type 3R enclosure, so it is built for outdoor wall mounting where rain, sleet and ice are the exposure. It is surface mount, and the shell is G90 galvanized steel with a powder coat finish for corrosion resistance. It is UL Listed.
3) Does this Milbank CT cabinet include a main breaker or a meter bypass?
No on both counts. The U4800 ringless CT cabinet ships with no main breaker and no bypass provision. It houses the current transformers and the prewired test switch only, so overcurrent protection has to come from separate gear upstream or downstream. There is one meter position and no receptacles.
4) Will a 13 terminal CT cabinet work for a 3 phase 4 wire wye service?
The Milbank U4800 CT cabinet is built with 13 terminals on glass polyester insulation, which is the standard landing count for 3 phase transformer rated metering, and it is offered in both 120-208V wye and 277-480V configurations. Match the terminal block arrangement and the CT ratio to your serving utility's metering spec before the meeting.
5) Can service conductors enter this CT cabinet from underground, or is it overhead only?
Either. Cable entry is rated for overhead or underground, so the same cabinet works for a pole-fed lateral or a padmount-fed underground service. A ground lug is provided for the equipment grounding connection.
6) How does the barrel lock provision work on this Milbank CT cabinet?
The cabinet comes with a 7/8 inch knockout and an angle bracket sized for a utility barrel lock, plus a hasp on the single front cover. That lets the serving utility seal the enclosure against unauthorized access after the CTs are installed. Most utilities supply the barrel lock itself, so it is not part of the cabinet.
7) What is the difference between a ringless CT cabinet and a ring-type meter socket?
A ringless enclosure uses a removable cover secured by a hasp and lock rather than a sealing ring around the meter, which is what most utilities in ringless territory require. Beyond that, this unit is a CT cabinet, not a self-contained socket: it houses current transformers and a prewired test switch for transformer rated metering on services too large to meter directly, and is offered up to 800A. A self-contained socket with jaws is the right choice for smaller services.
8) Is the test switch already wired in, or does the electrician have to field wire it?
The test switch is factory prewired in the Milbank U4800 CT cabinet, so the technician does not have to build that circuit in the field. It lets a meter tech verify or swap the meter without opening the CT secondaries.
9) What is the cabinet depth on the Milbank U4800 CT cabinet?
The stated product length is 10 inches. Verify the wall clearance and conductor bending space against your utility's CT cabinet requirements for the amperage you are running, since 800A conductors need considerably more working room than 200A.
10) Is this CT cabinet suitable for a school or municipal building metering upgrade?
It is built for exactly that kind of work: 3 phase transformer rated metering, UL Listed, Type 3R for outdoor mounting, in 200-400A and 400-800A sizes at 120-208V or 277-480V. The G90 galvanized steel with powder coat holds up on exterior walls. For a facility standardizing across multiple buildings, the same 13 terminal layout and barrel lock provision runs across all three configurations.
