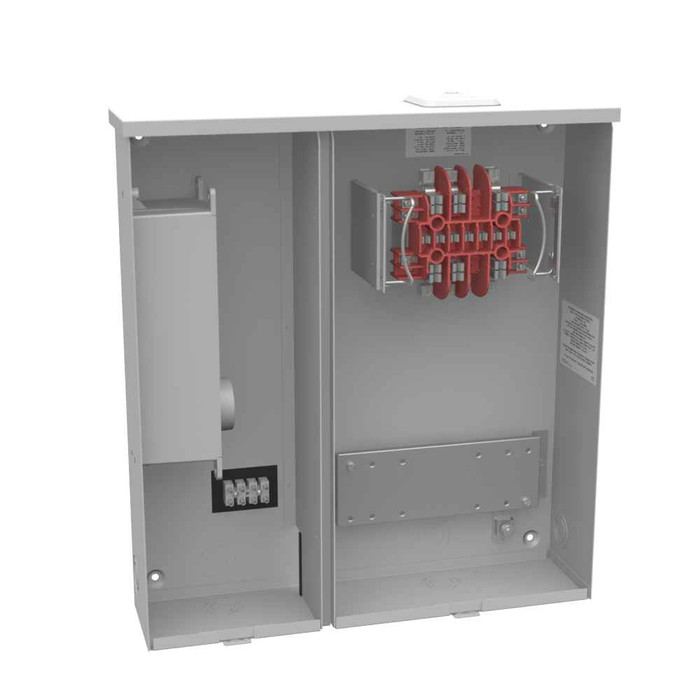

Milbank SC6128-XL 13 Terminal Ringless Small Closing Plate Test Switch Provision VT Pack Provision

Milbank 13 Terminal Ringless Meter Socket 3 Phase 600V 20A with Test Switch & VT Provisions

(No reviews yet) Write a Review

Model: SC6128-XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,366.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 13 Terminal Ringless Meter Socket 3 Phase 600V 20A with Test Switch & VT Provisions

Professional 3-phase metering solution with integrated test switch and VT provisions

The Milbank 13 Terminal Ringless Meter Socket delivers reliable 3-phase electrical metering for commercial and industrial applications. Engineered with a robust G90 galvanized steel construction and powder coat finish, this 600V rated meter socket provides 20 continuous ampere capacity with integrated test switch provision and VT pack provision for comprehensive power monitoring and testing capabilities.

Professional Features & Benefits

  • 600V AC Rating: Handles high-voltage 3-phase applications with reliable performance and safety compliance
  • 20 Continuous Ampere Capacity: Provides adequate current handling for medium-duty commercial metering applications
  • G90 Galvanized Steel Construction: Ensures long-lasting durability with corrosion resistance and professional powder coat finish
  • 13 Terminal Configuration: Accommodates comprehensive 3-phase metering with test switch and VT provisions for advanced monitoring
  • Type 3R Enclosure: Suitable for outdoor installations with protection against weather conditions
  • Glass Polyester Insulation: Provides reliable electrical isolation and temperature stability for consistent performance
  • Surface Mount Design: Enables straightforward installation with accessible connections for service and maintenance

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 - 10 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 13 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: CT20
  • Product Height: 22 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 20W x 22H
  • Product Type: Ringless Meter Socket
  • Standard: Non UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 20 IN

Professional Applications

  • Commercial Building Metering
  • Industrial Facility Power Monitoring
  • Multi-Tenant Properties
  • Manufacturing Plants
  • Retail and Office Buildings
  • Educational Institutions
  • Healthcare Facilities

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with Type 3R weather protection and durable G90 galvanized steel construction. The glass polyester insulation and powder coat finish ensure long-term performance in demanding commercial and industrial environments, backed by professional-grade materials and construction standards.

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
12 - 10 AWG
Load Side Wire Range:
12 - 10 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
13 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
CT20
Product Height:
22 IN
Product Length:
4.844 IN
Product Size:
4.844L x 20W x 22H
Product Type:
Ringless Meter Socket
Standards:
Non UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
20
Product Width:
20 IN
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank SC6128-XL – Frequently Asked Questions

1) Is the Milbank SC6128-XL a self-contained meter socket or is it for CT metering?
The SC6128-XL is a transformer-rated socket, not self-contained. It belongs to Milbank's CT20 family, carries a 20 continuous ampere rating, and takes 12-10 AWG on both the line and load side. Those wire ranges are instrument-transformer secondary conductors, not service conductors, so the actual load current is carried by the CTs and the socket only sees the metering circuit. If you need to run the service through the socket itself, this is the wrong part.
2) Will a 13 terminal ringless socket work for 3 phase 4 wire 277/480V metering?
Rated 600 volts AC at 60 hertz, 3 phase, with a 13 terminal jaw configuration and a single meter position, so it covers 277/480V service metering within that 600V ceiling. The 13 jaw arrangement is what lets it carry the test switch and VT pack provisions alongside the meter. Your utility has to approve the socket for their meter form before you set it.
3) Can this Milbank meter socket be installed outdoors?
Yes. The enclosure is Type 3R, which is the standard rain-tight outdoor rating for meter equipment, and the body is G90 galvanized steel with a powder coat finish for corrosion resistance. Note the socket is listed as Non UL Listed, so if your AHJ or utility requires a UL listed socket on the project, confirm that before you buy.
4) Does the SC6128-XL include a main breaker or a meter bypass?
No to both. It is a straight metering enclosure: zero main breakers, no main breaker provision, and no bypass provision. Overcurrent protection has to come from separate gear ahead of or behind the socket, and if your utility requires a lever bypass for hot meter changes, you need a different socket. There are also no receptacles in the enclosure.
5) What are the dimensions of the Milbank SC6128-XL and how does it mount?
Enclosure measures 4.844L x 20W x 22H inches and it is a surface mount unit, so you are fastening it flat to a wall or a strut rack rather than recessing it. Allow the full 22 inch height plus working clearance in front. The shallow 4.844 inch depth keeps it tight to the wall, which matters when it is going on a busy exterior riser wall alongside the CT cabinet.
6) Can I bring conduit into this socket from underground, or does it have to be overhead?
Either one. Cable entry is rated for overhead or underground, and the unit ships with a small closing plate covering the hub opening. For an overhead service you knock out and fit a hub of the right trade size; for an underground feed you leave the closing plate in place up top and enter through the bottom. The hub itself is a separate item.
7) How do the CT secondary and VT leads land in this socket, and how do I ground it?
Terminations are single mechanical lugs sized for 12 to 10 AWG on both line and load side, which suits CT secondary and potential leads. Grounding is by a ground lug in the enclosure. Insulation is glass polyester, which holds up to the heat and dielectric demands of a 600V metering base. There is also a test switch provision and a VT pack provision, so the switch and VT pack are specified separately from the socket.
8) Is a ringless meter socket the right choice, or do I need a ring-type?
Ringless sockets like the SC6128-XL use a sealable cover over the meter rather than a separate locking ring, and many utilities specify one style exclusively in their service requirements. Check your utility's meter socket standard first: if their book calls for ring-type, this one gets rejected at inspection regardless of the electrical ratings. Also worth flagging on a spec job that this unit is Non UL Listed.
9) I need to meter several tenants in one building. Can I use the SC6128-XL for that?
Not as a multi-tenant unit. This socket has a single meter position, so it meters one service point. For a building where each tenant needs its own utility meter, you would use a multi-position meter stack or one socket per tenant. Where the SC6128-XL fits is a single large 3 phase service, typically the house or main service, being metered through current transformers.
10) What is the exact part number to order this Milbank socket?
Milbank SC6128-XL. It is the 13 terminal ringless CT-rated socket with small closing plate, test switch provision and VT pack provision, rated 600V AC, 20 amp continuous, 3 phase. When you submit it for utility approval, the SC6128-XL number plus the CT20 family designation is what the meter department will want to see.
