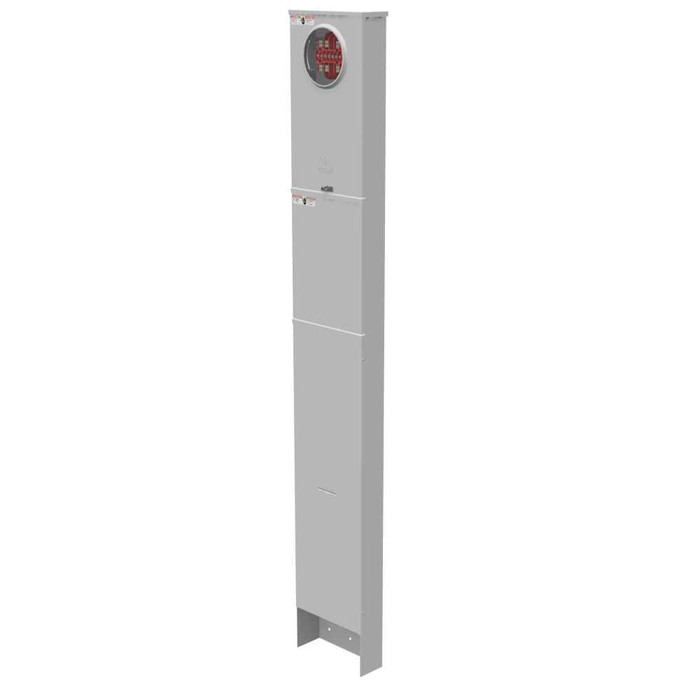

Milbank SC6129-O 13 Terminal Ringless Plain Top Pedestal With Test Switch Provision VT Pack Provision

Milbank 13 Terminal Ringless Meter Socket Pedestal 3 Phase 600V 20A with Test Switch Provision

(No reviews yet) Write a Review

Model: SC6129-O

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,189.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 13 Terminal Ringless Meter Socket Pedestal

Professional 3 Phase Metering Solution with Test Switch Provision

The Milbank 13 Terminal Ringless Meter Socket Pedestal delivers reliable 3 phase electrical metering for commercial and industrial applications. This single position meter socket features 600V AC voltage rating with 20 continuous ampere capacity, housed in durable G90 galvanized steel with powder coat finish for long-lasting outdoor performance. The 84-inch pedestal mount design with underground cable entry and Type 3R enclosure rating ensures professional installation flexibility and weather protection.

Professional Features & Benefits

  • 20 Continuous Ampere Rating: Provides reliable current handling capacity for consistent metering performance in demanding applications.
  • 3 Phase 600V AC Configuration: Supports commercial and industrial power systems with professional-grade voltage and phase specifications.
  • 13 Terminal Ringless Design: Eliminates the need for meter rings while providing secure electrical connections and simplified installation.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for enhanced durability.
  • Type 3R Enclosure Rating: Ensures reliable outdoor operation with protection against rain, sleet, and ice formation.
  • Test Switch Provision: Enables safe meter testing and maintenance procedures without service interruption.
  • Underground Cable Entry: Accommodates buried electrical service connections for clean, professional installations.

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 - 10 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 13 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: CT20
  • Product Height: 84 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 4.125L x 12W x 84H
  • Product Type: Ringless Meter Socket
  • Standard: Non UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 12 IN

Professional Applications

  • Commercial Building Electrical Service
  • Industrial Facility Metering
  • Multi-Tenant Properties
  • Retail and Office Complexes
  • Manufacturing Facilities
  • Utility Service Connections
  • Professional Electrical Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with Type 3R rated enclosures and G90 galvanized steel construction with powder coat finish for long-term durability. The glass polyester insulation and single mechanical terminals ensure consistent performance in demanding electrical metering applications, backed by professional-grade materials and construction standards.

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
12 - 10 AWG
Load Side Wire Range:
12 - 10 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
13 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
CT20
Product Height:
84 IN
Product Length:
4.125 IN
Product Size:
4.125L x 12W x 84H
Product Type:
Ringless Meter Socket
Standards:
Non UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
20
Product Width:
12 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank SC6129-O – Frequently Asked Questions

1) Does the Milbank SC6129-O 13 terminal meter socket pedestal carry the full service current, or is it for CT metering?
It is a 20 continuous ampere socket at 600V AC, 3 phase, 60 Hz, with no bypass and no main breaker. That 20A rating is the instrument circuit rating, not a service rating, so the SC6129-O is the metering cabinet used with a separate current transformer arrangement. Load current does not pass through this enclosure. If you need a socket that carries 100A, 200A or 400A of actual service load, this is the wrong part.
2) What size wire can I land in the Milbank SC6129-O meter pedestal?
Both line side and load side terminals accept 12 to 10 AWG, on single mechanical terminals. That is CT secondary wiring size, not service conductor size, which is consistent with the 20A instrument rating. Grounding is by ground lug.
3) How tall is the Milbank SC6129-O pedestal and how does it mount?
It is a pedestal mount unit measuring 4.125L x 12W x 84H inches, with the 84 inch height putting the meter at reading level once the base is set. Cable entry is underground, so plan a concrete base and conduit stub-up rather than overhead service. The top is a plain top with no hub opening.
4) Can the Milbank SC6129-O ringless meter pedestal be installed outdoors?
Yes. The enclosure is Type 3R, which covers outdoor exposure to rain, sleet and ice formation. Body is G90 galvanized steel with a powder coat finish. Note it is listed as Non UL Listed, so confirm your serving utility and inspector will accept it before you set it.
5) Do I need a meter ring for this Milbank pedestal, and how many jaws does it take?
No ring is required. It is a ringless socket with a 13 terminal jaw configuration and one meter position, so it takes a 13 jaw meter for 3 phase 4 wire transformer rated service. A 4 jaw, 5 jaw or 7 jaw meter will not seat in it.
6) Does this Milbank meter pedestal include a test switch or a main breaker?
The SC6129-O comes with a test switch provision, meaning the space and mounting for a test switch, not a breaker. There is no main breaker and no bypass, and no receptacles are included. Overcurrent protection and the test switch itself have to be ordered separately if your utility requires them.
7) What is the exact Milbank part number for this 13 terminal pedestal and which family is it?
The model is Milbank SC6129-O, in the CT20 product family. Quoting the CT20 family code plus the 13 terminal, 20A, 600V, 3 phase description is usually enough for a utility submittal.
8) Will this meter pedestal hold up in a coastal or industrial yard?
Construction is G90 galvanized steel with a powder coat finish over it, and internal insulation is glass polyester, which is what gives the barriers their dielectric and thermal stability at 600V. Type 3R protects against falling rain, sleet and ice, but it is not a washdown or dust tight rating, so a 4X enclosure is the better call in a heavy corrosion or hose down environment.
