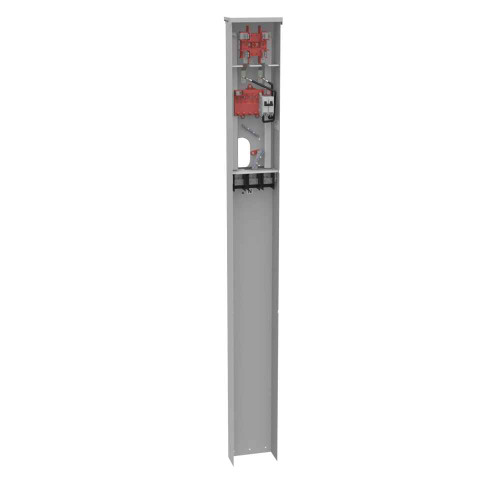

Milbank MPRV RV Meter Pedestal Ring Type 100A 240V Single Phase Direct Bury Power Distribution System

Milbank MPRV RV Meter Pedestal Ring Type 100A 240V Single Phase Direct Bury Power Distribution System

Professional RV Power Distribution for Campgrounds & Recreational Facilities

The Milbank MPRV RV Meter Pedestal delivers reliable 100 continuous ampere service at up to 240 volts alternating current for single phase applications. Built with G90 galvanized steel construction and powder coat finish, this 78-inch pedestal features fiberglass with resin insulation and underground cable entry for direct bury installation. The ring type meter socket accommodates 4 terminal connections with double mechanical terminals and supports wire ranges from 6 AWG to 350 kcmil.

Professional Features & Benefits

• 100 Continuous Ampere Rating: Provides robust power capacity for demanding RV electrical loads and multiple service connections.
• G90 Galvanized Steel with Powder Coat Finish: Delivers superior corrosion resistance and long-term durability in outdoor environments.
• UL Listed Type 3R Rating: Ensures compliance with safety standards and protection against weather conditions including rain and sleet.
• Fiberglass with Resin Insulation: Offers excellent electrical isolation and moisture resistance for reliable long-term performance.
• Direct Bury Underground Cable Entry: Simplifies installation with secure underground connections and clean pedestal appearance.
• Double Mechanical Terminals: Provides secure wire connections with reliable contact pressure for consistent electrical performance.
• 78-Inch Pedestal Height: Optimizes accessibility for meter reading and maintenance while meeting standard installation requirements.

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Fiberglass with Resin
• Line Side Wire Range: 6 AWG - 350 kcmil
• Number Of Jaws: 4 Terminal
• Phase: 1 Phase
• Product Height: 78 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Pedestal
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Double Mechanical
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• RV Parks and Campgrounds
• Recreational Vehicle Service Centers
• Mobile Home Communities
• Temporary Power Distribution Sites
• Outdoor Event Facilities
• Construction Site Power Distribution
• Marina and Boat Dock Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The fiberglass with resin insulation system ensures long-term performance in demanding outdoor environments, while the ground bar equipment grounding provides enhanced safety and code compliance for professional installations.
