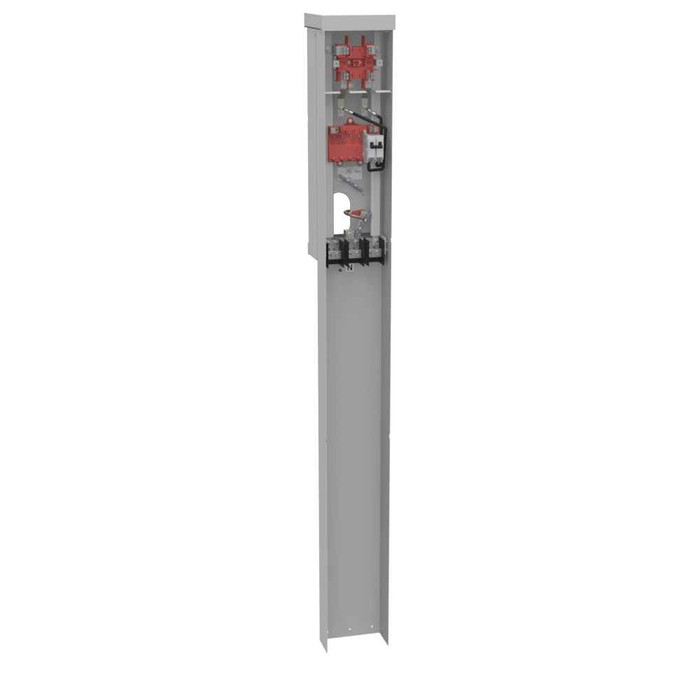

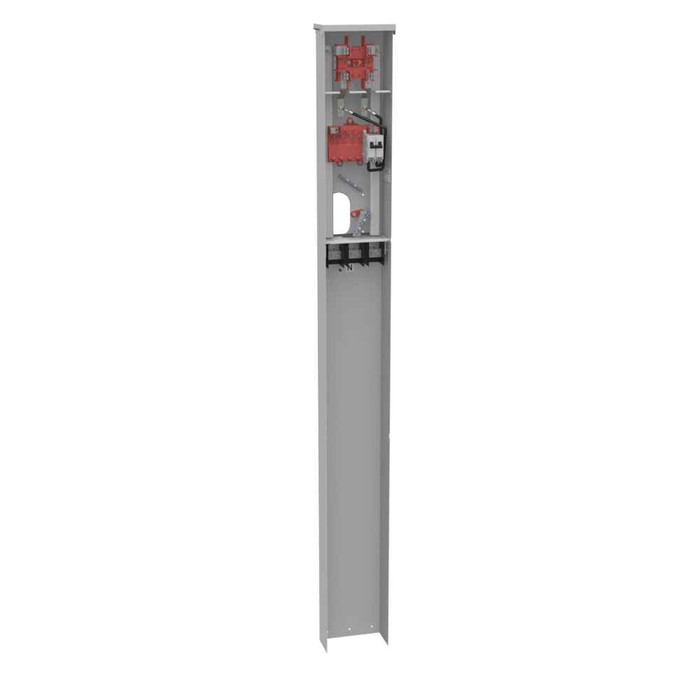

Milbank Ring-Type Meter Pedestal 100A 1-Phase 240V with Main Breaker Direct Bury Installation

Milbank Ring-Type Meter Pedestal 100A 1-Phase 240V with Main Breaker Direct Bury Installation

Professional Mobile Home Power Distribution Solution

The Milbank Ring-Type Meter Pedestal delivers reliable 100 continuous ampere service for mobile home power applications with 1-phase, up to 240V AC operation. Featuring G90 galvanized steel construction with powder coat finish and fiberglass with resin insulation, this 78-inch pedestal unit provides durable outdoor performance with Type 3R rating and UL listing for professional installations.

Professional Features & Benefits

• 100 Continuous Ampere Rating: Provides reliable power capacity for mobile home electrical service requirements with consistent performance.
• 1-Phase 240V Operation: Delivers standard residential voltage compatibility for comprehensive mobile home power distribution needs.
• G90 Galvanized Steel with Powder Coat: Ensures long-lasting corrosion resistance and durability in outdoor pedestal installations.
• Type 3R UL Listed: Meets professional safety standards for outdoor use with protection against rain, sleet, and ice formation.
• Direct Bury Installation: Simplifies underground cable entry setup with pedestal mounting for permanent outdoor service.
• 4 Terminal Double Mechanical: Provides secure electrical connections with reliable mechanical terminal design for professional installations.
• Fiberglass with Resin Insulation: Delivers superior electrical insulation properties for safe operation and enhanced protection.

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Application: Mobile Home Power
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Fiberglass with Resin
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 - 2/0 AWG
• Number Of Jaws: 4 Terminal
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Height: 78 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Pedestal
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Double Mechanical
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Mobile Home Parks and Communities
• Manufactured Housing Installations
• Temporary Housing Facilities
• RV Parks and Campgrounds
• Remote Residential Properties
• Construction Site Temporary Power
• Emergency Housing Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R outdoor rating, ensuring professional-grade performance in demanding mobile home power applications. The robust G90 galvanized steel construction with powder coat finish and fiberglass insulation provides long-term durability and safety for critical electrical service installations.
