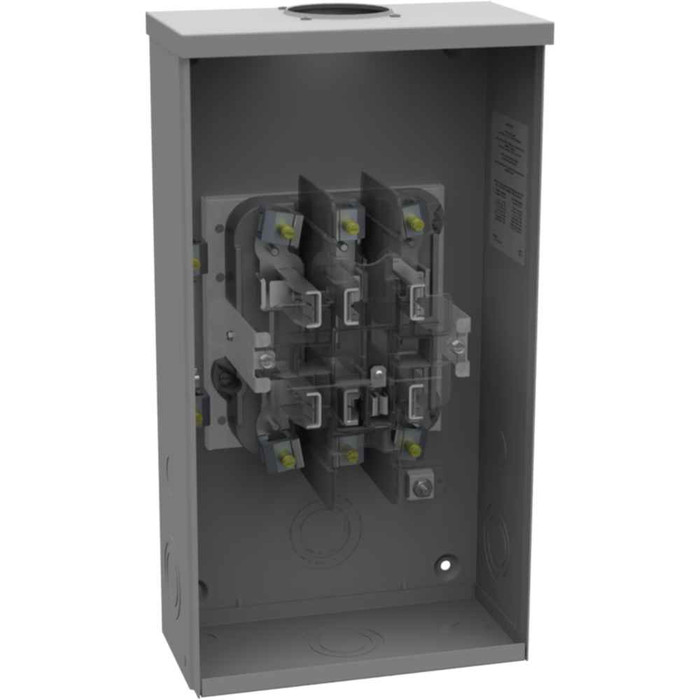

Milbank U1681-RL 7 Terminal Ringless Meter Socket Small Hub Open No Bypass 125 Ampere

Milbank 125 Amp 3 Phase Ringless Meter Socket with 7 Terminal Configuration

(No reviews yet) Write a Review

Model: U1681-RL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$398.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 125 Amp 3 Phase Ringless Meter Socket with 7 Terminal Configuration

Professional electrical metering solution for commercial and industrial applications

The Milbank 125 Amp 3 Phase Ringless Meter Socket delivers reliable electrical metering performance with 7 terminal configuration and 600V AC rating. Constructed with G90 galvanized steel and powder coat finish for durability, this UL Listed Type 3R enclosure provides professional-grade service for overhead cable entry applications requiring 125 continuous ampere capacity.

Professional Features & Benefits

  • 125 Continuous Ampere Rating: Provides reliable service capacity for demanding commercial and industrial electrical loads with consistent performance.
  • 3 Phase Configuration: Supports three-phase electrical systems for efficient power distribution in commercial facilities and industrial applications.
  • 7 Terminal Ringless Design: Eliminates the need for ring-type connections, simplifying installation and reducing maintenance requirements.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in challenging environmental conditions.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and provides protection against weather conditions for outdoor installations.
  • 600V AC Voltage Rating: Accommodates high-voltage applications with reliable insulation and safety performance.
  • Glass Polyester Insulation: Provides excellent electrical isolation and thermal stability for consistent long-term operation.

Technical Specifications

  • Amperage Rating: 125 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Hub Opening
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 - 2/0 AWG
  • Load Side Wire Range: 6 - 2/0 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: MD7T
  • Product Height: 18.5 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 10W x18.5H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 10 IN

Professional Applications

  • Commercial Buildings and Office Complexes
  • Industrial Facilities and Manufacturing Plants
  • Multi-Unit Residential Properties
  • Retail and Shopping Centers
  • Educational and Institutional Facilities
  • Healthcare and Medical Facilities
  • Municipal and Government Buildings

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the glass polyester insulation provides consistent electrical performance. Professional contractors trust Milbank for dependable electrical metering solutions that meet demanding commercial and industrial requirements.

Manufacturer Resources

Product Specs

Amperage Rating:
125 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Hub Opening
Insulation:
Glass Polyester
Line Side Wire Range:
6 - 2/0 AWG
Load Side Wire Range:
6 - 2/0 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
MD7T
Product Height:
18.5 IN
Product Length:
4.844 IN
Product Size:
4.844L x 10W x18.5H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
125
Product Width:
10 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U1681-RL – Frequently Asked Questions

1) Is the Milbank U1681-RL meter socket the right one for a 3-phase 4-wire service?
The U1681-RL is a 7 terminal socket, which is the jaw count utilities specify for 3 phase, 4 wire service metering. It is rated 3 phase, 600V AC, 60 Hz, at 125 continuous amps, with one meter position. If your utility called for a 5 jaw (3 phase 3 wire) or a 4 jaw single phase socket, this is not the one. Always confirm the jaw configuration against the utility's approved meter list before you set it.
2) What size conductors can I land in this 125 amp Milbank meter socket?
Both line and load terminals take 6 AWG through 2/0 AWG, and they are lay-in type lugs, so you drop the conductor in rather than threading it through a hole. That range covers the usual copper and aluminum feeder sizes for a 125 amp service. Equipment grounding is handled by a ground lug in the enclosure.
3) Can the Milbank U1681-RL be used with an underground service lateral?
No. The U1681-RL is built for overhead cable entry and comes with a small hub opening at the top for the service mast or raceway. For an underground lateral you want a socket configured for bottom feed. Using the overhead-entry version on a lateral means an unused top hub and no proper bottom entry provision.
4) Does this Milbank socket include a main breaker or a meter bypass?
Neither. The U1681-RL is a socket only, with no main breaker and no bypass provision. Overcurrent protection has to come from a separate disconnect or panel downstream, and because there is no bypass, the utility has to pull the meter to de-energize for service work. If your utility requires a lever bypass for maintenance under load, specify a bypass model instead.
5) Can this Milbank meter socket be mounted outdoors on an exterior wall?
Yes. It is UL Listed with a Type 3R enclosure, which is the rainproof rating for outdoor wall-mounted service equipment. The body is G90 galvanized steel with a powder coat finish, and it mounts to the surface of the wall. Type 3R is not rated for washdown or dust-tight locations, so an indoor process area with heavy airborne dust calls for a different enclosure type.
6) What does ringless mean on a Milbank meter socket, and does it change the meter I can use?
Ringless refers to how the cover is secured: instead of a sealing ring clamping the meter to the socket, a hinged or lift-off cover goes over the meter and is sealed by the utility. The meter itself is the same, what matters is the jaw count, which here is 7 terminal. Utilities specify ringless or ring style by territory, so order to whichever your serving utility approves.
7) Will this socket work on a 480Y/277V three phase service?
The insulation and jaw assembly are rated 600 volts AC, which covers 480Y/277V as well as 208Y/120V three phase four wire systems at 60 Hz. The insulating base is glass polyester. Current is the other limit: 125 continuous amperes, so size the service accordingly.
8) I need to order replacement meter sockets to match what is already on my buildings. What identifies this Milbank unit?
Order it as Milbank model U1681-RL, family code MD7T. That designation covers the 7 terminal ringless 3 phase socket, 125 amp, overhead entry with small hub opening, no bypass. If the existing cans on your property are labeled with a different Milbank number, match the jaw count, amperage, entry direction and bypass provision before assuming they interchange.
