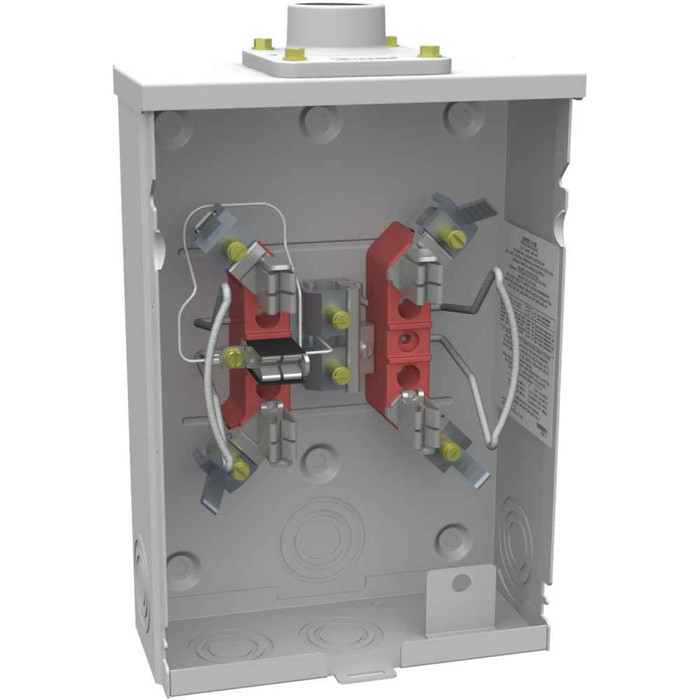

Milbank 125A 1-Phase Ringless Meter Socket with Horn Bypass and Triplex Ground

Milbank 125A 1-Phase Ringless Meter Socket with Horn Bypass and Triplex Ground

Professional electrical metering solution with horn bypass provision

The Milbank 125A 1-Phase Ringless Meter Socket delivers reliable electrical metering performance with professional-grade construction. Featuring G90 galvanized steel with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides 125 continuous ampere capacity with horn bypass provision and triplex ground configuration for versatile overhead or underground cable entry applications.

Professional Features & Benefits

• 125 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service applications with reliable current handling.
• Horn Bypass Provision: Enables temporary power continuity during meter maintenance or replacement without service interruption.
• Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and ice formation for outdoor installations.
• G90 Galvanized Steel Construction: Durable material with powder coat finish ensures long-term corrosion resistance and structural integrity.
• 5 Terminal Ringless Design: Simplifies installation with lay-in terminals accommodating 6-2/0 AWG wire range for both line and load connections.
• Triplex Ground Configuration: Provides proper grounding for safe electrical operation and code compliance.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and regulatory compliance.

Technical Specifications

• Amperage Rating: 125 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Horn Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Triplex Ground
• Frequency Rating: 60 Hertz
• Hub Closing Plate: 1 1/4 Inch Hub
• Insulation: Glass Polyester
• Line Side Wire Range: 6 - 2/0 AWG
• Load Side Wire Range: 6 - 2/0 AWG
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 5T12
• Product Height: 11.5 IN
• Product Length: 3.313 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 3.313L x 8W x11.5H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 8 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service installations
• Light commercial facilities
• Multi-unit residential properties
• Professional office buildings
• Retail establishments
• Service upgrade projects
• New construction electrical systems

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the professional-grade design provides dependable electrical metering performance for demanding applications.
