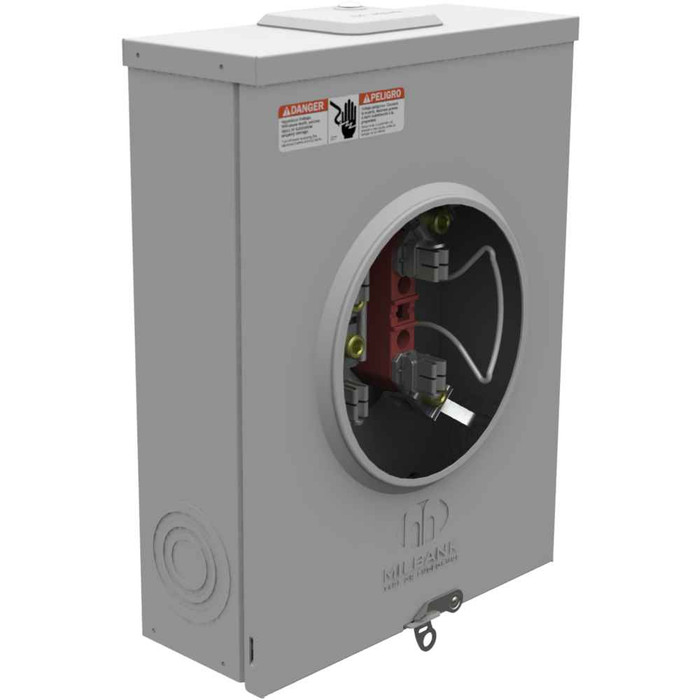

Milbank 200A Ringless Meter Socket 4 Terminal 1 Phase with Horn Bypass and Triplex Ground

Milbank 200A Ringless Meter Socket 4 Terminal 1 Phase with Horn Bypass and Triplex Ground

Professional Single Position Meter Socket with Advanced Grounding System

The Milbank 200A Ringless Meter Socket delivers reliable single-phase electrical metering with professional-grade construction. Featuring 4 terminal configuration with horn bypass provision and triplex ground system, this UL Listed Type 3R meter socket provides versatile overhead or underground cable entry options. Built with G90 galvanized steel construction and powder coat finish for superior durability and weather resistance in demanding electrical service applications.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable current capacity for residential and light commercial applications.
• 4 Terminal Ringless Design: Simplifies installation and maintenance with lay-in terminal configuration eliminating ring terminal requirements.
• Horn Bypass Provision: Enables temporary power continuity during meter maintenance or replacement procedures.
• Triplex Ground System: Provides enhanced electrical safety and code compliance with dedicated equipment grounding.
• Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and ice formation.
• G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-term performance in harsh environmental conditions.
• Overhead/Underground Compatible: Flexible cable entry accommodates various service entrance configurations and installation requirements.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Horn Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Triplex Ground
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 14.563 IN
• Product Length: 4.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.125L x 11W x14.563H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 11 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Metering
• Small Commercial Electrical Services
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Light Commercial Facilities
• Utility Company Metering Requirements
• Electrical Contractor Installations

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish provides exceptional durability, while the professional 4 terminal ringless design ensures efficient installation and long-term service performance in demanding electrical applications.
