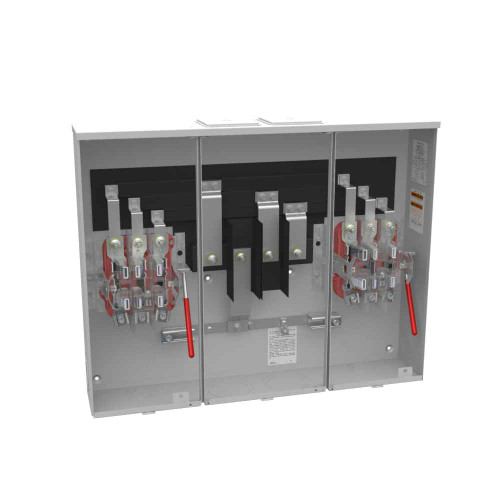

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 2 Position 7 Terminal

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 2 Position 7 Terminal

Professional Power Metering Solution for Multi-Unit Applications

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable power metering and distribution for commercial and multi-unit residential applications. This 2-position meter socket features a robust G90 galvanized steel construction with powder coat finish, providing Type 3R weatherproof protection for outdoor installations. The integrated lever bypass provision ensures safe maintenance operations while the 7 terminal configuration accommodates flexible wiring requirements for 3-phase electrical systems.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and multi-unit residential applications with reliable current capacity.
• 3-Phase Configuration: Supports balanced power distribution for efficient operation of commercial equipment and multiple residential units.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without interrupting power to critical loads.
• Type 3R Weatherproof Rating: Provides reliable outdoor protection against rain, sleet, and ice formation for long-term durability.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with professional powder coat finish.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
• Flexible Wire Range Capacity: Accommodates line side conductors from 4 AWG to 600 kcmil and load side from 2 AWG to 350 kcmil for versatile installation options.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground with Center Wireway
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
• Load Side Wire Range: 2 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 7 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 2 Positions
• Number Of Receptacles: 0
• Phase: 3 Phase
• Product Family Code: GHD2
• Product Height: 25.25 IN
• Product Length: 6 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 6L x 32.125W x 25.25H
• Product Type: Ringless Meter Socket
• Special Features: Consumers Energy
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 32.125 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties
• Commercial Buildings and Facilities
• Retail and Office Complexes
• Light Industrial Applications
• Municipal and Institutional Buildings
• Mixed-Use Developments

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weatherproof construction. The G90 galvanized steel with powder coat finish ensures long-term durability in demanding outdoor environments, while the comprehensive wire range compatibility provides installation flexibility for diverse electrical requirements.
