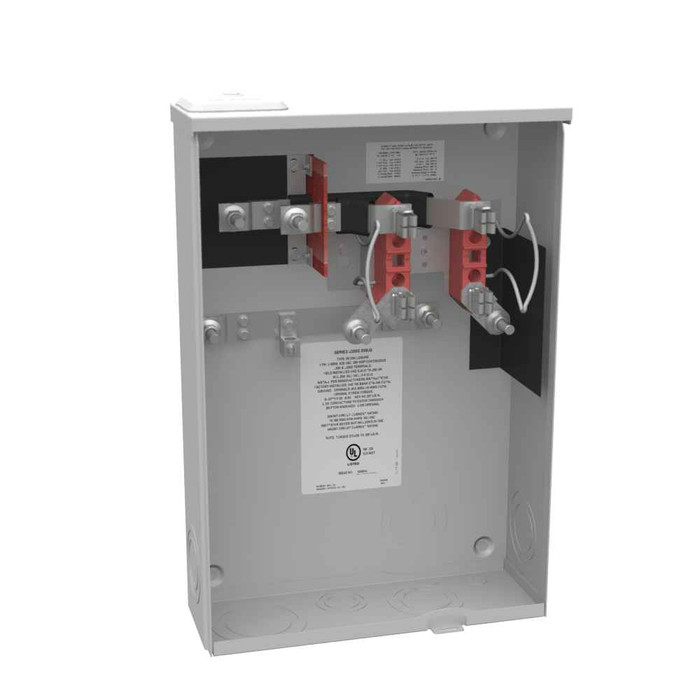

Milbank U2986-XL 4 Terminal Ringless Small Closing Plate Side Bussed Tall Stud Type

Milbank 200A 1-Phase Ringless Meter Socket with Small Closing Plate and Side Bussed Tall Stud Configuration

(No reviews yet) Write a Review

Model: U2986-XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$416.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Small Closing Plate and Side Bussed Tall Stud Configuration

Professional electrical metering solution for residential and commercial applications

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with professional-grade construction featuring G90 galvanized steel with powder coat finish and glass polyester insulation. This surface-mount meter socket accommodates overhead, underground, and side wireway cable entry with 3/8 inch stud terminals and ground lug equipment grounding for versatile installation requirements.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • 1-Phase 600V AC Configuration: Compatible with standard residential and commercial electrical systems for versatile installation applications.
  • G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in various environmental conditions.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and weather-resistant performance for outdoor installations.
  • Multiple Cable Entry Options: Accommodates overhead, underground, and side wireway connections for flexible installation configurations.
  • 4 Terminal Ringless Design: Simplifies meter installation and maintenance with secure stud-type connections and small closing plate configuration.
  • Glass Polyester Insulation: Delivers excellent electrical insulation properties and thermal stability for safe operation.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead and Underground and Side Wireway
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 19 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 13W x19H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Residential electrical service installations requiring 200A metering capacity
  • Small commercial facilities and office buildings
  • Multi-unit residential properties and condominiums
  • Retail establishments and light commercial applications
  • Professional service buildings and medical offices
  • Educational facilities and community centers
  • Industrial support buildings and maintenance facilities

Why Choose Milbank Quality?

Milbank delivers professional-grade electrical metering solutions with UL Listed Type 3R certification ensuring safety and weather resistance. The G90 galvanized steel construction with powder coat finish provides long-term durability and corrosion resistance for reliable service in demanding electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead and Underground and Side Wireway
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
19 IN
Product Length:
4.5 IN
Product Size:
4.5L x 13W x19H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U2986-XL – Frequently Asked Questions

1) Will the Milbank U2986-XL meter socket accept a standard 200A residential meter?
The U2986-XL is a single-position, 4 terminal (4 jaw) ringless socket rated 200 continuous amps at 1 phase, 600V AC, 60 Hz. That 4 jaw single-phase configuration is what a standard residential 200A self-contained meter drops into. It has no bypass provision, so the meter must be pulled to de-energize the load side.
2) Can the Milbank U2986-XL ringless meter socket be mounted outdoors on an exterior wall?
Yes. It's a surface-mount enclosure, UL Listed and rated Type 3R, which is the rain-tight outdoor classification for service equipment. The shell is G90 galvanized steel with a powder coat finish for corrosion resistance, and the live parts sit on glass polyester insulation.
3) Can I feed the Milbank U2986-XL from an underground lateral, or is it overhead only?
Both. Cable entry is listed for overhead, underground, and side wireway, so it works for a weatherhead drop, an underground service lateral, or a side-fed run from adjacent gear. It ships with a small closing plate on the hub opening, which you remove and replace with a hub when you go overhead.
4) Does the Milbank U2986-XL include a main breaker or disconnect?
No. It is a meter socket only, with no main breaker and no bypass. Zero breakers and zero receptacles are provided. You'll need a separate service disconnect or main breaker panel downstream of it to meet code for the service entrance.
5) What size conductors and lugs does the Milbank U2986-XL use for the line and load connections?
Line and load connections are 3/8 inch stud terminals, not screw-type lugs, so you terminate with ring-tongue or two-hole compression lugs sized for a 3/8 inch bolt. Equipment grounding is through a ground lug in the enclosure.
6) Is the Milbank U2986-XL suitable for a 3-phase commercial service?
No. It's a 1 phase, 4 terminal socket. A 3 phase service needs a 7 jaw socket. For 120/240V single-phase residential and light commercial 200A services at up to 600V AC, this is the right configuration.
7) Can I use the Milbank U2986-XL where the utility requires a meter bypass for hot socket changes?
No. This socket has no bypass provision, so the meter must be pulled to interrupt service. If your utility requires lever or horn bypass for safe meter exchange, specify a bypass-equipped 200A socket instead.
8) What are the dimensions of the Milbank U2986-XL meter socket, and will it fit my existing mounting footprint?
Overall size is 4.5 L x 13 W x 19 H inches, so 13 inches wide by 19 inches tall with a 4.5 inch depth off the wall. Measure your existing can before swapping; a shorter standard-stud socket will leave the conduit entries out of line if the new box is taller.
9) What's the difference between a ringless meter socket like this Milbank unit and a ring-type socket?
A ringless socket, which is what the U2986-XL is, uses a hinged or lift-off cover that the utility seals directly, with no separate sealing ring around the meter. Ring-type sockets use a locking ring clamped around the meter rim. Utilities specify one or the other, and they are not interchangeable, so confirm your utility accepts ringless before ordering.
10) I need to standardize 200A meter sockets across a multi-family property. What identifies this exact Milbank configuration?
Order by manufacturer part number U2986-XL. It's the 4 terminal ringless, small closing plate, side bussed tall stud version in Milbank's 4T20 product family. Specifying the full part number matters because the same 200A family includes short-stud, standard-stud, and bypass variants that are not drop-in equals.
11) Does this Milbank socket need a hub, and is one included?
It comes with a small closing plate covering the hub opening. If the service comes in overhead through the top, you'll remove that plate and install a hub sized to your conduit, purchased separately. Underground or side wireway feeds leave the closing plate in place.
