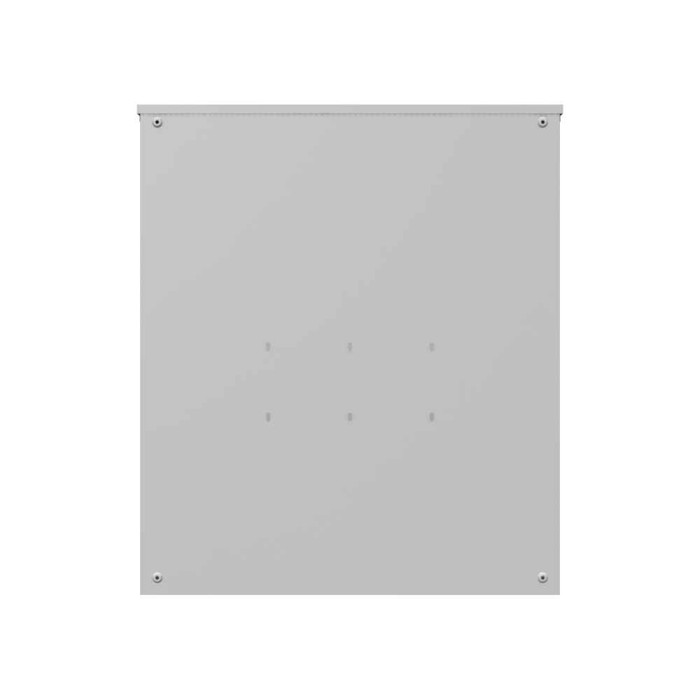

Milbank 15 Terminal Ring Type Meter Socket 3 Phase 600V 20A with Current Transformer Rack
Professional 3-Phase Metering Solution with Current Transformer Provision
The Milbank 15 Terminal Ring Type Meter Socket delivers reliable 3-phase electrical metering for commercial and industrial applications. This UL Listed meter socket features a robust G90 galvanized steel construction with powder coat finish, 600V AC rating, and 20 continuous ampere capacity. The unit includes current transformer rack provision, large hub opening for overhead cable entry, and single front lift-off screw cover for convenient access.
Professional Features & Benefits
- 15 Terminal Ring Type Design: Provides secure connections for comprehensive 3-phase metering applications with reliable mechanical terminal connections.
- 600V AC / 20A Continuous Rating: Handles demanding commercial voltage and amperage requirements with consistent performance and safety.
- G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and long-lasting durability in various environmental conditions.
- Current Transformer Rack Provision: Accommodates CT installation for accurate power measurement and monitoring in commercial metering systems.
- Type 3R Enclosure Rating: Provides protection against rain, sleet, and ice formation for reliable outdoor installation performance.
- UL Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.
- Large Hub Opening Design: Facilitates overhead cable entry and simplifies installation with adequate conductor access space.
Technical Specifications
- Amperage Rating: 20 Continuous Ampere
- Application: Meter Socket
- Brand Name: Milbank
- Bypass Provision: No Bypass
- Cable Entry: Overhead
- Departent: Electrical
- Equipment Ground: Ground Lug
- Frequency Rating: 60 Hertz
- Hub Closing Plate: Large Hub Opening
- Insulation: Glass Polyester
- Line Side Wire Range: 14 - 10 AWG
- Load Side Wire Range: 14 - 10 AWG
- Main Breaker Size: No Main Breaker
- Number Of Jaws: 15 Terminal
- Number Of Main Breakers: 0
- Number Of Meter Positions: 1 Position
- Number Of Receptacles: 0
- Phase: 3 Phase
- Product Family Code: TRNS
- Product Height: 42 IN
- Product Length: 11 IN
- Product Material: G90 Galvanized Steel with Powder Coat Finish
- Product Mounting: Surface Mount
- Product Size: 11L x 36W x42H
- Product Type: Ring Type Meter Socket
- Standard: UL Listed;Type 3R
- Terminal: Single Mechanical
- Unspsc Number: 39121102
- Voltage Rating: 600 Volts Alternating Current
- Width: 36 IN
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Commercial Building Metering
- Industrial Facility Power Monitoring
- Multi-Tenant Properties
- Manufacturing Operations
- Retail and Office Buildings
- Educational Institutions
- Healthcare Facilities
Why Choose Milbank Quality?
Milbank meter sockets provide dependable performance with UL Listed certification and Type 3R enclosure protection. The G90 galvanized steel construction with powder coat finish ensures long-term reliability in demanding commercial and industrial environments, backed by proven engineering and manufacturing excellence.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 20 Continuous Ampere
- Application:
- Meter Socket
- Brand Name:
- Milbank
- Bypass Provision:
- No Bypass
- Cable Entry:
- Overhead
- Departent:
- Electrical
- Equipment Ground:
- Ground Lug
- Frequency Rating:
- 60 Hertz
- Hub Closing Plate:
- Large Hub Opening
- Insulation:
- Glass Polyester
- Line Side Wire Range:
- 14 - 10 AWG
- Load Side Wire Range:
- 14 - 10 AWG
- Main Breaker Size:
- No Main Breaker
- Number Of Jaws:
- 15 Terminal
- Number Of Main Breakers:
- 0
- Number Of Meter Positions:
- 1 Position
- Number Of Receptacles:
- 0
- Phase:
- 3 Phase
- Product Family Code:
- TRNS
- Product Height:
- 42 IN
- Product Length:
- 11 IN
- Product Size:
- 11L x 36W x42H
- Product Type:
- Ring Type Meter Socket
- Standard:
- UL Listed;Type 3R
- Terminal:
- Single Mechanical
- Unspsc Number:
- 39121102
- Voltage Rating:
- 600 Volts Alternating Current
- Width:
- 36 IN
- Product Material:
- G90 Galvanized Steel with Powder Coat Finish
- Product Mounting:
- Surface Mount
