Milbank 200A 1-Phase Ringless Meter Socket with Triplex Ground and Stainless Steel Hasp

Professional electrical metering solution with enhanced security features

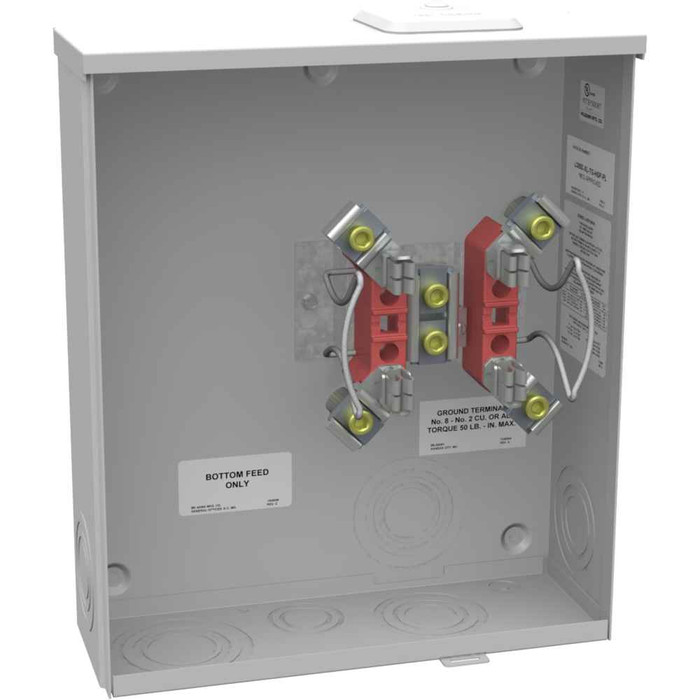

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with professional-grade construction. Featuring 200 continuous ampere rating, 1-phase 600V AC operation, and G90 galvanized steel with powder coat finish, this UL Listed Type 3R enclosure provides dependable service for residential and commercial applications. The 4-terminal design with triplex ground configuration and integrated stainless steel hasp with 7/8" knockout for barrel lock provision ensures secure installation and operation.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable current capacity for demanding applications
  • Type 3R UL Listed Enclosure: Weather-resistant construction provides protection against rain, sleet, and ice formation for outdoor installations
  • G90 Galvanized Steel with Powder Coat: Superior corrosion resistance and durability for long-term performance in harsh environments
  • 4-Terminal Ringless Design: Simplified installation with lay-in terminals accommodating 6 AWG to 350 kcmil wire range
  • Triplex Ground Configuration: Enhanced grounding system ensures electrical safety and code compliance
  • Stainless Steel Hasp with Lock Provision: Security features with 7/8" knockout for barrel lock installation prevent unauthorized access
  • Glass Polyester Insulation: High-quality insulation materials provide electrical isolation and safety

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 7/8 Inch Knockout for Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Triplex Ground
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 15.25 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 13W x15.25H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Residential electrical service metering installations
  • Commercial building electrical distribution systems
  • Multi-unit residential properties and apartment complexes
  • Small commercial and retail establishments
  • Professional office buildings and medical facilities
  • Light industrial and warehouse applications
  • Municipal and institutional electrical services

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the professional-grade insulation and grounding systems provide safe, code-compliant electrical service for demanding applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Barrel Lock Provision:
7/8 Inch Knockout for Barrel Lock Provision
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Triplex Ground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
15.25 IN
Product Length:
4.5 IN
Product Size:
4.5L x 13W x15.25H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U3850-XL-TG-HSP-PL – Frequently Asked Questions

1) Will the Milbank U3850-XL-TG-HSP-PL meter socket work for a 200A single-phase residential service?
That's exactly what the U3850-XL-TG-HSP-PL is built for: 200 continuous amps, 1 phase, 600V AC, 60 Hz, with one meter position and a 4-terminal (4 jaw) socket. The 4-jaw ringless arrangement is the standard single-phase 3-wire residential/light commercial meter configuration.
2) Does this Milbank ringless socket include a main breaker or a meter bypass?
No on both counts. The U3850-XL-TG-HSP-PL is a socket-only can: no main breaker (zero breaker positions), no bypass provision, and no receptacles. Overcurrent protection has to come from a separate main breaker panel or disconnect downstream. If your utility requires a lever bypass or you want meter-main in one enclosure, you need a different Milbank catalog number.
3) What size service conductors will fit the lay-in terminals on this 200A meter socket?
Both line and load sides take 6 AWG through 350 kcmil in lay-in terminals, so typical 200A service copper or aluminum (4/0 AL, 2/0 CU) lands without adapters. Lay-in means you drop the conductor in rather than threading it through a bore, which is faster when you are working overhead service entrance cable.
4) Can this meter socket be used for an underground service, or is it overhead only?
Either. Cable entry is rated overhead or underground, and it ships with a small hub closing plate covering the top opening. For an overhead drop you remove the closing plate and fit the appropriate conduit hub; for underground lateral you leave the plate in place and bring conduit in the bottom.
5) Is this Milbank meter socket rated for outdoor mounting on an exterior wall?
Yes. The enclosure is UL Listed and Type 3R, which is the outdoor rating for rain, sleet, and ice, and it is a surface mount can for an exterior wall. The shell is G90 galvanized steel with a powder coat finish, and internal insulation is glass polyester.
6) What is the difference between a ringless meter socket and a ring-type socket, and which do I need?
The difference is how the meter cover is retained. A ringless socket like the U3850-XL-TG-HSP-PL uses a one-piece hinged cover that fits over the meter and latches to the can, no separate sealing ring. A ring-type uses a locking ring clamped around the meter rim. They are not interchangeable, and which one you install is dictated by your serving utility's approved materials list, so confirm with the utility before ordering.
7) Is a conduit hub included with the Milbank U3850-XL-TG-HSP-PL?
No hub is included. What is supplied is a small hub closing plate over the opening, so if the installation calls for a threaded hub (overhead mast or a top conduit entry) you order that separately and size it to your raceway.
8) What does the triplex ground option on this Milbank socket actually mean for my install?
Triplex ground means the can is factory-equipped with a grounding provision sized for triplex service entrance cable, so the neutral/grounded conductor of the triplex lands on a dedicated ground connection in the socket instead of you adding a kit in the field. It is the configuration most utilities call for on overhead residential drops fed with triplex.
9) Can the utility lock this meter socket, and what lock does it take?
Yes. A stainless steel hasp is integrated, with a 7/8 inch knockout for a barrel lock provision, so the utility can seal it with a standard barrel lock or you can padlock the hasp. Stainless on the hasp is the practical part, it will not seize up with rust on a coastal or salted-road install.
10) How much wall space do I need for this 200A ringless socket?
Plan on 13 inches wide by 15.25 inches high, with 4.5 inches of depth off the wall. Worth checking against the old can before you demo an existing socket, since the mounting footprint and the meter centerline height set whether you can reuse the existing service entrance conductors.
11) I'm standardizing meter cans across a multi-unit property. How many meters does this one serve?
One. The U3850-XL-TG-HSP-PL is a single-position socket, so you need one per metered unit plus the gang or trough arrangement your utility approves. For multiple tenants in one enclosure you would be looking at a Milbank multi-position gang socket instead, not this single can.
