Milbank 200A Ring Type Meter Socket 1 Phase 600V Underground Entry with Plain Top

Milbank 200A Ring Type Meter Socket 1 Phase 600V Underground Entry with Plain Top

Professional single-phase metering solution with underground cable entry

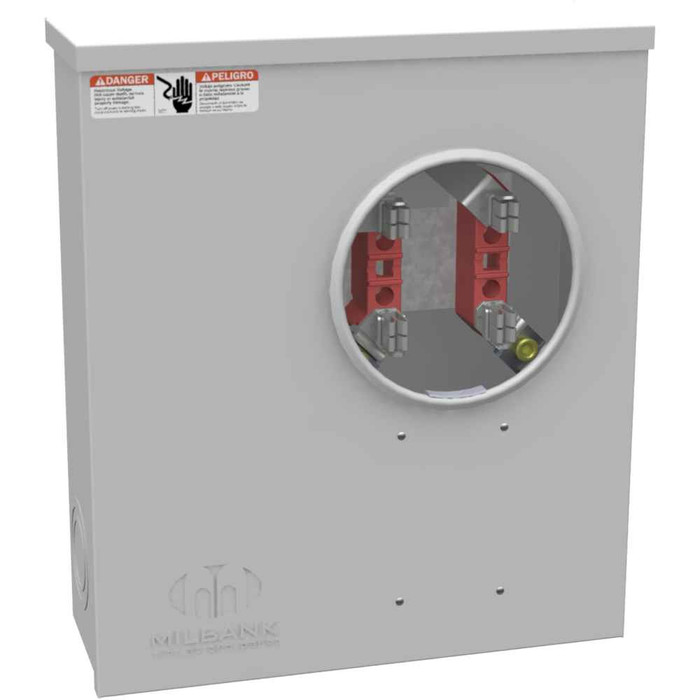

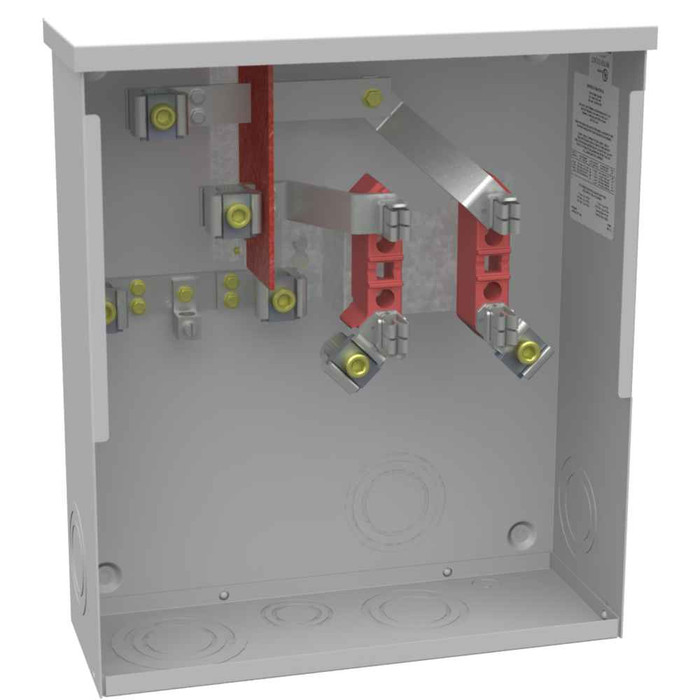

The Milbank 200A Ring Type Meter Socket delivers reliable single-phase electrical metering for residential and commercial applications. This UL Listed Type 3R rated unit features a durable G90 galvanized steel construction with powder coat finish, designed for surface mounting with underground cable entry. The 4 terminal ring type design accommodates 6 AWG to 350 kcmil wire ranges on both line and load sides, providing versatile connection options for 600V AC systems.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• 600V AC Voltage Rating: Compatible with standard electrical systems while providing safety margin for voltage variations.
• G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and long-lasting durability in outdoor environments.
• UL Listed Type 3R Rating: Meets stringent safety standards for outdoor installation with protection against weather conditions.
• Underground Cable Entry: Designed specifically for underground service connections, providing clean installation appearance.
• 4 Terminal Ring Type Design: Ensures secure electrical connections with lay-in terminals for reliable power transfer.
• Glass Polyester Insulation: Provides excellent electrical isolation and thermal stability for safe operation.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Triplex Ground
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 16.25 IN
• Product Length: 5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5L x 14W x16.25H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 14 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service metering
• Small commercial facility power monitoring
• Multi-unit residential properties
• Professional office buildings
• Retail establishments
• Light industrial applications
• Underground service installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection rating. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the glass polyester insulation provides superior electrical safety. Trust Milbank's professional-grade metering solutions for dependable electrical service monitoring.
