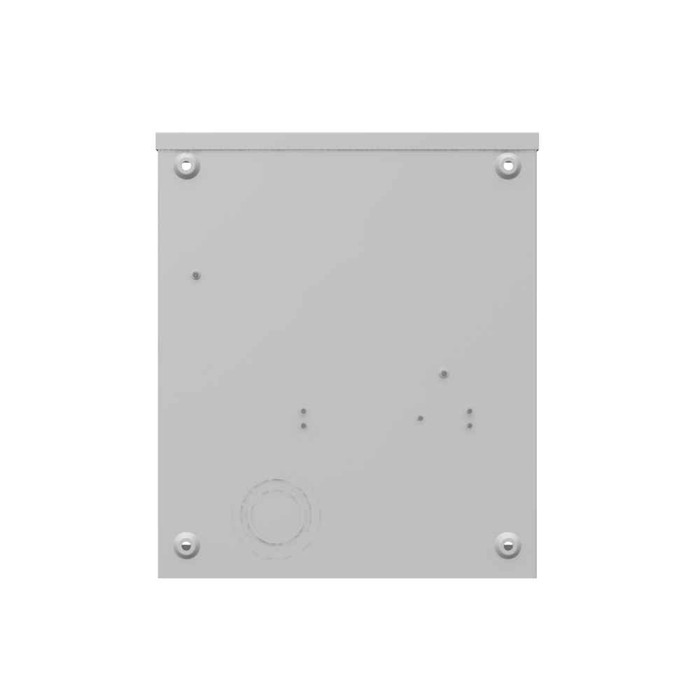

Milbank 200A 1-Phase Ring Type Meter Socket with 4 Terminal Side Bussed Underground Entry

Milbank 200A 1-Phase Ring Type Meter Socket with 4 Terminal Side Bussed Underground Entry

Professional electrical metering solution with durable galvanized steel construction

The Milbank 200A 1-Phase Ring Type Meter Socket delivers reliable electrical metering for residential and commercial applications. Featuring a robust G90 galvanized steel construction with powder coat finish and Type 3R rating, this surface-mount meter socket provides 200 continuous ampere capacity with 4 terminal ringless design and side bussed configuration for underground cable entry with side wireway access.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides substantial electrical capacity for demanding residential and light commercial applications with reliable current handling.
• G90 Galvanized Steel with Powder Coat Finish: Delivers superior corrosion resistance and long-lasting durability in outdoor installations and harsh environmental conditions.
• Type 3R Rating: Ensures reliable protection against rain, sleet, and ice formation while maintaining safe operation in outdoor environments.
• 4 Terminal Ringless Design: Simplifies installation and maintenance with secure lay-in terminal connections accommodating 2 AWG to 350 kcmil wire range.
• Underground Cable Entry with Side Wireway: Facilitates clean underground service connections with convenient side access for wire management and routing.
• UL Listed Certification: Meets rigorous safety and performance standards ensuring code compliance and reliable operation in professional installations.
• Glass Polyester Insulation: Provides excellent electrical isolation and thermal stability for consistent performance across temperature variations.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground with Side Wireway
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 2 AWG - 350 kcmil
• Load Side Wire Range: 2 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 15.25 IN
• Product Length: 4.5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.5L x 13W x15.25H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Metering
• Small Commercial Building Electrical Service
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Light Commercial Establishments
• Underground Service Installations
• Utility Company Metering Requirements

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R environmental protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance, while the glass polyester insulation provides consistent electrical performance for professional metering applications.
