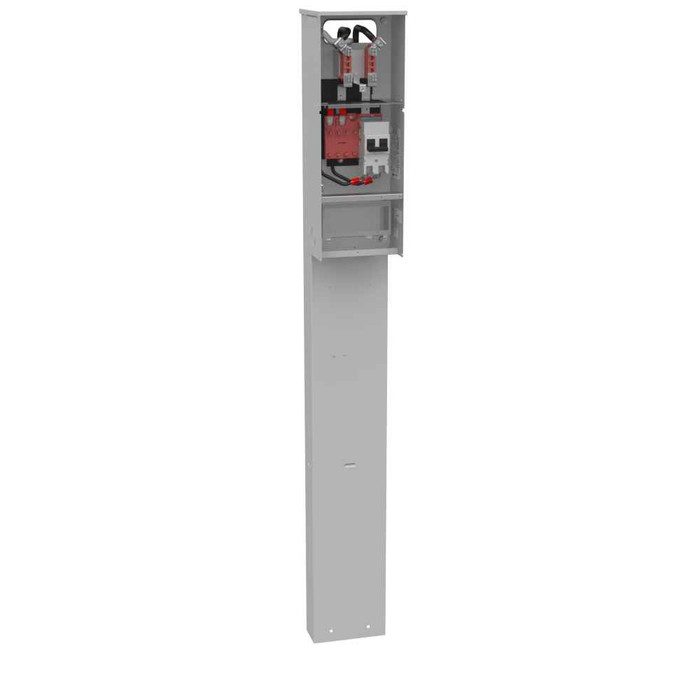

Milbank U5240–U5242 4 Terminal Ring Type Meter Socket - Plain Top Direct Bury & Pad Mount Configurations

Milbank 4 Terminal Ring Type Meter Socket 240V 1 Phase with Multiple NEMA Receptacles Underground Entry

(No reviews yet) Write a Review

Model: U5240-O-75

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,541.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 4 Terminal Ring Type Meter Socket 240V 1 Phase with Multiple NEMA Receptacles Underground Entry

Professional Mobile Home Power Distribution with Underground Entry

The Milbank 4 Terminal Ring Type Meter Socket delivers reliable 1 phase power distribution up to 240 volts alternating current, specifically designed for mobile home power applications. Featuring G90 galvanized steel construction with powder coat finish and Type 3R rating, this underground entry meter socket provides durable performance with glass polyester insulation and double mechanical terminals for secure connections.

Professional Features & Benefits

  • 240V 1 Phase Rating: Handles up to 240 volts alternating current for comprehensive mobile home power distribution needs
  • 4 Terminal Ring Type Design: Provides secure double mechanical terminal connections for reliable electrical service
  • Multiple NEMA Receptacles: Includes one NEMA 14-50, one NEMA TT30, and one NEMA 5-20 ground fault receptacle for versatile connectivity
  • Underground Cable Entry: Plain top configuration designed for direct bury and pad mount installations
  • G90 Galvanized Steel Construction: Powder coat finish provides superior corrosion resistance and long-term durability
  • Type 3R Rating: UL listed enclosure protects against rain, sleet, and ice formation for outdoor applications
  • 6 AWG - 350 kcmil Wire Range: Accommodates various conductor sizes for flexible installation requirements

Technical Specifications

  • Application: Mobile Home Power
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Jaws: 4 Terminal
  • Phase: 1 Phase
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Type: Ring Type Meter Socket
  • Receptacle Configuration: One NEMA 14-50 and One NEMA TT30 and One NEMA 5-20 Ground Fault
  • Standard: UL Listed;Type 3R
  • Terminal: Double Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 9.688 IN

Professional Applications

  • Mobile Home Parks and Communities
  • Recreational Vehicle Sites
  • Temporary Power Distribution
  • Pad Mount Electrical Service
  • Direct Bury Underground Installations
  • Outdoor Power Distribution Centers

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL listed Type 3R rated construction and G90 galvanized steel with powder coat finish for superior weather resistance. The glass polyester insulation and double mechanical terminals ensure long-term performance in demanding outdoor mobile home power applications.

Manufacturer Resources

Product Specs

Application:
Mobile Home Power
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Number Of Jaws:
4 Terminal
Phase:
1 Phase
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Double Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Width:
9.688 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Terminal Type:
Double Mechanical
Number of Phases:
1
Product Details:
Ring Type Meter Socket
Frequency:
60 hertz
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U5240-O-75 – Frequently Asked Questions

1) What is the difference between the U5240, U5241 and U5242 Milbank pedestals?
They split three ways. U5240 is a single pedestal for direct bury. U5241 is a double pedestal for direct bury, and it comes with dual mains (two 100A or two 200A) so it feeds two lots off one unit. U5242 is a single pedestal for pad mount, where you are setting it on a concrete pad rather than burying the post. Pick the number by how many services you are feeding and how the unit is being set, then pick the main from the suffix.
2) Does the Milbank U5240 come with a main breaker or do I have to buy one?
Both ways are sold. U5240-O and U5242-O are main breaker provision only, meaning the space and mounting are there but you supply the breaker. If you want it factory equipped, order a suffix: -100S gives a 100A main, -200S or -200P gives a 200A main. On the double pedestal, U5241-O-100S carries dual 100A mains and U5241-O-200S or -200P carries dual 200A. Decide this before you order, because the provision units ship without the breaker.
3) What does series wired versus parallel wired mean when ordering a Milbank mobile home pedestal?
It is how the meter socket and the main breaker are tied together inside the pedestal, and utilities specify one or the other. Series wired routes the service through the meter and then the breaker in sequence; parallel wired taps them off the same line landing. Milbank builds both: U5240-O-200S is the series wired 200A, U5240-O-200P the parallel wired 200A, and the same S and P split runs through the double pedestal U5241-O-200S and U5241-O-200P. Ask your serving utility which they accept before you order, because the two are not interchangeable in the field.
4) What size service conductors can I land in a Milbank U5240 meter pedestal?
The line side terminals take 6 AWG through 350 kcmil, so anything from a small 100A feed up to a full 200A aluminum service lands directly without a splice or a reducer. They are double mechanical terminals, which means two conductors per terminal where the utility feed is doubled up. Glass polyester insulation carries the jaws.
5) Can I bring the service in overhead through the top of this Milbank pedestal?
No. The U5240 series is an underground entry unit with a plain top, which means there is no hub opening for a weatherhead or mast. Cable comes up from below, either direct bury on the U5240 and U5241 posts or through the pad on the U5242. If the lot is fed overhead you need a socket built with a hub opening instead.
6) Is this Milbank pedestal rated to sit outside in the weather year round?
Yes. It is UL Listed and built to Type 3R, the outdoor rating that covers rain, sleet, and ice on the enclosure. The shell is G90 galvanized steel with a powder coat finish over it, which is the standard corrosion package for a unit that lives in the dirt at a mobile home or RV lot.
7) How wide is the Milbank U5240 meter pedestal enclosure?
9.688 inches wide. That matters when you are spacing pedestals along a row of lots or fitting one between an existing post and a fence line. On the U5241 double pedestal you are feeding two services out of the one cabinet, which is the usual way to keep a tight lot spacing without setting two separate units.
