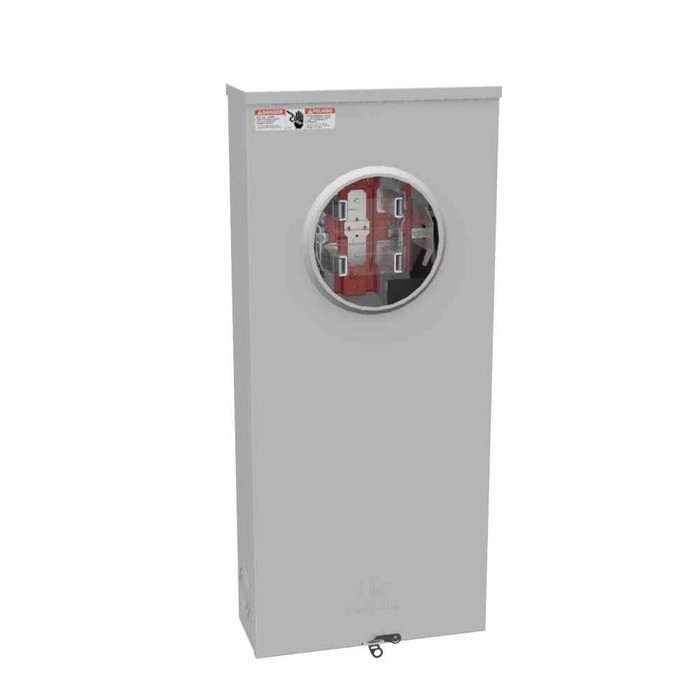

Milbank 320A Ringless Meter Socket 1 Phase 600V Underground Entry with Plain Top

Milbank 320A Ringless Meter Socket 1 Phase 600V Underground Entry with Plain Top

Professional electrical metering solution for underground service applications

The Milbank 320A Ringless Meter Socket delivers reliable single-phase electrical metering with 320 continuous ampere capacity and 600V AC rating. Featuring durable G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides professional performance for underground cable entry applications with glass polyester insulation and 4-terminal ringless design.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Handles high-capacity electrical loads with reliable current-carrying performance for demanding applications.
• 600V AC Single Phase: Compatible with standard residential and light commercial voltage systems for versatile installation options.
• Type 3R Enclosure Rating: Weather-resistant construction protects internal components from outdoor environmental conditions.
• G90 Galvanized Steel with Powder Coat: Corrosion-resistant materials ensure long-term durability and professional appearance.
• Underground Cable Entry: Designed specifically for below-grade service connections with appropriate sealing and protection.
• UL Listed Certification: Meets rigorous safety standards for electrical equipment installation and operation.
• 4-Terminal Ringless Design: Simplifies meter installation and removal without requiring ring-type connections.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: 2 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T32
• Product Height: 29.75 IN
• Product Length: 4.875 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.875L x 13W x29.75H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: 3/8 Inch Stud
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Underground Service Connections
• Light Commercial Electrical Metering
• Multi-Unit Property Electrical Distribution
• Professional Office Building Services
• Retail Establishment Power Metering
• Underground Utility Service Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The durable G90 galvanized steel with powder coat finish ensures long-term performance in demanding electrical applications, backed by professional-grade materials and rigorous safety standards.
