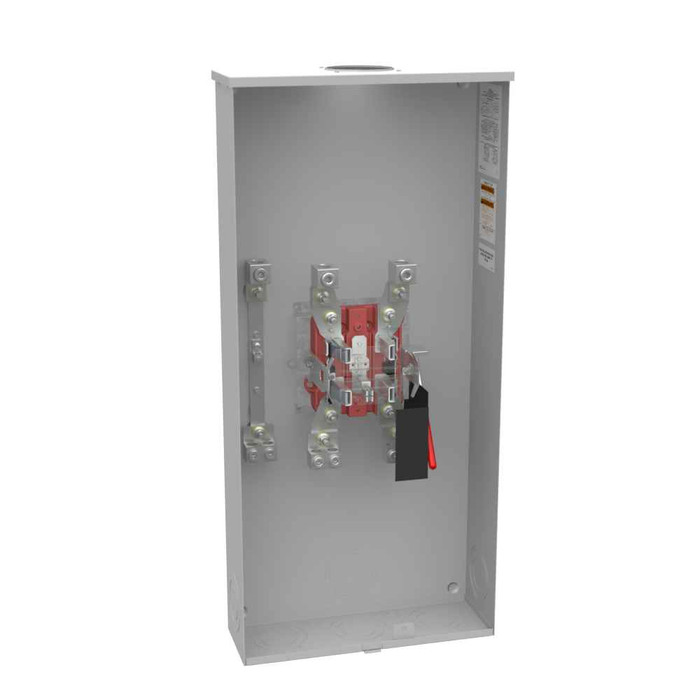

Milbank 320A Ringless Meter Socket with Lever Bypass and K3/K2 Connectors - Single Phase Utility Grade

Milbank 320A Ringless Meter Socket with Lever Bypass and K3/K2 Connectors - Single Phase Utility Grade

Professional utility-grade metering solution with integrated bypass functionality

The Milbank 320A Ringless Meter Socket delivers reliable single-phase electrical metering with integrated lever bypass capability and K3/K2 connector compatibility. Constructed with G90 galvanized steel and powder coat finish in a Type 3R enclosure, this utility-grade meter socket provides 320 continuous ampere capacity with glass polyester insulation and ground lug equipment grounding for professional electrical installations.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Handles substantial electrical loads for commercial and large residential applications with reliable current capacity.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption through integrated bypass functionality.
• K3/K2 Connector Compatibility: Accommodates specialized utility connections with flexible overhead or underground cable entry options.
• Type 3R Enclosure Rating: Provides weather-resistant protection suitable for outdoor installations with G90 galvanized steel construction.
• Glass Polyester Insulation: Ensures reliable electrical isolation and performance in demanding utility applications.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
• Flexible Wire Range Capacity: Accommodates line side connections from 4 AWG to 600 kcmil and load side connections from 6 AWG to 350 kcmil.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Hub Opening
• Insulation: Glass Polyester
• Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 5T32
• Product Height: 38.75 IN
• Product Length: 6 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Unspsc Number: 39121102
• Width: 17.75 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Service
• Large Residential Properties
• Multi-Unit Housing Developments
• Industrial Facility Metering
• Utility Service Connections
• Professional Office Buildings
• Retail and Commercial Establishments

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability in demanding outdoor utility applications, while the glass polyester insulation provides dependable electrical performance for professional installations.
