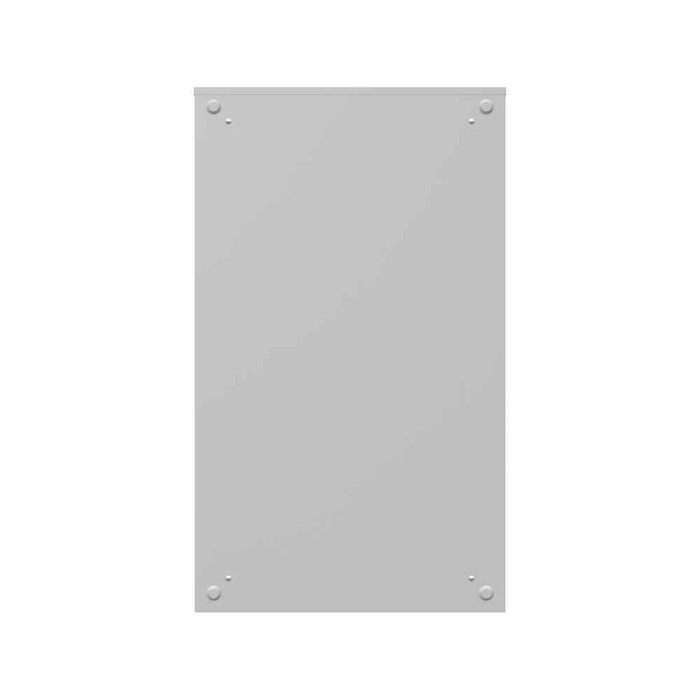

Milbank U4769-O 32in-54in-14in Painted Steel No Knockouts Lift Off Front Hasp Wood Back Panel Installed

Milbank Current Transformer Enclosure 32" x 54" x 14" NEMA 3R Galvanized Steel with Powder Coat Finish

(No reviews yet) Write a Review

Model: U4769-O

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,875.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Current Transformer Enclosure 32" x 54" x 14" NEMA 3R Galvanized Steel with Powder Coat Finish

Professional Current Transformer Housing with Weather Protection

The Milbank Current Transformer Enclosure delivers reliable protection for current transformer installations with NEMA Type 3R weather resistance. Constructed from G90 galvanized steel with powder coat finish in ANSI 61 Gray, this wall-mount enclosure features a single door design with lift-off front hasp and includes a wood back panel for secure mounting of current transformer components.

Professional Features & Benefits

  • NEMA Type 3R Rating: Provides weather-resistant protection against rain, sleet, and ice formation for outdoor installations.
  • G90 Galvanized Steel Construction: Ensures long-lasting durability with superior corrosion resistance and structural integrity.
  • Powder Coat Finish: Delivers enhanced surface protection and professional ANSI 61 Gray appearance for commercial applications.
  • Current Transformer Mounting Rack Provision: Facilitates organized installation and secure mounting of current transformer equipment.
  • Wood Back Panel Included: Provides solid mounting surface for components and simplifies installation procedures.
  • UL Listed: Meets rigorous safety standards for electrical enclosure applications and code compliance.
  • Wall Mount Design: Enables space-efficient installation with secure mounting capabilities for various applications.

Technical Specifications

  • Application: Current Transformer Enclosure
  • Back Panel: Back Panel Included
  • Brand Name: Milbank
  • Cable Entry: No Knockouts
  • Departent: Electrical
  • Door Or Cover: Single Door
  • Mounting Rack: Current Transformer Mounting Rack Provision
  • Nema Rating: Type 3R
  • Product Color: ANSI 61 Gray
  • Product Family Code: CTEN
  • Product Height: 54 IN
  • Product Length: 14 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Wall Mount
  • Product Size: 14L x 32Wx 54H
  • Product Type: Latch Cover
  • Standard: UL Listed
  • Unspsc Number: 39121319
  • Width: 32 IN

Professional Applications

  • Commercial Current Transformer Installations
  • Industrial Metering Applications
  • Utility Service Connections
  • Multi-Unit Properties
  • Professional Offices
  • Retail Establishments
  • Light Industrial Facilities

Why Choose Milbank Quality?

Milbank delivers trusted reliability with UL Listed safety certification and NEMA Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability and professional performance in demanding electrical applications.

Manufacturer Resources

Product Specs

Application:
Current Transformer Enclosure
Back Panel:
Back Panel Included
Brand Name:
Milbank
Cable Entry:
No Knockouts
Door Or Cover:
Single Door
Mounting Rack:
Current Transformer Mounting Rack Provision
Nema Rating:
Type 3R
Product Family Code:
CTEN
Product Height:
54 IN
Product Length:
14 IN
Product Size:
14L x 32Wx 54H
Product Type:
Latch Cover
Standards:
UL Listed
Unspsc Number:
39121319
Product Color:
ANSI 61 Grey
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Wall Mount
Product Width:
32 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U4769-O – Frequently Asked Questions

1) Can the Milbank U4769-O current transformer enclosure be installed outdoors?
Yes. The U4769-O carries a NEMA Type 3R rating, so it is built for outdoor wall mounting where rain, sleet and ice are a factor. Construction is G90 galvanized steel with a powder coat finish in ANSI 61 Grey, which is the usual utility and commercial metering gear color. It mounts to a wall, not a pad or pole.
2) What are the actual dimensions of the Milbank U4769-O CT enclosure, and will it fit my wall space?
The U4769-O measures 14L x 32W x 54H inches: 54 inches high, 32 inches wide, and 14 inches deep off the wall. Lay that out on the wall before you set anchors, and remember the single door swings out of the 32 inch width, so you need working clearance in front per your local code.
3) Does the Milbank U4769-O come with knockouts for conduit entry?
No knockouts. The U4769-O ships blank, so the installing electrician punches or hole-saws the entries where the service conduit actually lands. That is normal on CT cabinets, since conduit size and position vary by service, but it does mean budgeting time for the punch work and using weatherproof fittings on any top or side penetration to keep the 3R rating intact.
4) What is included inside the Milbank CT cabinet for mounting the current transformers?
Two things come with it. There is a provision for a current transformer mounting rack, and a wood back panel is included as a mounting surface for components. The CTs themselves, the rack hardware, and any metering wiring are separate.
5) Is this Milbank enclosure a meter socket or just the CT housing?
It is the current transformer housing only. The U4769-O is a CT cabinet, so it holds the transformers and their mounting rack; the meter itself sits in a separate meter socket fed from the cabinet. Order the socket and the CTs alongside it.
6) Is the Milbank U4769-O UL Listed for utility metering work?
The U4769-O is UL Listed as an electrical enclosure. Utilities also maintain their own approved-equipment lists for CT cabinets, so on a service that the POCO has to inspect and seal, check the enclosure against their accepted list before you set it.
7) How does the door on the Milbank U4769-O open and can it be sealed by the utility?
It is a single door with a lift-off front hasp. The hasp is what the utility runs its seal or a padlock through, and the lift-off design lets you take the door completely off during rough-in so you are not working around it while landing conduit and CTs.
8) What model number do I order for a 32 x 54 x 14 Milbank CT enclosure?
Milbank U4769-O is the catalog number for the 32 inch wide by 54 inch high by 14 inch deep NEMA 3R current transformer cabinet with the wood back panel. Milbank groups it under its CTEN current transformer enclosure family.
9) Will a NEMA 3R CT cabinet hold up in a coastal or washdown environment?
A Type 3R enclosure is rated against falling rain, sleet and ice, not against directed hose spray or heavy corrosive exposure. The U4769-O is G90 galvanized steel with powder coat, which handles normal outdoor commercial and light industrial service well. For washdown areas or aggressive salt exposure, spec a higher NEMA type or a stainless cabinet instead.
