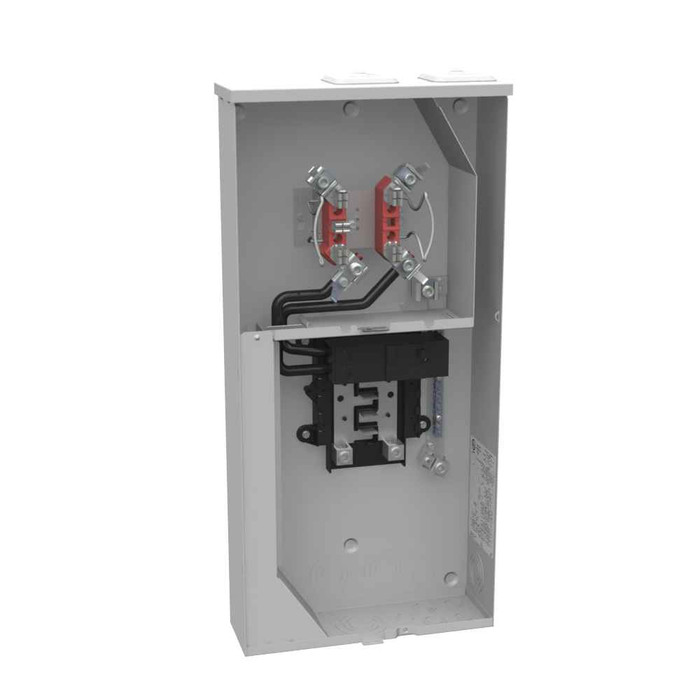

Milbank U5168-XTL-KK-5T Ringless Meter Main - 5 Terminal, Horn Bypass, 100–200 Amp, Load Center Combination

Milbank Ringless Meter Socket with Main Breaker and Load Center - 200 Amp, 5 Terminal, Horn Bypass, 1 Phase

(No reviews yet) Write a Review

Model: U5168-XTL-100-KK-5T

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,129.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Ringless Meter Socket with Main Breaker and Load Center

Professional electrical service entrance solution with integrated load center

The Milbank Ringless Meter Socket with Main Breaker and Load Center delivers reliable 200 amp continuous service for residential and commercial applications. This 1 phase unit features durable G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating for versatile indoor/outdoor installations. The integrated design combines meter socket, main breaker protection, and 8-circuit load center in a single surface-mount unit.

Professional Features & Benefits

  • 200 Amp Continuous Rating: Provides robust electrical service capacity for demanding residential and light commercial applications
  • 5 Terminal Configuration: Accommodates flexible wiring arrangements with horn bypass provision for enhanced service continuity
  • Type 3R Enclosure: Weather-resistant construction enables reliable outdoor installation in various environmental conditions
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability with professional powder coat finish
  • Integrated Load Center: Combines meter socket and 8-circuit distribution in one unit, reducing installation complexity and space requirements
  • UL Listed: Meets rigorous safety standards ensuring code compliance and professional installation confidence
  • Overhead/Underground Compatible: Versatile cable entry options accommodate various service entrance configurations

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main And Load Center
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Twin Small Closing Plates
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number Branch Circuits: 8
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 30 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14.125W x30H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14.125 IN

Professional Applications

  • Residential Service Entrance
  • Small Commercial Buildings
  • Multi-Unit Properties
  • Professional Offices
  • Retail Establishments
  • Light Industrial Facilities
  • Electrical Service Upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed safety certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability and corrosion resistance for professional electrical installations requiring dependable service entrance solutions.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Twin Small Closing Plates
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Number Branch Circuits:
8
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
30 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14.125W x30H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
14.125 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Twin Small Closing Plates
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
5
Product Group:
Metering & Service Entrance

Milbank U5168-XTL-100-KK-5T – Frequently Asked Questions

1) Will a Milbank U5168-XTL meter main work if my utility requires a 5 jaw socket?
Yes. The Milbank U5168-XTL ringless meter socket is built with 5 terminal jaws for single phase service at up to 240 volts AC, 60 Hz. Five jaw sockets are what most utilities specify for 120/240 volt single phase service where the neutral is carried through the socket. If your utility's meter spec calls for a 4 jaw or a 7 jaw socket, this is not the right can.
2) What amp sizes does the Milbank U5168-XTL meter main come in, and how many branch circuits do I get?
Three main breaker sizes: 100 amp, 150 amp, and 200 amp, all with horn bypass and 5 terminal jaws. The 100 amp unit carries a 10 branch circuit load center; the 150 amp and 200 amp units carry 8 branch circuits. So if you need the most spaces, the 100 amp version (U5168-XTL-100-KK-5T) actually gives you two more than the 200 amp (U5168-XTL-200-KK-5T). Pick the main for the service size the load calc requires, then plan the circuit count around what that breaker size brings.
3) How much wall space do I need for a Milbank U5168-XTL meter main, and can it go on the outside of a building?
The enclosure measures 4.5L x 14.125W x 30H inches and surface mounts, so allow a 30 inch tall by roughly 14-1/8 inch wide footprint on the wall with 4.5 inches of projection off the face. It is a Type 3R enclosure in G90 galvanized steel with a powder coat finish, which is the rainproof rating for outdoor wall mounting on a service entrance.
4) Do I still need a separate panel if I install a Milbank meter main with load center?
Not for a small service. The U5168-XTL combines the meter socket, one main breaker, and a branch load center in a single can, so meter, service disconnect, and branch distribution are all in the one enclosure with a ground bar included for equipment grounding. For a detached garage, an ADU, a well house, or a small retail space where 8 to 10 circuits covers the load, this is the whole service. If you need more than that, run a feeder from the main to a separate panel instead.
5) Can I use a Milbank U5168-XTL on a 3 phase or 208Y service?
No. It is a single phase socket rated up to 240 volts AC at 60 Hertz with 5 jaws. A 3 phase service needs a 7 jaw socket and a 3 phase rated meter main. Using this on 208Y/120 three phase will not meter correctly and will not accept the utility's meter.
6) Is the Milbank U5168-XTL set up for an overhead drop or an underground lateral?
Either one. Cable entry is rated for overhead or underground, and the can ships with twin small hub closing plates, so you knock out and fit a hub for a weatherhead riser on top, or leave the top closed and bring the lateral in from below. The hub itself is a separate order item sized to your conduit.
7) What does horn bypass mean on a Milbank meter socket, and do I need it?
Horn bypass lets the utility keep power flowing to the load while the meter is pulled, by closing a bypass across the line and load jaws. The U5168-XTL is a horn bypass socket, which many utilities require on 200 amp residential and light commercial service so meter changes do not drop the customer. Check your utility's meter spec sheet first, because some require bypass and some prohibit it, and the socket has to match.
8) Ringless versus ring type meter socket - which one does my utility want?
Ringless means the cover itself is the retaining device and the utility seals it, with no separate sealing ring around the meter. The U5168-XTL is a ringless can. Utilities standardize on one or the other in their service territory, and a ring type socket will not take a ringless cover or the utility's seal, so this is a call to the serving utility before you buy, not a preference.
9) Will one Milbank U5168-XTL meter main cover a duplex or two tenants?
No. It has a single meter position, so it meters one service only. A duplex, a two unit building, or any situation where each tenant needs their own billed meter requires a two position meter stack or two separate meter mains.
10) Does the Milbank U5168-XTL meter main include a GFCI receptacle for the HVAC outlet?
No receptacle is built in. The U5168-XTL carries zero receptacles, so if the job needs a service receptacle at the meter for HVAC or general maintenance use, that is a separate device and separate branch circuit off one of the load center spaces.
