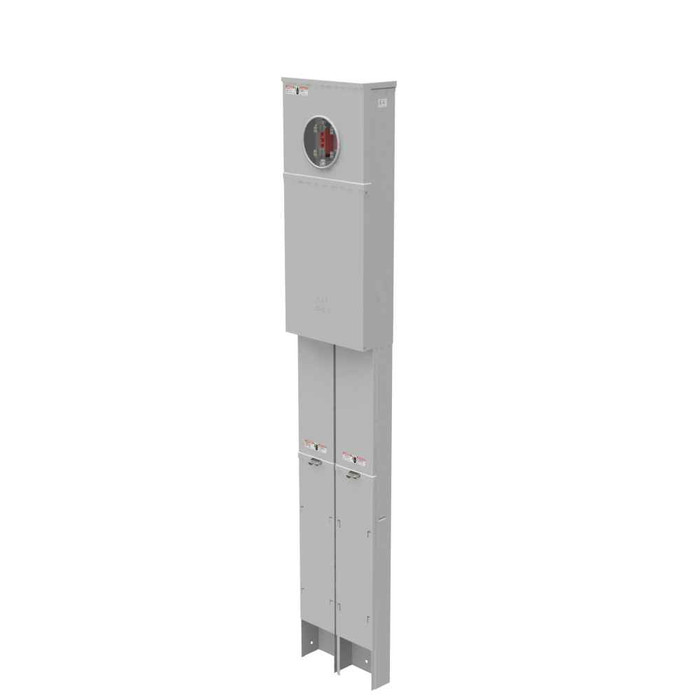

Milbank U5707-O-200S 4 Terminal Ring Type Plain Top 1-200 Ampere Main Breaker Single Pedestal Direct Bury Wired Temp To Final

Milbank 200A Single Phase Ring Type Meter Socket with Main Breaker and Load Center Pedestal Mount

(No reviews yet) Write a Review

Model: U5707-O-200S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,635.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Single Phase Ring Type Meter Socket with Main Breaker and Load Center Pedestal Mount

Professional electrical metering and distribution solution for underground service applications

The Milbank 200A Single Phase Ring Type Meter Socket delivers reliable electrical metering and distribution with integrated main breaker protection and load center functionality. This pedestal-mounted unit features G90 galvanized steel construction with powder coat finish for superior durability, 4 terminal ring type design for secure connections, and UL Listed Type 3R rating for outdoor applications. Designed for underground cable entry with 1 meter position and 4 branch circuits, this professional-grade unit provides comprehensive electrical service for residential and light commercial installations.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust electrical capacity for demanding residential and light commercial applications with reliable current handling.
  • G90 Galvanized Steel with Powder Coat Finish: Delivers exceptional corrosion resistance and long-term durability in outdoor environments.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and protection against weather conditions for reliable outdoor operation.
  • 4 Terminal Ring Type Design: Offers secure, reliable electrical connections with lay-in terminal configuration for professional installation.
  • Integrated Main Breaker and Load Center: Combines metering, main disconnect, and distribution in one compact unit for streamlined electrical service.
  • Underground Cable Entry: Designed specifically for direct bury applications with appropriate wire range accommodation up to 350 kcmil line side.
  • Single Phase 240V Operation: Optimized for standard residential and light commercial electrical service requirements at 60 Hertz frequency.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main And Load Center
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 4 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Number Branch Circuits: 4
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: UPMC
  • Product Height: 80 IN
  • Product Length: 5.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 5.5L x 14W x80H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14 IN

Professional Applications

  • Residential electrical service installations requiring integrated metering and distribution
  • Light commercial facilities needing reliable outdoor electrical service equipment
  • Multi-unit residential properties with individual metering requirements
  • New construction projects requiring UL Listed Type 3R rated electrical equipment
  • Underground electrical service applications with direct bury cable entry
  • Replacement installations for existing pedestal-mounted electrical service equipment

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection rating. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor environments, while the professional-grade glass polyester insulation and 4 barrel ground lug system provide safe, code-compliant electrical service for years of dependable operation.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Equipment Ground:
4 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
1 AWG - 300 kcmil
Main Breaker Size:
One 200 Ampere Main Breaker
Number Branch Circuits:
4
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
UPMC
Product Height:
80 IN
Product Length:
5.5 IN
Product Size:
5.5L x 14W x80H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Product Width:
14 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U5707-O-200S – Frequently Asked Questions

1) Will the Milbank U5707-O-200S pedestal meter socket work for an underground service lateral?
That is the only entry it is built for. The U5707-O-200S is an underground cable entry unit on a pedestal base, direct bury, with a plain top and no hub opening. If your service drop comes in overhead, this is the wrong unit and you need an overhead-entry socket with a hub or a hub closing plate opening in the top.
2) What size conductors can I land in the Milbank 200A pedestal meter socket, line and load side?
Line side terminals take 6 AWG through 350 kcmil, load side takes 1 AWG through 300 kcmil, all lay-in type so you drop the conductor in rather than fishing it through a barrel. That line side range covers the usual 4/0 aluminum and 2/0 copper 200 amp service laterals with room above them. Equipment grounding lands on a 4 barrel ground lug.
3) Does the Milbank U5707-O-200S include the main breaker and panel, or do I need a separate load center?
Everything is in the one enclosure. It ships as a meter socket with one 200 amp main breaker and an integral load center with 4 branch circuit spaces. You still buy the branch breakers separately, and 4 spaces is the ceiling, so if the site needs more than four circuits you feed a downstream subpanel from this unit rather than trying to add spaces.
4) Is this a 4 jaw or 5 jaw meter socket, and will my utility accept it?
Four terminal, ring type, single phase, rated up to 240 volts AC at 60 Hertz. Four jaw is the normal configuration for a 120/240V single phase self-contained residential or light commercial service. If your utility specifies a 5 jaw socket (common where they require a network or 120/208V single phase service off a three phase system), this one will not pass their inspection. Ring type versus ringless is also a utility call, so confirm your POCO wants ring type before ordering.
5) Is the Milbank 200A ring type meter socket approved for outdoor installation?
It is UL Listed and Type 3R rated, which is the standard rain-tight rating utilities expect for an outdoor service pedestal. The enclosure is G90 galvanized steel with a powder coat finish and glass polyester insulation behind the jaws.
6) Does the Milbank U5707-O-200S have a meter bypass for hot swapping the meter?
No bypass provision on this one. The meter has to be pulled with the service de-energized or under utility supervision. If your utility requires a lever or horn bypass for maintenance metering, specify a bypass-equipped socket instead, because there is no field kit that adds bypass to a no-bypass socket.
7) How tall is the Milbank pedestal meter socket and how much of it is above grade?
Overall the unit measures 5.5 inches deep by 14 inches wide by 80 inches high. That 80 inches is the full pedestal including the length that goes below grade on a direct bury installation, so the meter face ends up in the utility's usual readable window rather than 80 inches up in the air. Plan your trench depth and conduit stub-up to that footprint of 5.5 by 14 inches.
8) Can I use this Milbank socket as a temporary construction power pedestal and leave it as the permanent service?
Yes, that is exactly what a wired temp-to-final pedestal is for. You set the U5707-O-200S once, take construction power off the 4 branch circuit spaces behind the 200 amp main, and the same unit stays as the permanent metered service when the building is done. Note it has no receptacles factory-installed, so any GFCI outlets for the temp phase get added by the installer.
