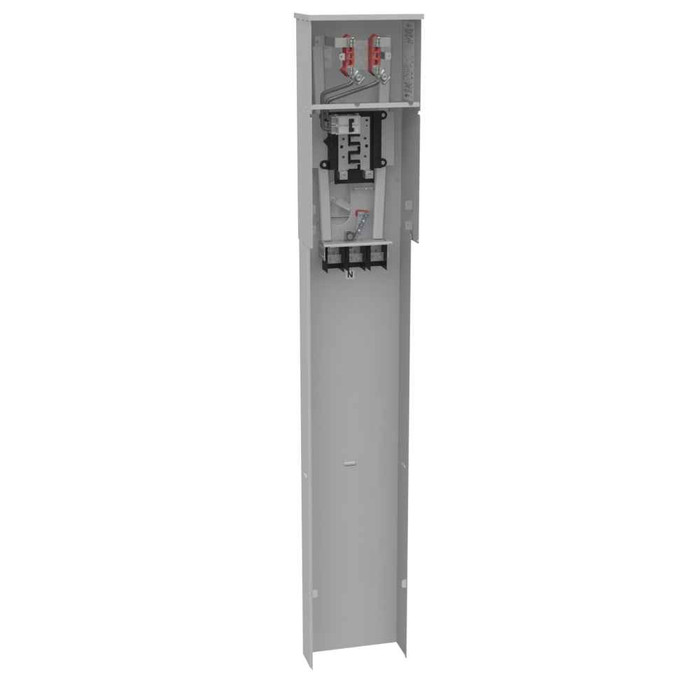

Milbank 200A Mobile Home Meter Socket Load Center with 100A Main Breaker 12 Circuit Single Phase Pedestal Mount

Milbank 200A Mobile Home Meter Socket Load Center with 100A Main Breaker 12 Circuit Single Phase Pedestal Mount

Professional Mobile Home Power Distribution Solution

The Milbank 200A Mobile Home Meter Socket Load Center delivers reliable single-phase power distribution specifically designed for mobile home applications. This pedestal-mounted unit combines a ring-type meter socket with integrated load center featuring a 100A main breaker and 12 circuit capacity. Built with G90 galvanized steel construction and powder coat finish, this UL Listed Type 3R unit provides durable outdoor performance with underground cable entry and ground lug equipment grounding.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides robust power capacity for comprehensive mobile home electrical service requirements.
• 100A Main Breaker Protection: Integrated overcurrent protection ensures safe operation and code compliance for residential applications.
• Single Phase 240V Operation: Compatible with standard residential voltage systems up to 240 volts alternating current at 60 hertz.
• G90 Galvanized Steel Construction: Powder coat finish over galvanized steel provides superior corrosion resistance for long-term outdoor durability.
• UL Listed Type 3R Rating: Certified for outdoor use with protection against rain, sleet, and ice formation in exterior installations.
• Underground Cable Entry: Direct bury wired design accommodates underground service connections for clean installations.
• 4 Terminal Ring Type Design: Double mechanical terminals provide secure connections for reliable power transfer and service continuity.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Mobile Home Power
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Main Breaker Size: One 100 Ampere Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 1
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: MHTS
• Product Height: 76.375 IN
• Product Length: 7 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Pedestal
• Product Size: 4.563L x 12W x76.375H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Double Mechanical
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 12 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Mobile Home Parks and Communities
• Manufactured Housing Installations
• Residential Service Upgrades
• Temporary Housing Facilities
• RV Parks and Campgrounds
• Remote Residential Properties

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R outdoor rating, ensuring dependable performance in demanding mobile home power applications. The robust G90 galvanized steel construction with powder coat finish provides long-term durability, while glass polyester insulation and double mechanical terminals ensure safe, reliable electrical connections for years of trouble-free service.
