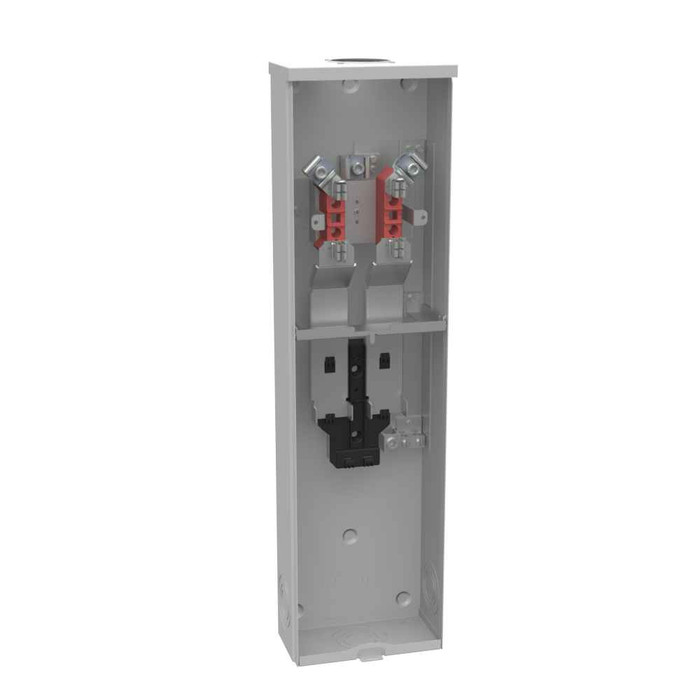

Milbank 200A Single Position Meter Socket - Ring Type & Ringless with Main Breaker Configuration

Professional electrical metering solution for residential and commercial applications

The Milbank 200A Single Position Meter Socket delivers reliable electrical metering with main breaker functionality in a durable G90 galvanized steel construction with powder coat finish. This 1 phase, 240V AC meter socket features 4 terminal configuration with ring type and ringless compatibility, overhead cable entry, and UL Listed Type 3R rating for versatile indoor and outdoor installations.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service requirements
  • 4 Terminal Configuration: Ensures secure meter connections with lay-in terminal design for reliable electrical contact
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in various environmental conditions
  • UL Listed Type 3R Rating: Certified for outdoor use with protection against rain, sleet, and ice formation
  • Ring Type & Ringless Compatibility: Accommodates multiple meter types for flexible installation requirements
  • Overhead Cable Entry: Designed for standard utility service connections with proper weather protection
  • Single Position Design: Compact 30" height configuration optimizes space while maintaining full functionality

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Branch Circuits: 1
  • Number Of Jaws: 4 Terminal
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 30 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 8W x30H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Residential electrical service installations
  • Small commercial and retail facilities
  • Multi-unit residential properties
  • Professional office buildings
  • Light industrial applications
  • Utility metering upgrades and replacements

Why Choose Milbank Quality?

Milbank meter sockets provide dependable electrical metering solutions with UL Listed certification and Type 3R outdoor rating. The G90 galvanized steel construction with powder coat finish ensures long-lasting performance in demanding environmental conditions, while the comprehensive wire range compatibility from 6 AWG to 350 kcmil accommodates various service requirements for professional electrical installations.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Number Branch Circuits:
1
Number Of Jaws:
4 Terminal
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
30 IN
Product Length:
4.125 IN
Product Size:
4.125L x 8W x30H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ring Type Meter Socket
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U5852-RL-150 – Frequently Asked Questions

1) Will the Milbank U5852 meter socket work with my utility's ringless meter cover, or do I need the ring type?
The U5852 socket body accepts both ring type and ringless meter covers, so it suits either utility requirement. Where the choice gets made is on the option you order: U5852-RL, U5852-RL-100, U5852-RL-150 and U5852-RL-200 are the ring type versions, while U5852-DL-100 is the ringless version with a 2 inch hub and a 100A main breaker. Utilities are specific about this, so pick the configuration your serving utility has approved for the address.
2) What is the difference between the Milbank U5852-RL and the U5852-RL-100, -150 and -200?
U5852-RL ships with a main breaker provision only, meaning the space and mounting for a breaker are there but you supply and install the breaker. The -100, -150 and -200 arrive with a factory main breaker already fitted at 100A, 150A and 200A respectively. The -200 is also configured for overhead or underground service. If you are matching an existing service size, the suffix is the number that matters on the order.
3) Can this Milbank meter socket be mounted outside on the side of a house?
Yes. The U5852 is UL Listed and carries a Type 3R enclosure rating, which is the outdoor rating for rain, sleet and ice. The enclosure is G90 galvanized steel with a powder coat finish, and it surface mounts flat to a wall or meter board.
4) What size service conductors will land in the Milbank U5852 meter socket?
The line side terminals take 6 AWG up to 350 kcmil, which covers everything from a small 100A service run up through a full 200A copper or aluminum service entrance. They are lay-in type terminals, so the conductor drops into the lug rather than being threaded through. Equipment grounding is handled by a 2 barrel ground lug.
5) Is the Milbank U5852 a 4 jaw socket, and will it fit a standard 200A residential single phase meter?
It is a 4 terminal (4 jaw) socket, single position, rated 1 phase, up to 240 volts AC at 60 Hz, 200 continuous amperes. That is the standard arrangement for a single phase 120/240V residential or light commercial service. A 4 jaw socket will not accept a network or three phase meter, which needs 5, 7 or more jaws.
6) Does the Milbank U5852 have a meter bypass, and does that matter for my utility?
No bypass. The U5852 is a no-bypass socket, so power has to be dropped at the source to pull or set the meter. Plenty of utilities require a lever or horn bypass on 200A residential sockets for safe meter changes, so confirm your utility's spec sheet before you order this one, because a missing bypass is a common reason an install fails inspection or gets refused at meter set.
7) How much wall space do I need for the Milbank U5852 meter socket?
Plan on 30 inches of height, 8 inches of width and 4.125 inches of depth off the wall, as given by the 4.125L x 8W x 30H size. The 30 inch height is the one to check first when you are fitting between a service head and grade, or working under a soffit.
8) Is this Milbank socket set up for overhead service or underground?
The U5852 is configured for overhead cable entry as standard, which is the usual arrangement for a service drop coming to a weatherhead above the meter. The U5852-RL-200 option is listed for overhead or underground service. The ringless U5852-DL-100 comes with a 2 inch hub, which is what you use to land overhead conduit or a raintight hub connection at the top.
9) Can I feed a subpanel or more than one circuit out of this Milbank meter socket with main?
No. The U5852 is a meter socket with main, carrying a single branch circuit and no receptacles. It gives you one protected output to feed a downstream panel, not a distribution section with multiple breaker spaces. If you need a combination meter and load center with several branch spaces, that is a different Milbank product line.
10) I am replacing an old meter socket on a 100A service. Can I use the Milbank U5852 even though it is a 200A can?
Yes, and it is common practice. The socket itself is rated 200 continuous amperes, which is a maximum, not a requirement. Order U5852-RL-100 (ring type) or U5852-DL-100 (ringless, 2 inch hub) to get a 100A main breaker factory installed and you keep the service at 100A while leaving the can sized for a later upgrade. Line side lugs take down to 6 AWG, so small service conductors still land properly.
11) How does the Milbank U5852 hold up in coastal or humid conditions?
The enclosure is G90 galvanized steel with a powder coat finish over it, which is the standard corrosion package for exterior meter equipment, and the Type 3R rating covers rain, sleet and ice. Internally, the jaw assembly is insulated with glass polyester. For a property manager standardizing a fleet of exterior meter sockets, that is a reasonable spec for general outdoor exposure.
